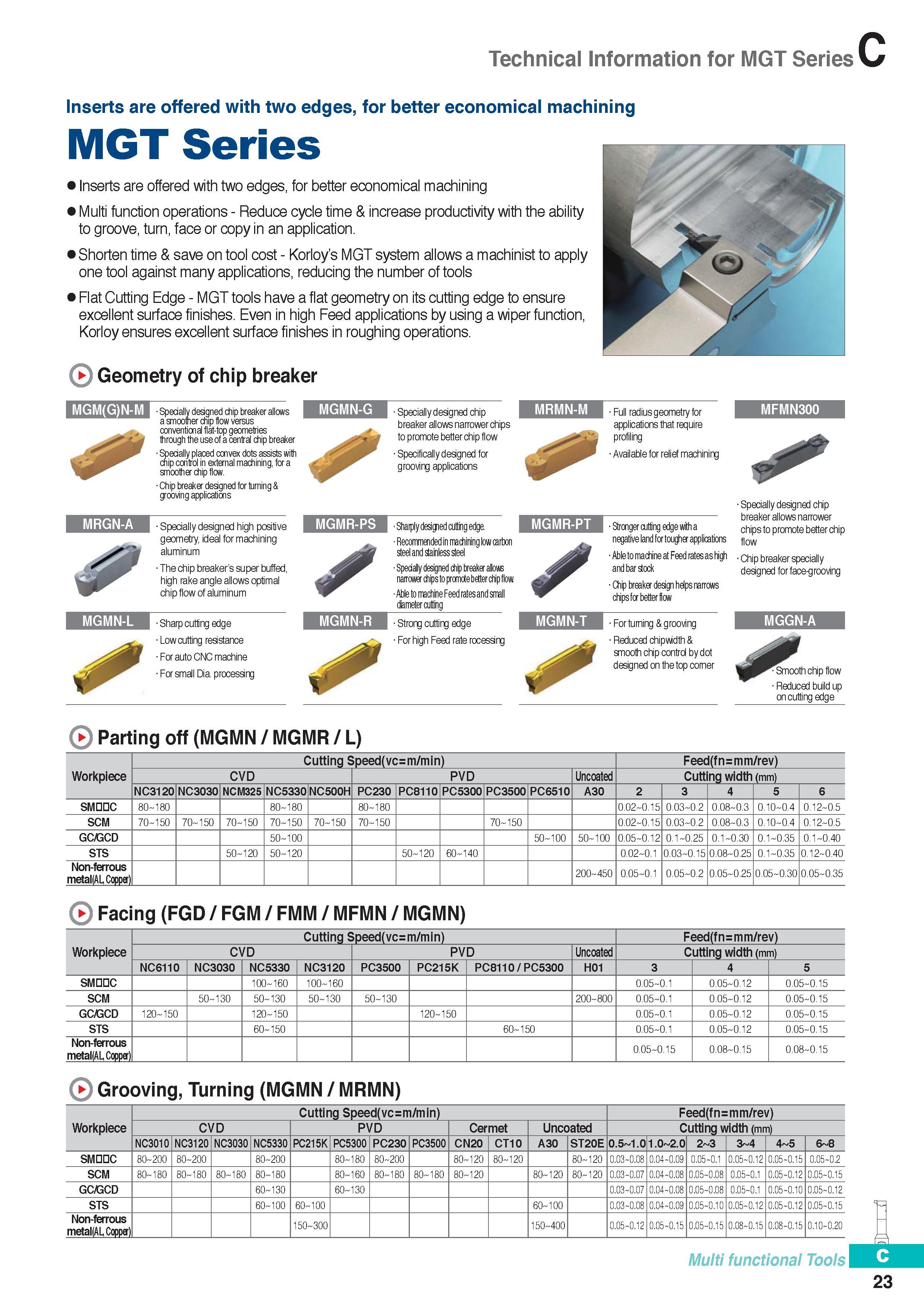

Inserts Korloy MGT Series are offered with two edges, for better economical machining Inserts are offered with two edges, for better economical machining Multi function operations - Reduce cycle time & increase productivity with the ability to groove, turn, face or copy in an application. Shorten time & save on tool cost - Korloy’s MGT system allows a machinist to apply one tool against many applications, reducing the number of tools Flat Cutting Edge - MGT tools have a flat geometry on its cutting edge to ensure excellent surface finishes. Even in high Feed applications by using a wiper function, Korloy ensures excellent surface finishes in roughing operations. Geometry of chip breaker MGM(G)N-M MRGN-A MGMN-L Specially designed chip breaker allows a smoother chip flow versus conventional flat-top geometries through the use of a central chip breaker Specially placed convex dots assists with chip control in external machining, for a smoother chip flow. Chip breaker designed for turning & grooving applications Specially designed high positive geometry, ideal for machining aluminum The chip breaker’s super buffed, high rake angle allows optimal chip flow of aluminum Sharp cutting edge Low cutting resistance For auto CNC machine For small Dia. processing MGMN-G MGMR-PS MGMN-R Specially designed chip breaker allows narrower chips to promote better chip flow Specifically designed for grooving applications Sharply designed cutting edge Recommended in machining low carbon MRMN-M Specially designed chip breaker allows narrower chips to promote better chip flow Able to machine Feed rates and small Strong cutting edge For high Feed rate rocessing MGMR-PT / MGMN-T Full radius geometry for applications that require profiling Available for relief machining Stronger cutting edge with a negative land for tougher applications Able to machine at Feed rates as high and bar stock Chip breaker design helps narrows chips for better flow For turning & grooving Reduced chipwdth & smooth chip control by dot designed on the top corner MFMN300 Specially designed chip breaker allows narrower chips to promote better chip flow Chip breaker specially designed for face-grooving MGGN-A Smooth chip flow Reduced build up on cutting edge Parting off (MGMN / MGMR / L) Workpiece Cutting Speed(vc=m/min) Feed(fn=mm/rev) CVD PVD Uncoated Cutting width (mm) NC3120 NC3030 NCM325 NC5330 NC500H PC230 PC8110 PC5300 PC3500 PC6510 A30 2 3 4 5 6 SMDDC 80 180 80 180 80 180 0.02 0.15 0.03 0.2 0.08 0.3 0.10 0.4 0.12 0.5 SCM 70 150 70 150 70 150 70 150 70 150 70 150 0 5 0 0.02 0.15 0.03 0.2 0.08 0.3 0.10 0.4 0.12 0.5 GC/GCD 50 100 50 100 50 100 0.05 0.12 0.1 0.25 0.1 0.30 0.1 0.35 0.1 0.40 STS 50 120 50 120 50 120 60 140 0.02 0.1 0.03 0.15 0.08 0.25 0.1 0.35 0.12 0.40 Non-ferrous metal(AL Copper) 200 450 0.05 0.1 0.05 0.2 0.05 0.25 0.05 0.30 0.05 0.35 Facing (FGD / FGM / FMM / MFMN / MGMN) Workpiece Cutting Speed(vc=m/min) Feed(fn=mm/rev) CVD PVD Uncoated Cutting width (mm) NC6110 NC3030 NC5330 NC3120 PC3500 PC215K PC8110 / PC5300 H01 3 4 5 SMDDC 0 6 0 0 100 160 0.05 0.1 0.05 0.12 0.05 0.15 SCM 50 130 50 130 50 130 50 130 200 800 0.05 0.1 0.05 0.12 0.05 0.15 GC/GCD 0 5 0 2 0 5 0 2 120 150 0.05 0.1 0.05 0.12 0.05 0.15 STS 60 150 60 150 0.05 0.1 0.05 0.12 0.05 0.15 Non-ferrous metal(AL Copper) 0.05 0.15 0.08 0.15 0.08 0.15 Grooving, Turning (MGMN / MRMN) Workpiece Cutting Speed(vc=m/min) Feed(fn=mm/rev) CVD PVD Cermet Uncoated Cutting width (mm) NC3010 NC3120 NC3030 NC5330 PC215K PC5300 PC230 PC3500 CN20 CT10 A30 ST20E 0.5 1.0 1.0 2.0 2 3 3 4 4 5 6 8 SMDDC 80 200 80 200 80 200 8 o 8 o 80 200 80 120 80 120 80 120 0.03 0.08 0.04 0.09 0.05 0.1 0.05 0.12 0.05 0.15 0.05 0.2 SCM 0 8 1 0 8 0 8 1 0 8 8 O 8 o 8 o 8 o 80 160 8 o 8 o 8 o 8 o 80 120 80 120 80 120 0.03 0.07 0.04 0.08 0.05 0.08 0.05 0.1 0.05 0.12 0.05 0.15 GC/GCD 60 130 60 130 0.03 0.07 0.04 0.08 0.05 0.08 0.05 0.1 0.05 0.10 0.05 0.12 STS 60 100 60 100 60 100 0.03 0.08 0.04 0.09 0.05 0.10 0.05 0.12 0.05 0.12 0.05 0.15 Non-ferrous metal(AL Copper) 150 300 150 400 0.05 0.12 0.05 0.15 0.05 0.15 0.08 0.15 0.08 0.15 0.10-0.2C Multi functional Tools 23 MGT Series
