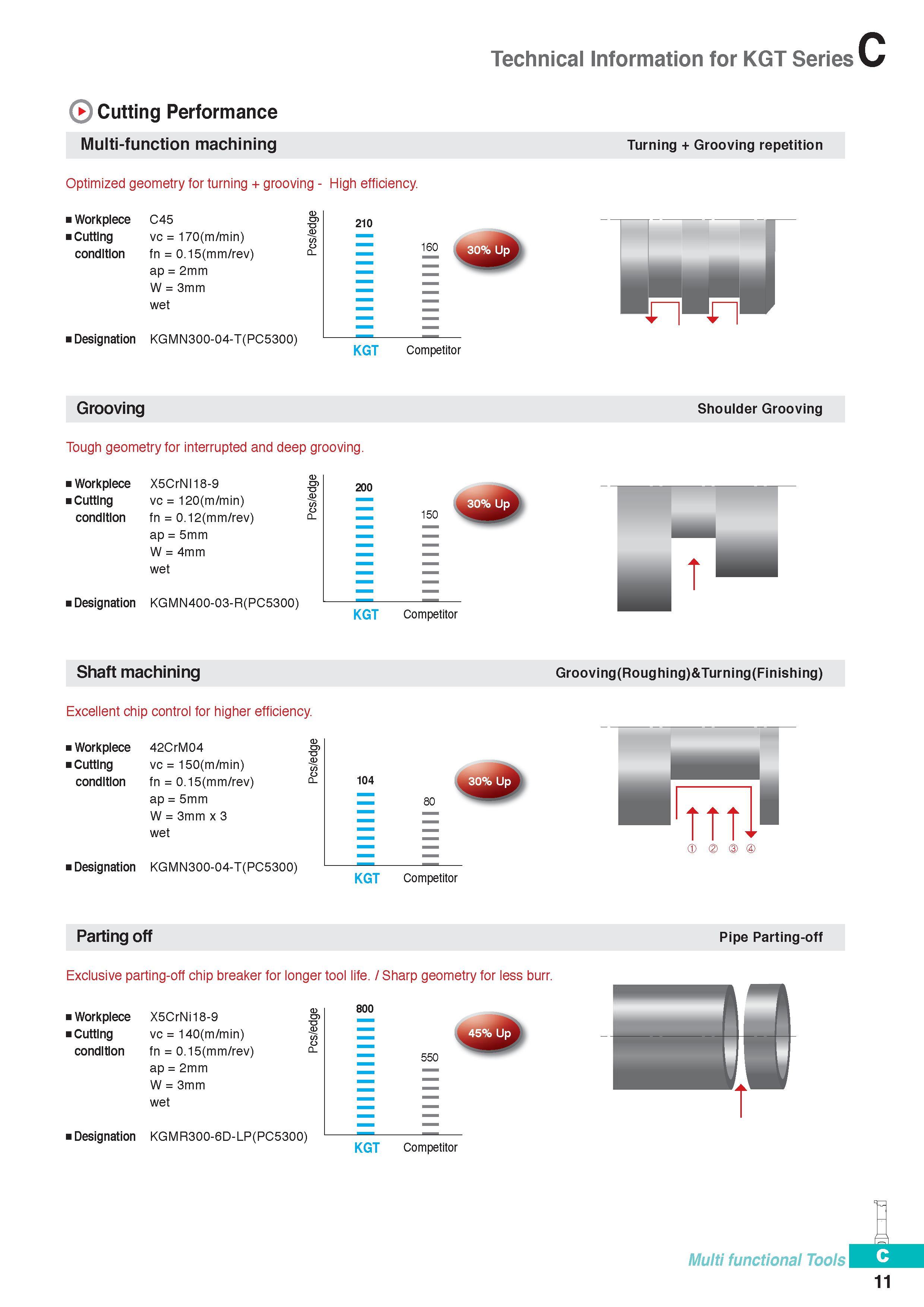

Cutting Performance Technical Information for KGT Series Multi-function machining Turning + Grooving repetition Optimized geometry for turning + grooving - High efficiency. i Workpiece C45 i Cutting vc = 170(m/min) condition fn = 0.15(mm/rev) ap = 2mm W = 3mm wet i Designation KGMN300-04-T(PC5300) 210 KGT 160 30% Up Competitor Grooving Shoulder Grooving Tough geometry for interrupted and deep grooving. i Workpiece X5CrNI18-9 i Cutting vc = 120(m/min) condition fn = 0.12(mm/rev) ap = 5mm W = 4mm wet i Designation KGMN400-03-R(PC5300) 200 150 30% Up KGT Competitor Shaft machining Excellent chip control for higher efficiency. Workpiece 42CrM04 Cutting vc = 150(m/min) condition fn = 0.15(mm/rev) ap = 5mm W = 3mm x 3 wet Designation KGMN300-04-T(PC5300) 104 Grooving(Roughing)&Turning(Finishing) 80 30% Up KGT Competitor Parting off Exclusive parting-off chip breaker for longer tool life. / Sharp geometry for less burr. Pipe Parting-off i Workpiece X5CrNi18-9 i Cutting vc = 140(m/min) 7 condition fn = 0.15(mm/rev) c ap = 2mm W = 3mm wet 1 Designation KGMR300-6D-LP(PC5300) 800 550 45% Up KGT Competitor Multi functional Tools mu 11
