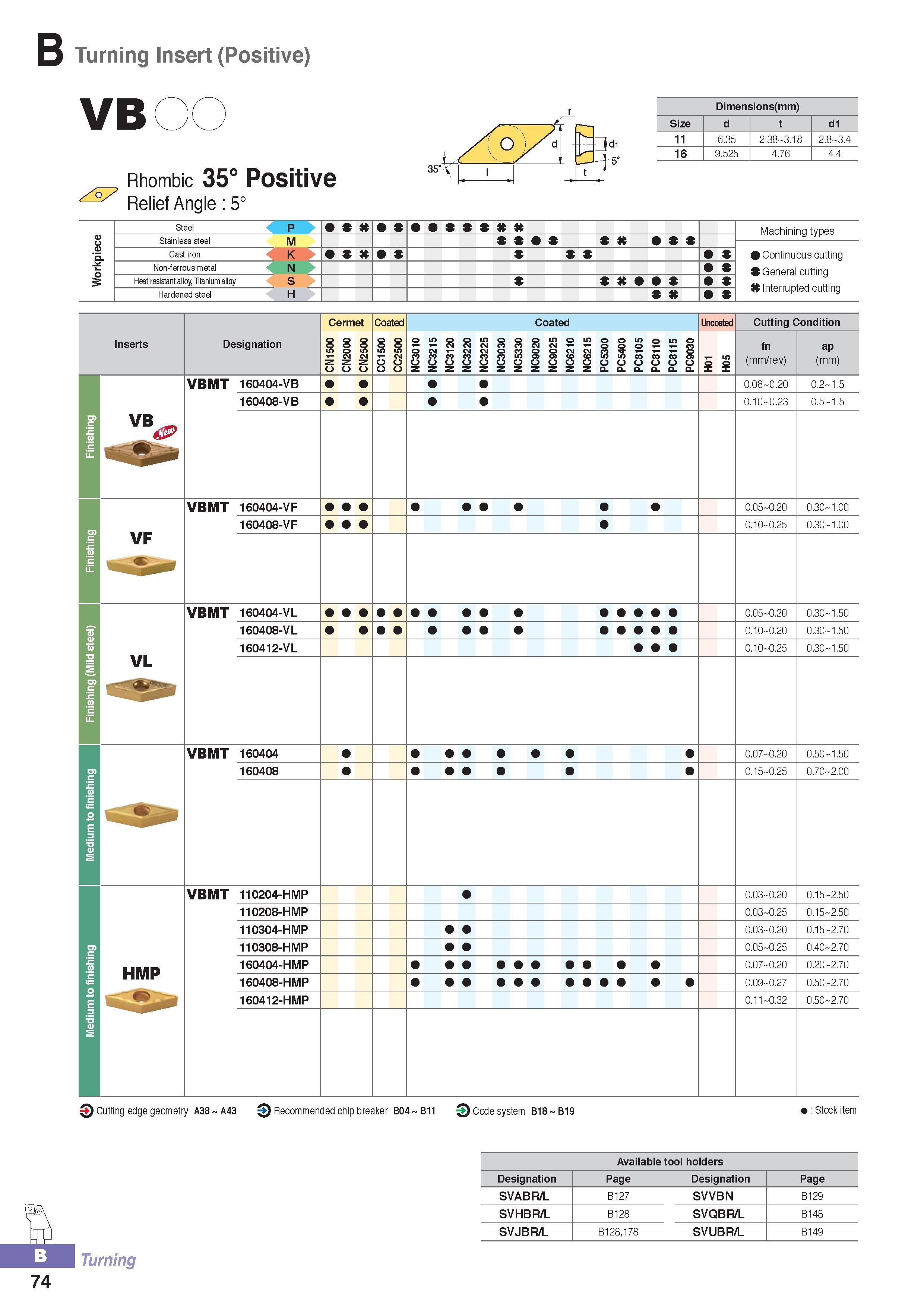

Turning Insert (Positive) VB Rhombic 35° Positive Relief Angle 5° 35'- X°; ) a d i Dimensions (mm) Size d d1 11 6.35 2.38-3.18 2.8-3.4 16 9.525 4.76 4.4 Workpiece Steel P Machining types Continuous cutting General cutting Interrupted cutting Stainless steel M > t Cast iron K Non-ferrous metal N Heat resistant alloy, Titanium alloy S Hardened steel H Inserts Designation Cermet io o m T- z z z o Coated W W 1- CJ Coated Uncoated Cutting Condition 0U)00U)000U)0U)00U)0U)0 1-1-CJCJCJCOCOCJCJi-i-OOO t-CO 0CJi-CJCJ0M00CJCJ tFi-i-i-0 COCOCOCOCOCOU)aa(D(DU)U) OOa O ZZZZZZZZZZZQ.Q.Q.Q.Q.Q. H01 H05 fn (mm/rev) ap (mm) Finishing VB VBMT 160404-VB 0.08-0.20 0.2-1.5 160408-VB 0.10-0.23 0. 5 1 5 g in hi is ‘c Fi VF VBMT 160404-VF 0.05-0.20 0.30-1.00 160408-VF 0.10-0.25 0.30-1.00 Finishing (Mild steel) VL VBMT 160404-VL 0.05-0.20 0.30-1.50 160408-VL 0.10-0.20 0.30-1.50 160412-VL 0.10-0.25 0.30-1.50 Medium to finishing - VBMT 160404 0.07-0.20 0.50-1.50 160408 0.15-0.25 0.70-2.00 g in hi is ini to i iu di e M HMP VBMT 110204-HMP 0.03-0.20 0.15-2.50 110208-HMP 0.03-0.25 0.15-2.50 110304-HMP 0.03-0.20 0.15-2.70 110308-HMP 0.05-0.25 0.40-2.70 160404-HMP 0.07-0.20 0.20-2.70 160408-HMP 0.09-0.27 0.50-2.70 160412-HMP 0.11-0.32 0.50-2.70 Cutting edge geometry A38 A43 3 Recommended chip breaker B04 B11 Code system B18 B19 Stock item Turning 74 Available tool holders Designation Page Designation Page SVABR/L B127 SVVBN B129 SVHBR/L B128 SVQBR/L B148 SVJBR/L B128,178 SVUBR/L B149
