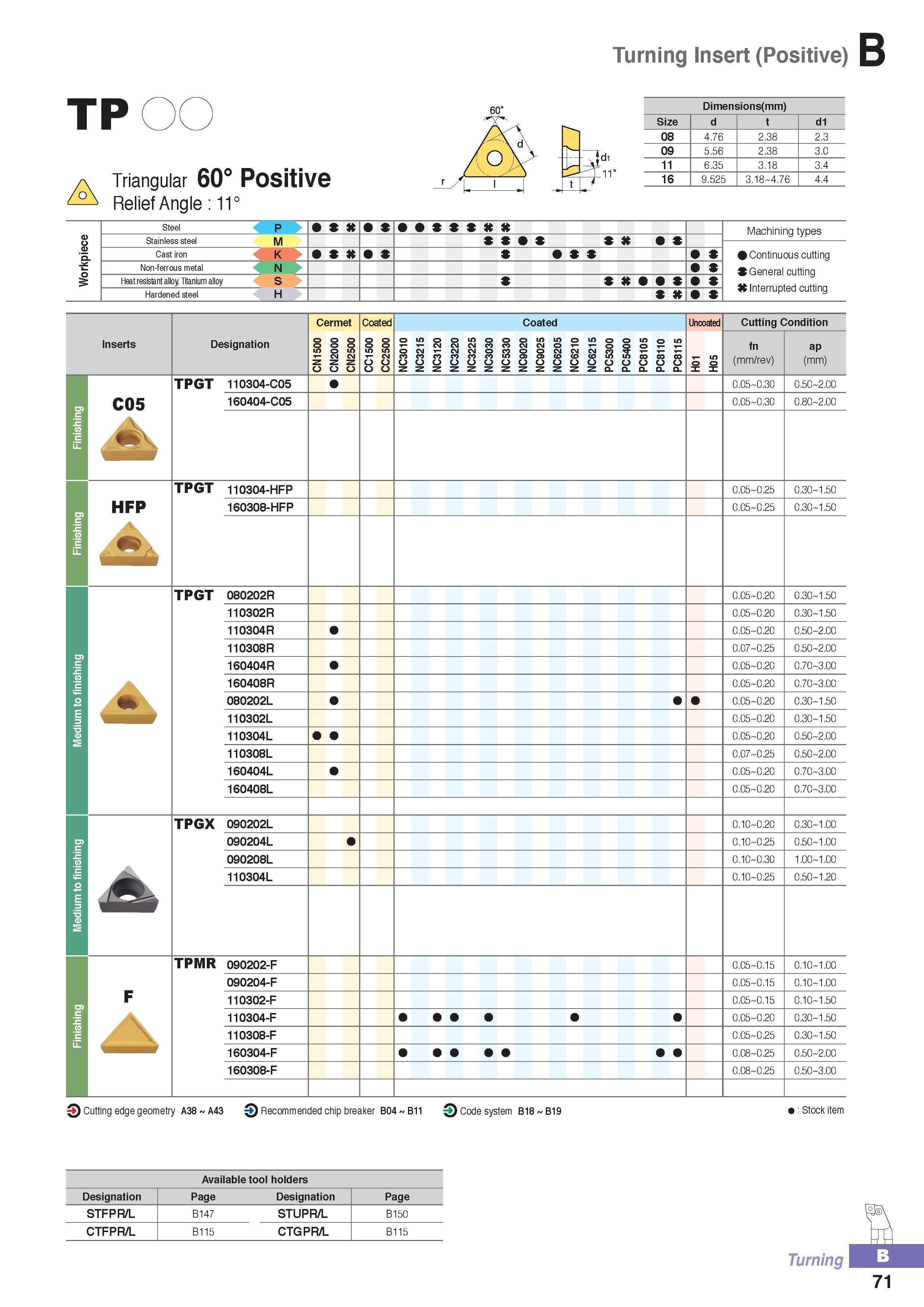

Turning Insert (Positive) TP Triangular 60° Positive Relief Angle 11° Dimensions (mm) Size d d1 08 4.76 2.38 2.3 09 5.56 2.38 3.0 11 6.35 3.18 3.4 16 9.525 3.18 4.76 4.4 Steel p K Stainless steel M Cast iron K Non-ferrous metal N Heat resistant alloy Titanium alloy S Hardened steel H Machining types Continuous cutting General cutting Interrupted cutting Inserts Designation Cermet mom Coated CC CC Coated Uncoated Cutting Condition NC3010 NC3215 NC3120 NC3220 NC3225 NC3030 NC5330 NC9020 NC9025 NC6205 NC6210 NC6215 PC5300 PC5400 PC8105 PC8110 PC8115 H01 H05 fn (mm/rev) ap (mm) C05 k IMW TPGT 110304-C05 0.05 0.30 0.50 2.00 160404-C05 0.05 0.30 0.80 2.00 HFP TPGT 110304-HFP 0.05 0.25 0.30 1.50 160308-HFP 0.05 0.25 0.30 1.50 v TPGT 080202R 0.05 0.20 0.30 1.50 110302R 0.05 0.20 0.30 1.50 110304R 0.05 0.20 0.50 2.00 110308R 0.07 0.25 0.50 2.00 160404R 0.05 0.20 0.70 3.00 160408R 0.05 0.20 0.70 3.00 080202L 0.05 0.20 0.30 1.50 110302L 0.05 0.20 0.30 1.50 110304L 0.05 0.20 0.50 2.00 110308L 0.07 0.25 0.50 2.00 160404L 0.05 0.20 0.70 3.00 160408L 0.05 0.20 0.70 3.00 A TPGX 090202L 0.10 0.20 0.30 1.00 090204L 0.10 0.25 0.50 1.00 090208L 0.10 0.30 1.00 1.00 110304L 0.10 0.25 0.50 1.20 F TPMR 090202-F 0.05 0.15 0.10 1.00 090204-F 0.05 0.15 0.10 1.00 110302-F 0.05 0.15 0.10 1.50 110304-F 0.05 0.20 0.30 1.50 110308-F 0.05 0.25 0.30 1.50 160304-F 0.08 0.25 0.50 2.00 160308-F 0.08 0.25 0.50 3.00 3 Cutting edge geometry A38 A43 3 Recommended chip breaker B04 B11 3 Code system B18 B19 Stock item Available tool holders Designation Page Designation Page STFPR/L B147 STUPR/L B150 CTFPR/L B115 CTGPR/L B115 Turning 71
