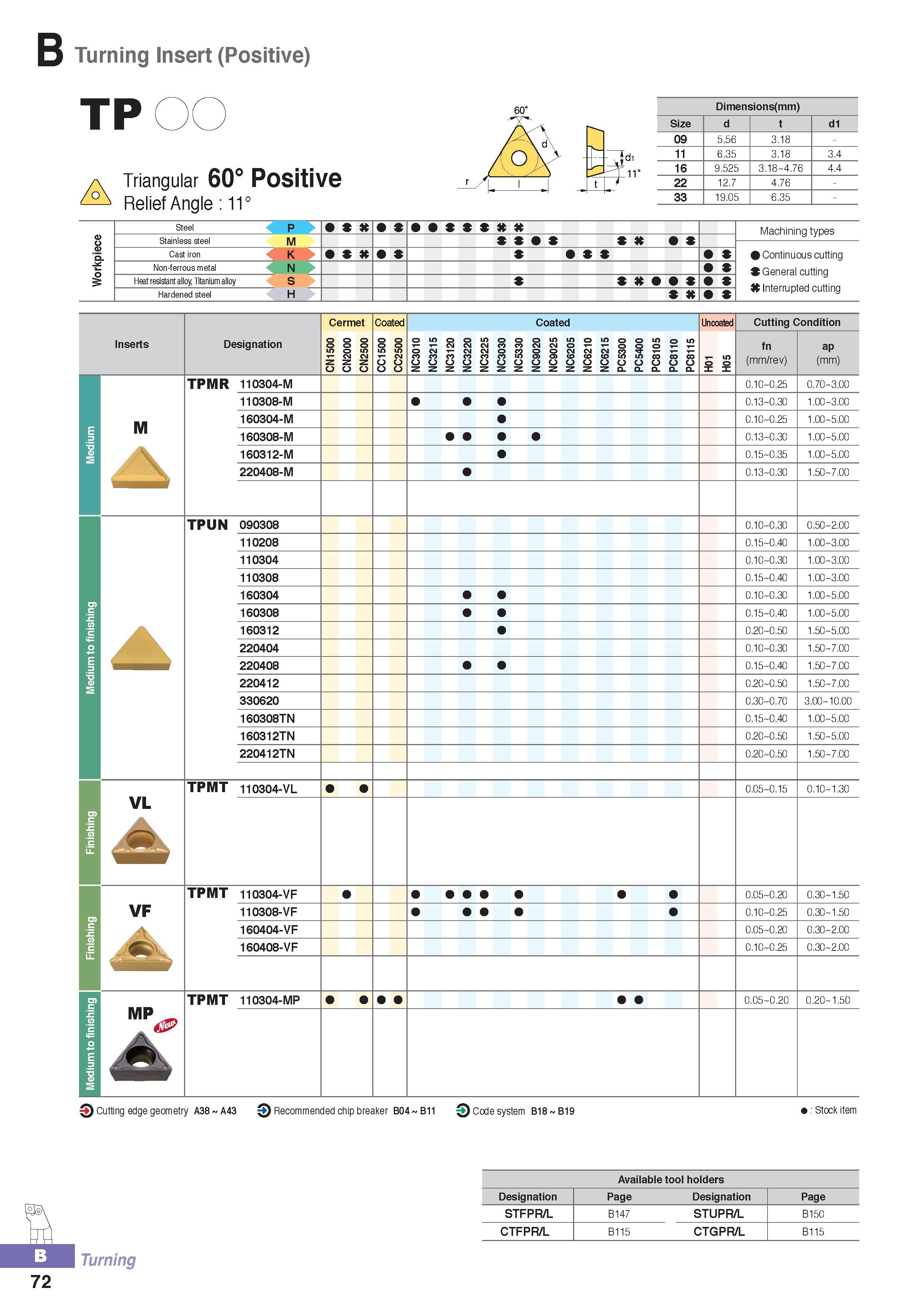

Turning Insert (Positive) TP Triangular 60° Relief Angle 1T Positive Dimensions (mm) Size d d1 09 5.56 3.18 - 11 6.35 3.18 3.4 16 9.525 3.18 4.76 4.4 22 12.7 4.76 - 33 19.05 6.35 - Steel p Machining types Stainless steel M Cast iron K Continuous cutting Non-ferrous metal N Heat resistant alloy, Titanium alloy S Hardened steel H X Inlenupled culling Inserts Designation Cermet Coated Coated Uncoated Cutting Condition CN1500 CN2000 CN2500 CC1500 CC2500 NC3010 NC3215 NC3120 NC3220 NC3225 NC3030 NC5330 NC9020 NC9025 NC6205 NC6210 NC6215 PC5300 PC5400 PC8105 PC8110 PC8115 H01 H05 fn (mm/rev) ap (mm) M TPMR 110304-M 0.10 0.25 0.70 3.00 110308-M 0.13 0.30 1.00 3.00 160304-M 0.10 0.25 1.00 5.00 160308-M 0.13 0.30 1.00 5.00 160312-M 0.15 0.35 1.00 5.00 220408-M 0.13 0.30 1.50 7.00 TPUN 090308 0.10 0.30 0.50 2.00 110208 0.15 0.40 1.00 3.00 110304 0.10 0.30 1.00 3.00 110308 0.15 0.40 1.00 3.00 160304 0.10 0.30 1.00 5.00 160308 0.15 0.40 1.00 5.00 160312 0.20 0.50 1.50 5.00 220404 0.10 0.30 1.50 7.00 220408 0.15 0.40 1.50 7.00 220412 0.20 0.50 1.50 7.00 330620 0.30 0.70 3.00 10.00 160308TN 0.15 0.40 1.00 5.00 160312TN 0.20 0.50 1.50 5.00 220412TN 0.20 0.50 1.50 7.00 VL TPMT 110304-VL 0.05 0.15 0.10 1.30 VF TPMT 110304-VF 0.05 0.20 0.30 1.50 110308-VF 0.10 0.25 0.30 1.50 160404-VF 0.05 0.20 0.30 2.00 160408-VF 0.10 0.25 0.30 2.00 MP TPMT 110304-MP 0.05 0.20 0.20 1.50 Cutting edge geometry A38 A43 3 Recommended chip breaker B04 B11 Code system B18 B19 Stock item Turning 72 Available tool holders Designation Page Designation Page STFPR/L B147 STUPR/L B150 CTFPR/L B115 CTGPR/L B115
