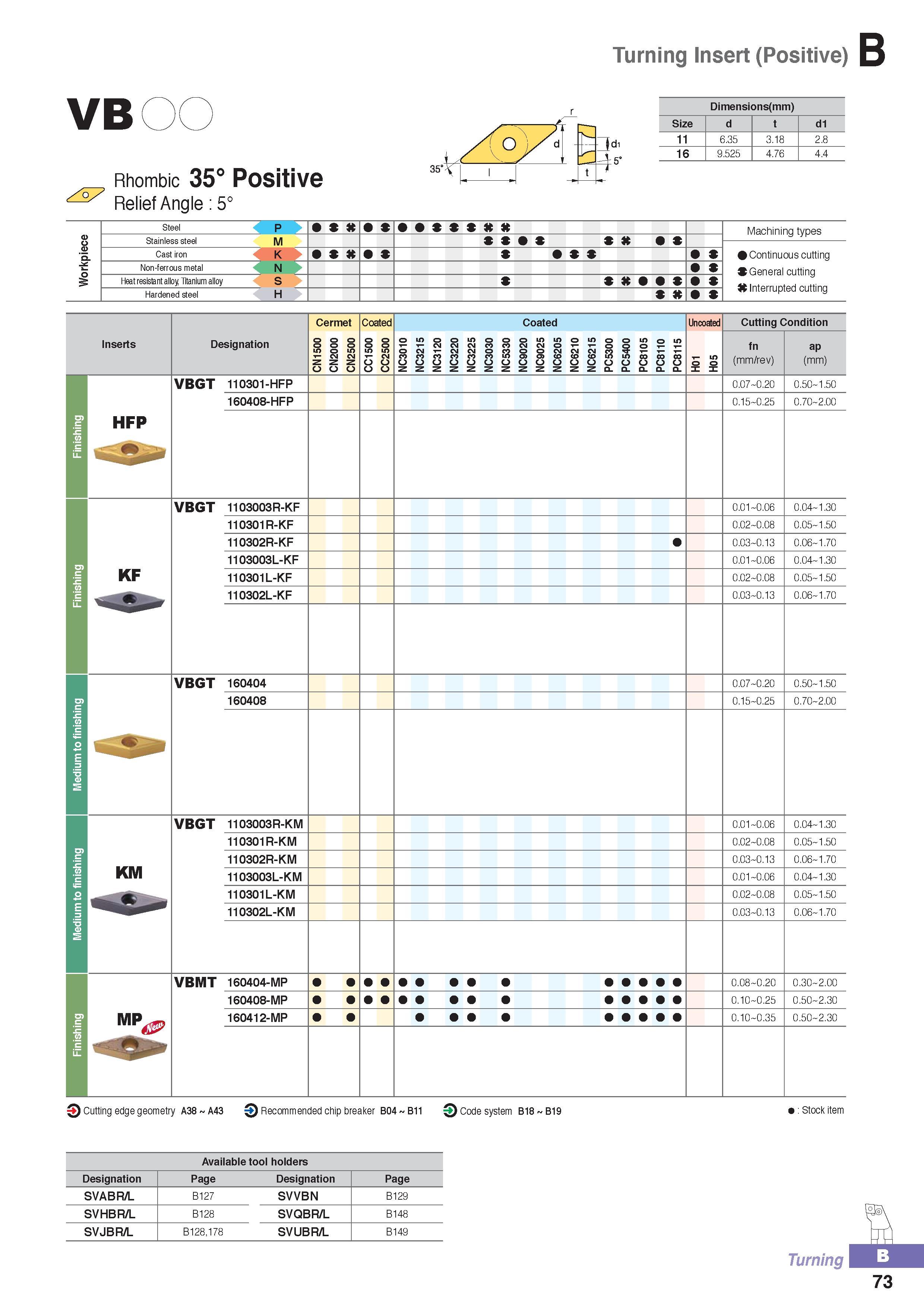

Turning Insert (Positive) VB Rhombic 35° Positive Relief Angle 5° Dimensions (mm) Size d d1 11 6.35 3.18 2.8 16 9.525 4.76 4.4 Workpiece Steel P Machining types Continuous cutting General cutting Interrupted cutting Stainless steel M Cast iron K Non-ferrous metal N Heat resistant alloy Titanium alloy S Hardened steel H Inserts Designation Cermet lo o lo pi z z z o Coated LO LO 1- CJ CC CC Coated Uncoated Cutting Condition NC3010 NC3215 NC3120 NC3220 NC3225 NC3030 NC5330 NC9020 NC9025 NC6205 NC6210 NC6215 PC5300 PC5400 PC8105 PC8110 PC8115 H01 H05 fn (mm/rev) ap (mm) Finishing HFP VBGT 110301-HFP 0.07 0.20 0.50 1.50 160408-HFP 0.15 0.25 0.70 2.00 g in hi is ini KF VBGT 1103003R-KF 0.01 0.06 0.04 1.30 110301R-KF 0.02 0.08 0.05 1.50 110302R-KF 0.03 0.13 0.06 1.70 1103003L-KF 0.01 0.06 0.04 1.30 110301L-KF 0.02 0.08 0.05 1.50 110302L-KF 0.03 0.13 0.06 1.70 F g in hi is C 0 1 3 T3 O m VBGT 160404 0.07 0.20 0.50 1.50 160408 0.15 0.25 0.70 2.00 g in hi is ini 0 1 3 T3 O m KM VBGT 1103003R-KM 0.01 0.06 0.04 1.30 110301R-KM 0.02 0.08 0.05 1.50 110302R-KM 0.03 0.13 0.06 1.70 1103003L-KM 0.01 0.06 0.04 1.30 110301L-KM 0.02 0.08 0.05 1.50 110302L-KM 0.03 0.13 0.06 1.70 g in hi is ini Fi mp
