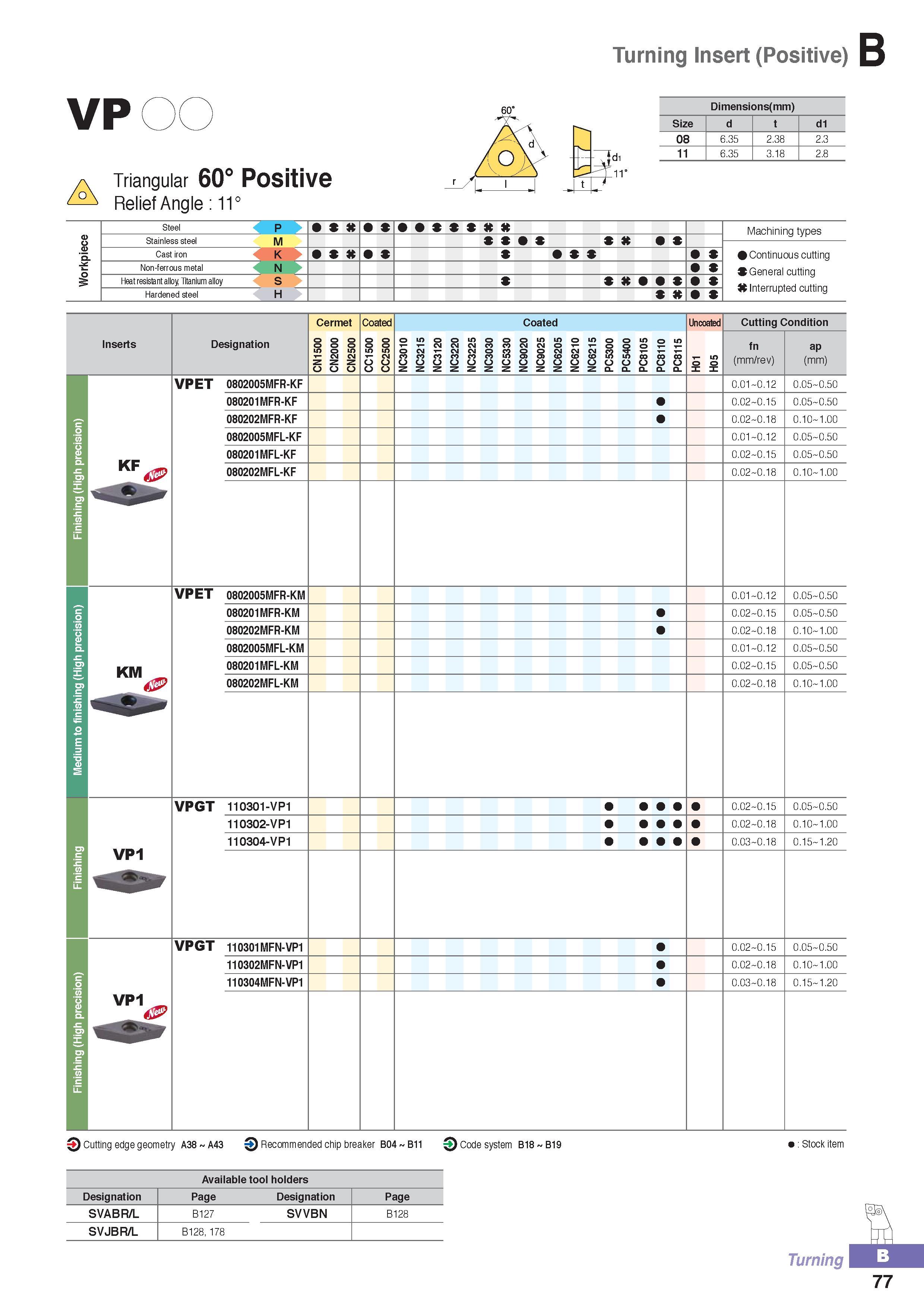

Turning Insert (Positive) VP Triangular 60° Positive Relief Angle 11° -E Dimensions (mm) Size d d1 08 6.35 2.38 2.3 11 6.35 3.18 2.8 Steel p K Machining types Stainless steel M Cast iron K K Continuous cutting Non-ferrous metal N V Heat resistant alloy Titanium alloy S Hardened steel H Inleiiupled culling Inserts Designation Cermet Coated Coated Uncoated Cutting Condition CN1500 CN2000 CN2500 CC1500 CC2500 NC3010 NC3215 NC3120 NC3220 NC3225 NC3030 NC5330 NC9020 NC9025 NC6205 NC6210 NC6215 PC5300 PC5400 PC8105 PC8110 PC8115 H01 H05 fn (mm/rev) ap (mm) KF VPET 0802005MFR-KF 0.01 0.12 0.05 0.50 080201MFR-KF 0.02 0.15 0.05 0.50 080202MFR-KF 0.02 0.18 0.10 1.00 0802005MFL-KF 0.01 0.12 0.05 0.50 080201MFL-KF 0.02 0.15 0.05 0.50 080202MFL-KF 0.02 0.18 0.10 1.00 KM VPET 0802005MFR-KM 0.01 0.12 0.05 0.50 080201MFR-KM 0.02 0.15 0.05 0.50 080202MFR-KM 0.02 0.18 0.10 1.00 0802005MFL-KM 0.01 0.12 0.05 0.50 080201MFL-KM 0.02 0.15 0.05 0.50 080202MFL-KM 0.02 0.18 0.10 1.00 VP1 VPGT 110301-VP1 0.02 0.15 0.05 0.50 110302-VP1 0.02 0.18 0.10 1.00 110304-VP1 0.03 0.18 0.15 1.20 VP1 VPGT 110301MFN-VP1 0.02 0.15 0.05 0.50 110302MFN-VP1 0.02 0.18 0.10 1.00 110304MFN-VP1 0.03 0.18 0.15 1.20 0 Cutting edge geometry A38 A43 Q Recommended chip breaker B04 B11 3 Code system B18 B19 Stock item Available tool holders Designation Page Designation Page SVABR/L B127 SVVBN B128 SVJBR/L B128, 178 Turning 77
