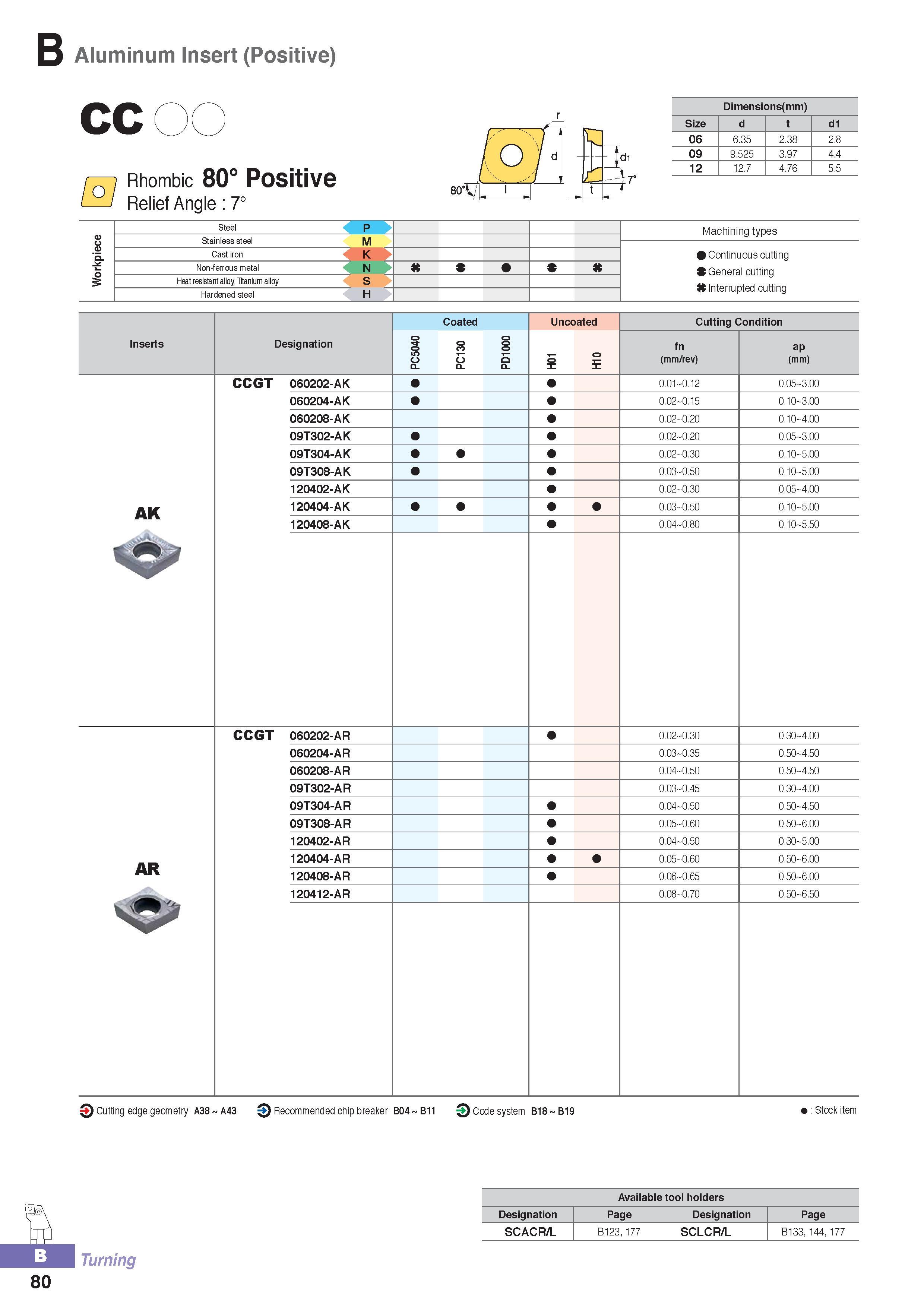

Aluminum Insert (Positive) CC Rhombic 80° Positive o Relief Angle 7° ±> 4r Dimensions (mm) Size d d1 06 6.35 2.38 2.8 09 9.525 3.97 4.4 12 12.7 4.76 5.5 p Non-ferrous metal IN Heat resistant alloy Titanium alloy Hardened steel Machining types Continuous cutting General cutting interrupted cutting Inserts Designation Coated Uncoated Cutting Condition PC5040 PC130 PD1000 H01 H10 fn (mm/rev) ap (mm) CCGT 060202-AK 0.01-0.12 0.05-3.00 060204-AK 0.02-0.15 0.10 3.00 060208-AK 0.02-0.20 0.10-4.00 09T302-AK 0.02-0.20 0.05-3.00 09T304-AK 0.02-0.30 0.10-5.00 09T308-AK 0.03-0.50 0.10-5.00 120402-AK 0.02-0.30 0.05-4.00 AK 120404-AK 0.03-0.50 0.10-5.00 120408-AK 0.04-0.80 0.10-5.50 CCGT 060202-AR 0.02-0.30 0.30-4.00 060204-AR 0.03-0.35 0.50-4.50 060208-AR 0.04-0.50 0.50-4.50 09T302-AR 0.03-0.45 0.30-4.00 09T304-AR 0.04-0.50 0.50-4.50 09T308-AR 0.05-0.60 0.50-6.00 120402-AR 0.04-0.50 0.30-5.00 AR 120404-AR 0.05-0.60 0.50-6.00 120408-AR 0.06-0.65 0.50-6.00 120412-AR 0.08-0.70 0.50-6.50 Cutting gdge geometry A38 A43 Recommended chip breaker B04 B11 Code system B18 B19 Stock item Turning 80 Available tool holders Designation Page Designation Page SCACR/L B123, 177 SCLCR/L B133, 144, 177 Steel Stainless steel M Cast iron
