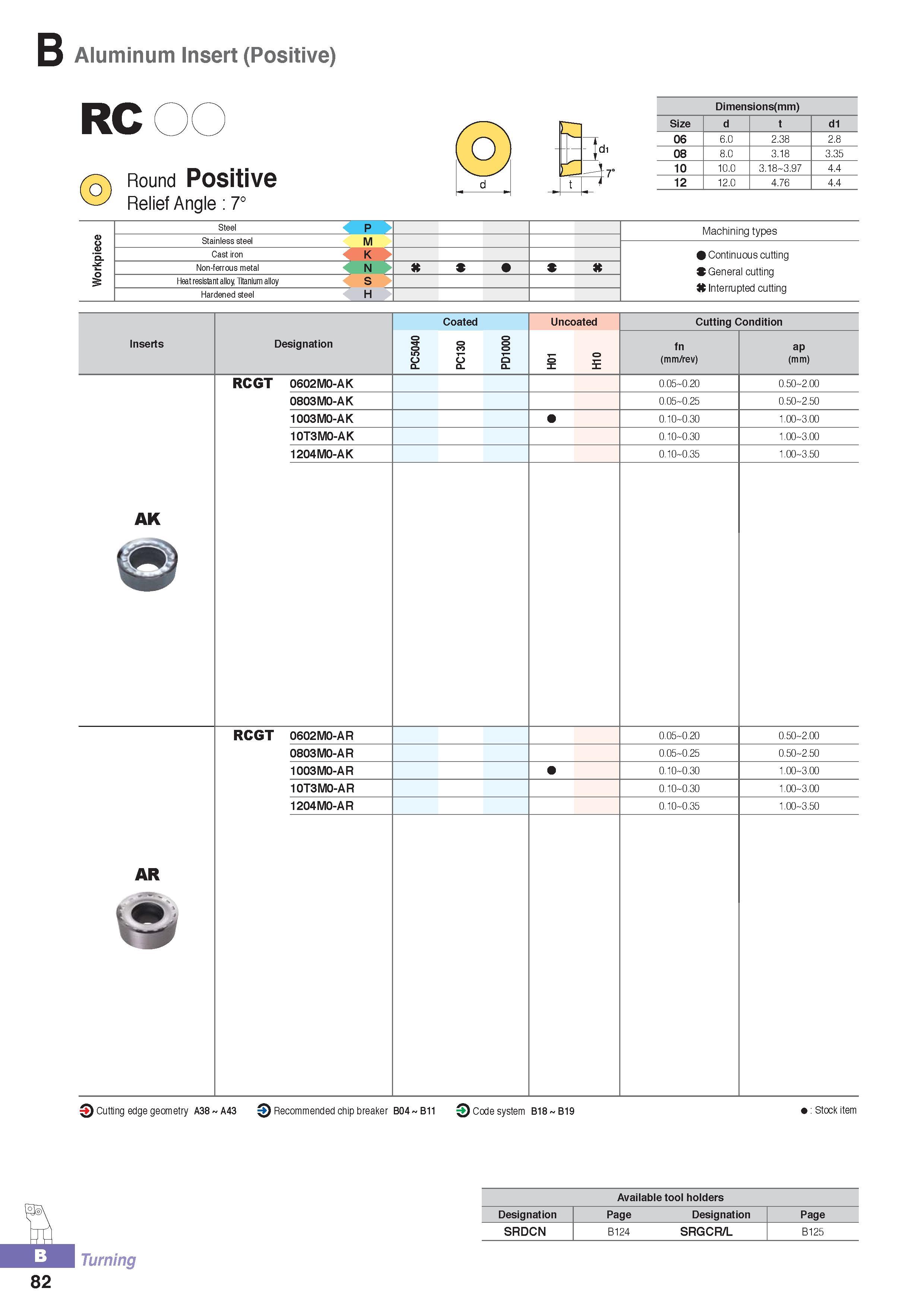

Aluminum Insert (Positive) RC Round Positive Relief Angle 7° E 3“ =4 Dimensions (mm) Size d t d1 06 6.0 2.38 2.8 08 8.0 3.18 3.35 10 10.0 3.18-3.97 4.4 12 12.0 4.76 4.4 P Non-ferrous metal M = 5 Heat resistant alloy, Titanium alloy Hardened steel N S H Machining types Continuous cutting General cutting Interrupted cutting Inserts Designation Coated Uncoated Cutting Condition fn (mm/rev) ap (mm) RCGT 0602M0-AK 0.05-0.20 0.50-2.00 0803M0-AK 0.05-0.25 0.50-2.50 1003M0-AK 0.10-0.30 1.00-3.00 10T3M0-AK 0.10-0.30 1.00-3.00 1204M0-AK 0.10-0.35 1.00-3.50 Steel Stainless steel Cast iron AK AR RCGT 0602M0-AR 0803M0-AR 1003M0-AR 10T3M0-AR 1204M0-AR 0.05-0.20 0.05-0.25 0.10-0.30 0.10-0.30 0.10-0.35 0.50-2.00 0.50-2.50 1.00-3.00 1.00-3.00 1.00-3.50 Cutting edge geometry A38 A43 Recommended chip breaker B04 B11 Code system B18 B19 Stock item Turning 82 Available tool holders Designation Page Designation Page SRDCN B124 SRGCR/L B125
