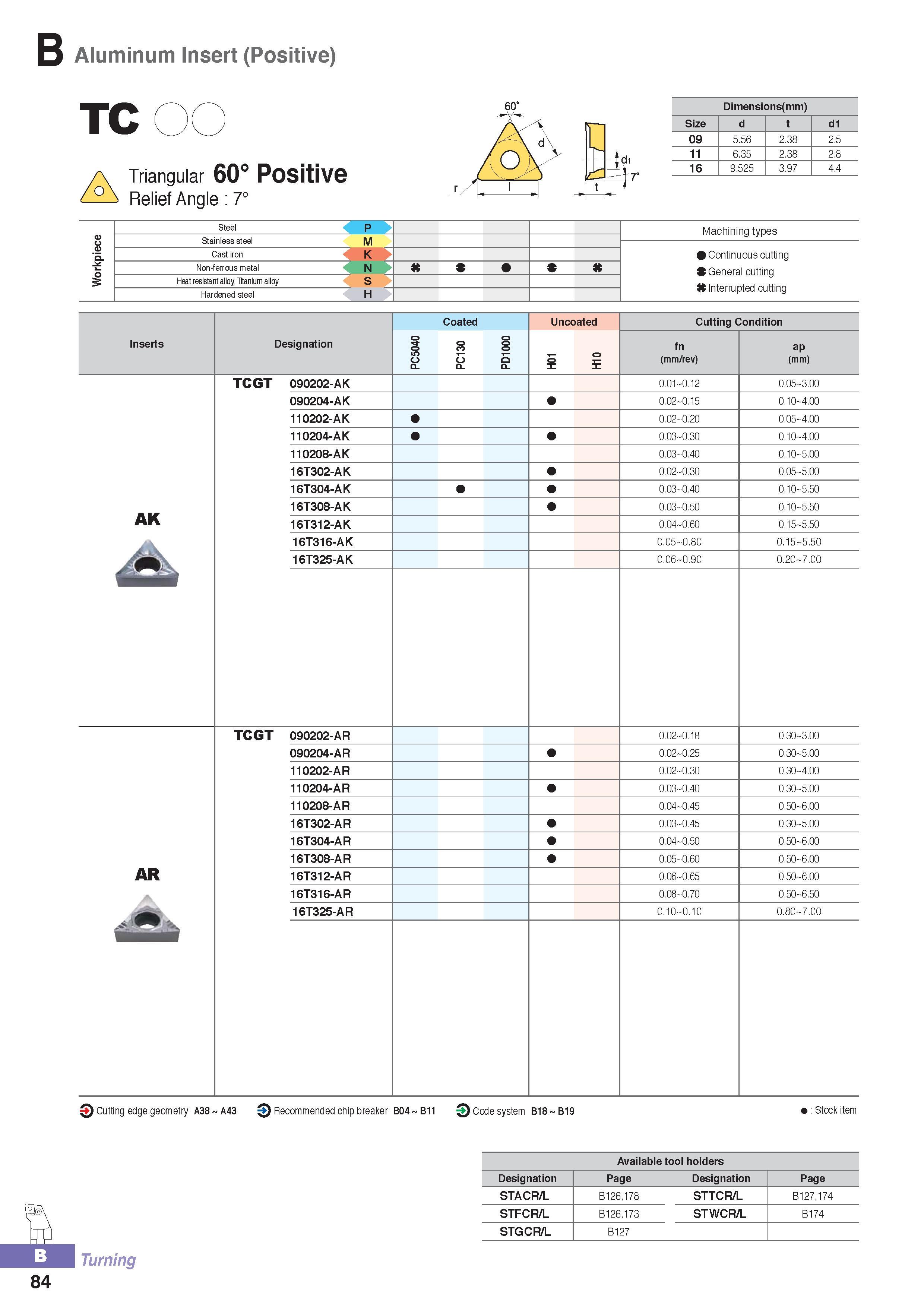

Aluminum Insert (Positive) TC Triangular 60° Positive Relief Angle 7° Dimensions (mm) Size d d1 09 5.56 2.38 2.5 11 6.35 2.38 2.8 16 9.525 3.97 4.4 p Non-ferrous metal M = N Heat resistant alloy Titanium alloy Hardened steel N S H Machining types Continuous cutting General cutting Interrupted cutting Inserts Designation Coated Uncoated Cutting Condition PC5040 PC130 PD1000 H01 H10 fn (mm/rev) ap (mm) AK TCGT 090202-AK 0.01-0.12 0.05-3.00 090204-AK 0.02-0.15 0.10-4.00 110202-AK 0.02-0.20 0.05-4.00 110204-AK 0.03-0.30 0.10-4.00 110208-AK 0.03-0.40 0.10-5.00 16T302-AK 0.02-0.30 0.05-5.00 16T304-AK 0.03-0.40 0.10-5.50 16T308-AK 0.03-0.50 0.10-5.50 16T312-AK 0.04-0.60 0.15-5.50 16T316-AK 0.05-0.80 0.15-5.50 16T325-AK 0.06-0.90 0.20-7.00 AR TCGT 090202-AR 0.02-0.18 0.30-3.00 090204-AR 0.02-0.25 0.30-5.00 110202-AR 0.02-0.30 0.30-4.00 110204-AR 0.03-0.40 0.30-5.00 110208-AR 0.04-0.45 0.50-6.00 16T302-AR 0.03-0.45 0.30-5.00 16T304-AR 0.04-0.50 0.50-6.00 16T308-AR 0.05-0.60 0.50-6.00 16T312-AR 0.06-0.65 0.50-6.00 16T316-AR 0.08-0.70 0.50-6.50 16T325-AR 0.10-0.10 0.80-7.00 Cutting gdge geometry A38 A43 3 Recommended chip breaker B04 B11 Code system B18 B19 Stock item Turning 84 Available tool holders Designation Page Designation Page STACR/L B126,178 STTCR/L B127,174 STFCR/L B126,173 STWCR/L B174 STGCR/L B127 Steel Stainless steel Cast iron
