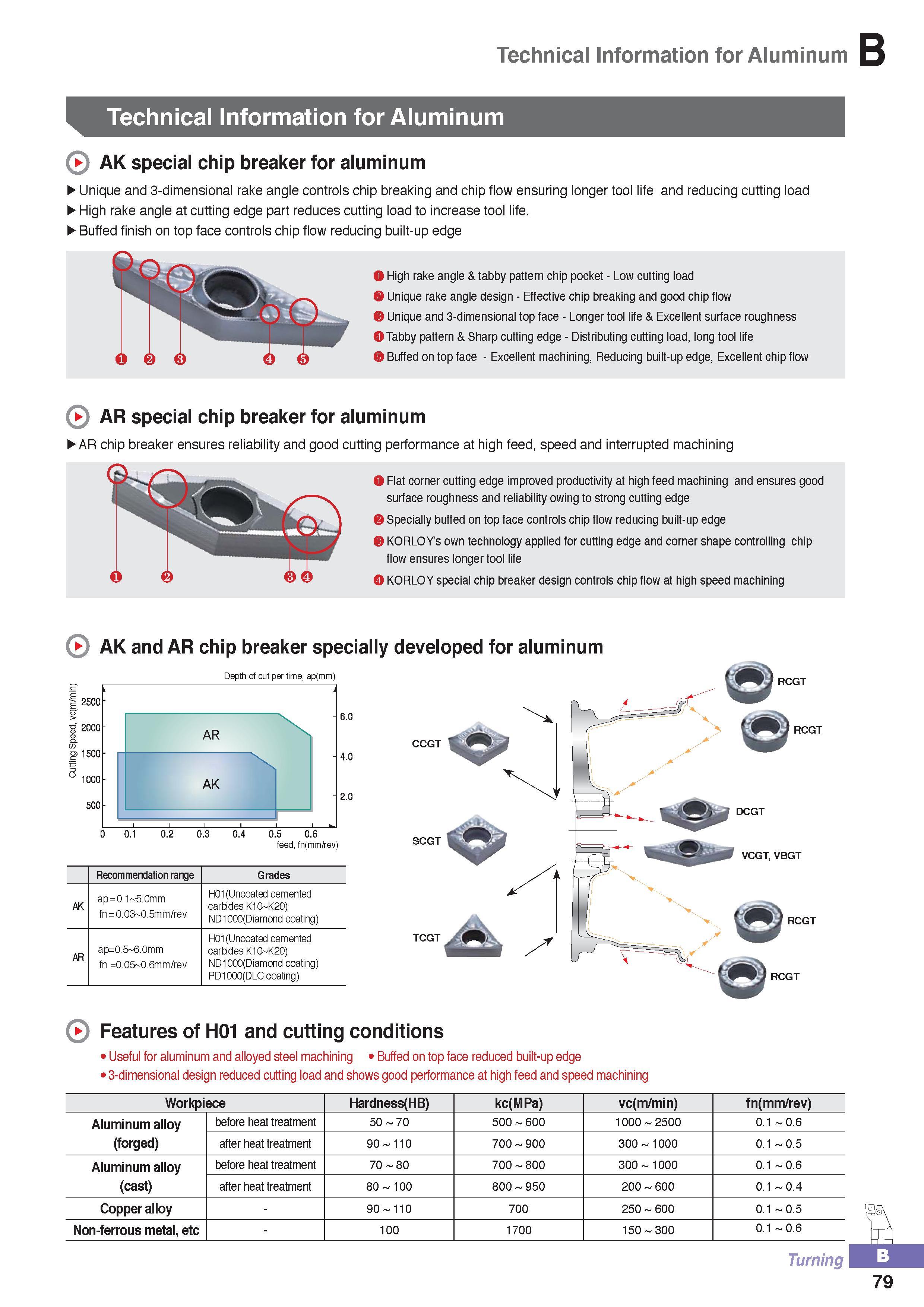

Indexable turning single sided inserts Korloy for aluminum Features AK special chip breaker for aluminum Unique and 3-dimensional rake angle controls chip breaking and chip flow ensuring longer tool life and reducing cutting load High rake angle at cutting edge part reduces cutting load to increase tool life. Buffed finish on top face controls chip flow reducing built-up edge High rake angle & tabby pattern chip pocket - Low cutting load Unique rake angle design - Effective chip breaking and good chip flow Unique and 3-dimensional top face - Longer tool life & Excellent surface roughness Tabby pattern & Sharp cutting edge - Distributing cutting load, long tool life 0 Buffed on top face - Excellent machining, Reducing built-up edge, Excellent chip flow AR special chip breaker for aluminum AR chip breaker ensures reliability and good cutting performance at high feed, speed and interrupted machining Q Flat corner cutting edge improved productivity at high feed machining and ensures good surface roughness and reliability owing to strong cutting edge 0 Specially buffed on top face controls chip flow reducing built-up edge 0 KORLOY’s own technology applied for cutting edge and corner shape controlling chip flow ensures longer tool life O KORLOY special chip breaker design controls chip flow at high speed machining AK and AR chip breaker specially developed for aluminum Depth of cut per time, ap(mm) 2500 2000 p 1500 CCGT 1000 0.5 0.6 feed, fn(mm/rev) SCGT Recommendation range Grades AK ap=0.1 5.0mm fn = 0.03 0.5mm/rev H01(Uncoated cemented carbides K10 K20) ND1000(Diamond coating) AR ap=0.5 6.0mm fn =0.05 0.6mm/rev H01(Uncoated cemented carbides K10 K20) ND1000(Diamond coating) PD1000(DLC coating) TCGT Features of H01 and cutting conditions Useful for aluminum and alloyed steel machining Buffed on top face reduced built-up edge 3-dimensional design reduced cutting load and shows good performance at high feed and speed machining RCGT RCGT VCGT, VBGT RCGT RCGT Workpiece Hardness(HB) kc(MPa) vc(m/min) fn(mm/rev) Aluminum alloy (forged) before heat treatment 50 70 500 600 1000 2500 0.1 0.6 after heat treatment 90 110 700 900 300 1000 0.1 0.5 Aluminum alloy (cast) before heat treatment 70 80 700 800 300 1000 0.1 0.6 after heat treatment 80 100 800 950 200 600 0.1 0.4 Copper alloy - 90 110 700 250 600 0.1 0.5 Non-ferrous metal, etc - 100 1700 150 300 0.1 0.6 Turning 79 Technical Information for Aluminum Technical Information for Aluminum
