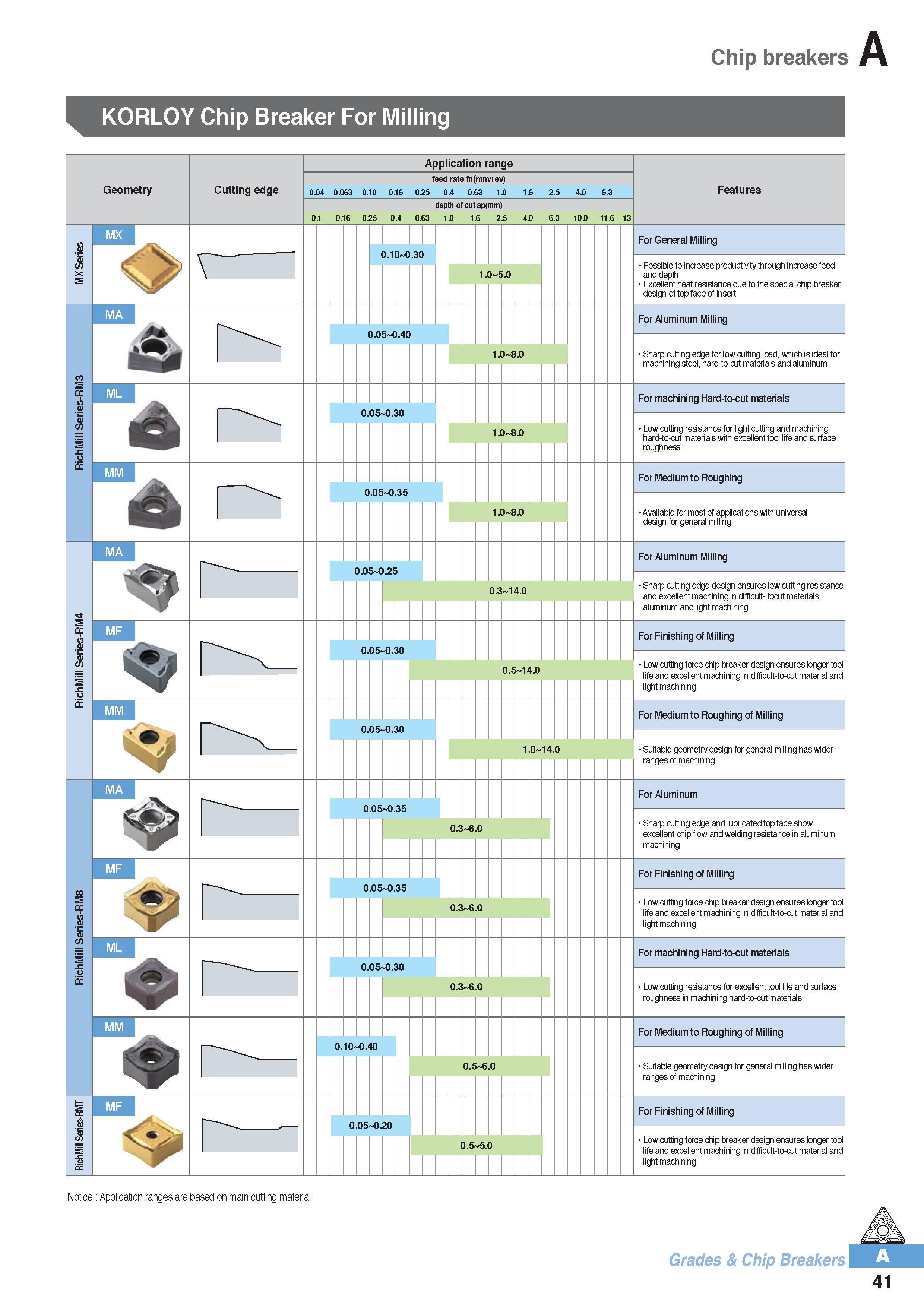

Chip breakers KORLOY Chip Breaker For Milling Geometry Cutting edge Application range feed rate fn(mm/rev) 0.04 0.063 0.10 0.16 025 0.4 0.63 1.0 1.6 2.5 4.0 6.3 depth of cut ap(mm) 0.1 0.16 0.25 0.4 0.63 1.0 1.6 2.5 4.0 6.3 10.0 11.6 13 Features 0.10 0.30 For General Milling Possible to increase productivitythrough increasefeed and depth Excellent heat resistance due to the special chip breaker design of top face of insert 0.05 0.40 For Aluminum Milling Sharp cutting edge for low cutting load, which is ideal for machining steel, hard-to-cut materials and aluminum 1.0 8.0 For machining Hard-to-cut materials Low cutting resistance for light cutting and machining hard-to-cut materials with excellent tool life and surface roughness 0.05 0.35 For Medium to Roughing Available for most of applications with universal design for general milling 0.3 14.0 For Aluminum Milling Sharp cutting edge design ensures low cutting resistance and excellent machining in difficult- tocut materials, aluminum and light machining 0.05 0.30 For Finishing of Milling Low cutting force chip breaker design ensures longer tool life and excellent machining in difficult-to-cut material and light machining 0.05 0.30 1.0 14.0 For Medium to Roughing of Milling Suitable geometrydesign for general milling has wider ranges of machining 0.3 6.0 For Aluminum Sharp cutting edge and lubricated top face show excellent chip flow and welding resistance in aluminum machining 0.05 0.35 For Finishing of Milling Low cutting force chip breaker design ensures longer tool life and excellent machining in difficult-to-cut material and light machining 0.05 0.30 For machining Hard-to-cut materials Low cutting resistance for excellent tool life and surface roughness in machining hard-to-cut materials 0.5 6.0 For Medium to Roughing of Milling Suitable geometrydesign for general milling has wider ranges of machining For Finishing of Milling Low cutting force chip breaker design ensures longer tool life and excellent machining in difficult-to-cut material and light machining MX MA ML MA MF MA MF ML MF Notice Application ranges are based on main cutting material Grades & Chip Breakers 41
