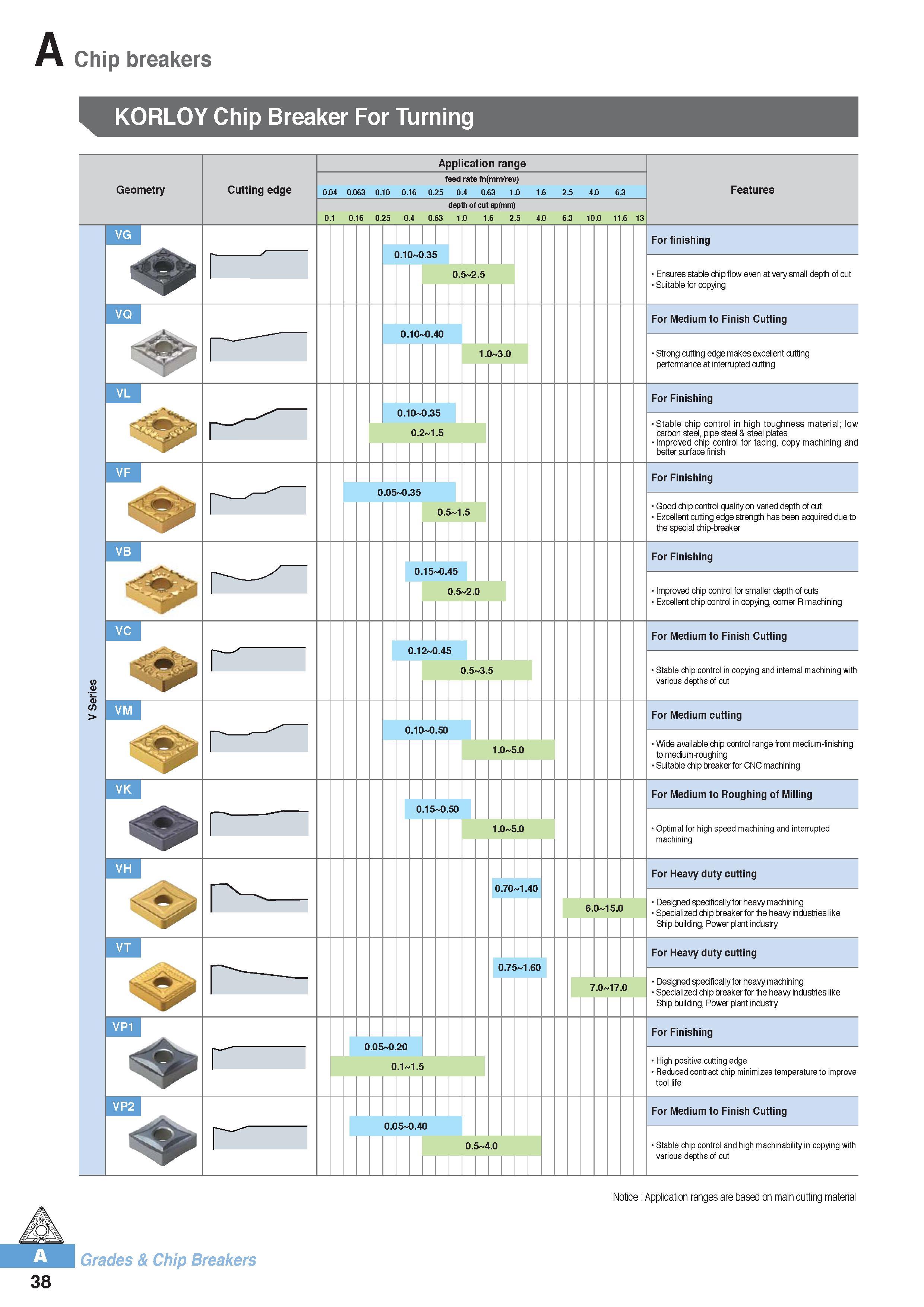

Chip breakers KORLOY Chip Breaker For Turning Geometry Cutting edge Application range feed rate fn(mm/rev) 0.04 0.063 0.10 0.16 0.25 0.4 0.63 1.0 1.6 2.5 4.0 6.3 depth of cut ap(mm) 0.1 0.16 0.25 0.4 0.63 1.0 1.6 2.5 4.0 6.3 10.0 11.6 13 Features 0.10 0.35 For finishing Ensures stable chip flow even at very small depth of cut Suitable for copying 1.0 3.0 For Medium to Finish Cutting Strong cutting edge makes excellent cutting performance at interrupted cutting 0.10 0.35 0.2 1.5 For Finishing Stable chip control in high toughness material; low carbon steel, pipe steel & steel plates Improved chip control for facing, copy machining and better surface finish 0.05 0.35 For Finishing Good chip control quality on varied depth of cut Excellent cutting edge strength has been acquired due to the special chip-breaker 0.15 0.45 0.5 2.0 For Finishing Improved chip control for smaller depth of cuts Excellent chip control in copying, corner R machining 0.5 3.5 For Medium to Finish Cutting Stable chip control in copying and internal machining with various depths of cut vk 0.10 0.50 For Medium cutting Wide available chip control range from medium-finishing to medium-roughing Suitable chip breaker for CNC machining r vh 0.15 0.50 For Medium to Roughing of Milling Optimal for high speed machining and interrupted machining For Heavy duty cutting 6.0 15.0 Designed specificallyfor heavymachining Specialized chip breaker for the heavy industries like Ship building, Power plant industry For Heavy duty cutting Designed specificallyfor heavymachining Specialized chip breaker for the heavy industries like Ship building, Power plant industry r For Finishing 0.05 0.20 0.1 1.5 High positive cutting edge Reduced contract chip minimizes temperature to improve tool life For Medium to Finish Cutting 0.5 4.0 Stable chip control and high machinability in copying with various depths of cut 38 Grades & Chip Breakers Notice Application ranges are based on main cutting material VG VQ VL VF VC VM VT VP1 VP2
