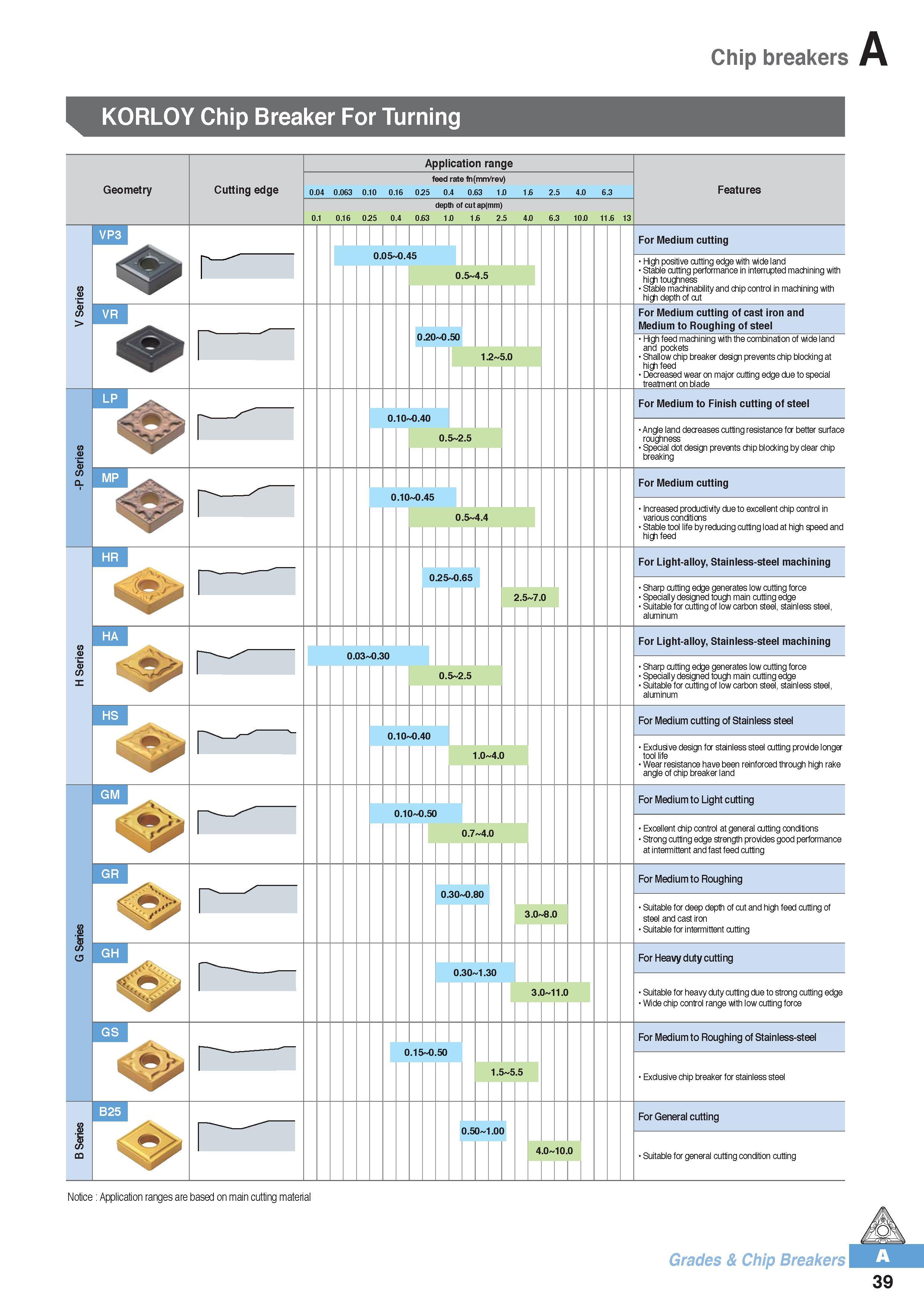

Chip breakers KORLOY Chip Breaker For Turning Geometry Cutting edge Application range feed rate fn(mm/rev) 0.04 0.063 0.10 0.16 0.25 0.4 0.63 1.0 1.6 2.5 4.0 6.3 depth of cut ap(mm) 0.1 0.16 0.25 0.4 0.63 1.0 1.6 2.5 4.0 6.3 10.0 11.6 13 Features 0.5 4.5 For Medium cutting High positive cutting edge with wide land Stable cutting performance in interrupted machining with high toughness Stable machinabilityand chip control in machining with hicfi depth of cut 1.2 5.0 For Medium cutting of cast iron and Medium to Roughing of steel High feed machining with the combination of wide land and pockets Shallow chip breaker design prevents chip blocking at high feed Decreased wear on major cutting edge due to special treatment on blade r 0.5 2.5 For Medium to Finish cutting of steel Angle land decreases cutting resistance for better surface roughness Special dot design prevents chip blocking by clear chip breaking For Medium cutting Increased productivity due to excellent chip control in various conditions Stable tool life byreducing cutting load at high speed and high feed 2.5 7.0 For Light-alloy, Stainless-steel machining Sharp cutting edge generates low cutting force Specially designed tough main cutting edge Suitable for cutting of low carbon steel, stainless steel, aluminum 0.5 2.5 For Light-alloy, Stainless-steel machining Sharp cutting edge generates low cutting force Specially designed tough main cutting edge Suitable for cutting of low carbon steel, stainless steel, aluminum 0.10 0.40 1.0 4.0 For Medium cutting of Stainless steel Exclusive design for stainless steel cutting provide longer tool life Wear resistance have been reinforced through high rake angle of chip breaker land 0.10 0.50 For Medium to Light cutting Excellent chip control at general cutting conditions Strong cutting edge strength provides good performance at intermittent and fast feed cutting r 3.0 8.0 For Medium to Roughing Suitable for deep depth of cut and high feed cutting of steel and cast iron Suitable for intermittent cutting 3.0 11.0 For Heavy duty cutting Suitable for heavy duty cutting due to strong cutting edge Wide chip control range with low cutting force 1.5 5.5 For Medium to Roughing of Stainless-steel Exclusive chip breaker for stainless steel 0.50 1.00 For General cutting Suitable for general cutting condition cutting Notice Application ranges are based on main cutting material Grades & Chip Breakers 39 VP3 VR HR HA HS GM GR GH GS B25
