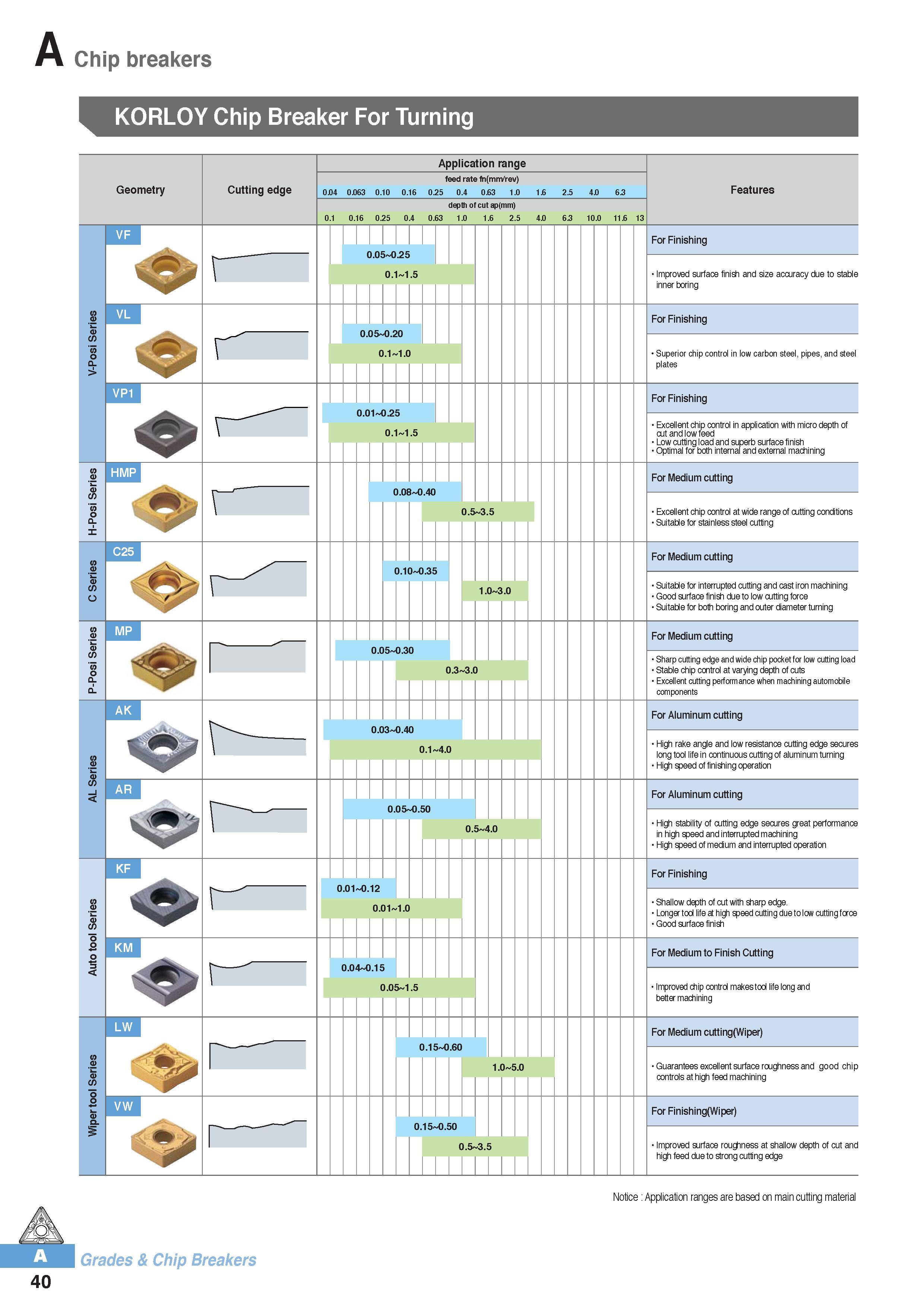

Chip breakers KORLOY Chip Breaker For Turning Geometry Cutting edge Application range feed rate fn(mm/rev) 0.04 0.063 0.10 0.16 0.25 0.4 0.63 1.0 1.6 2.5 4.0 6.3 depth of cut ap(mm) 0.1 0.16 0.25 0.4 0.63 1.0 1.6 2.5 4.0 6.3 10.0 11.6 13 Features 0.05 0.25 0.1 1.5 For Finishing Improved surface finish and size accuracy due to stable inner boring 0.05 0.20 0.1 1.0 For Finishing Superior chip control in low carbon steel, pipes, and steel plates 0.01 0.25 0.1 1.5 For Finishing Excellent chip control in application with micro depth of '' fee<' cut and low feed Low cutting load and superb surface finish Optimal for both internal and external machining 0.5 3.5 For Medium cutting Excellent chip control at wide range of cutting conditions Suitable for stainless steel cutting 1.0 3.0 For Medium cutting Suitable for interrupted cutting and cast iron machining Good surface finish due to low cutting force Suitable for both boring and outer diameter turning 0.05 0.30 For Medium cutting Sharp cutting edge and wide chip pocket for low cutting load Stable chip control at varying depth of cuts Excellent cutting performance when machining automobile components 0.1 4.0 For Aluminum cutting High rake angle and low resistance cutting edge secures long tool life in continuous cutting of aluminum turning High speed of finishing operation 0.05 0.50 For Aluminum cutting High stability of cutting edge secures great performance in high speed and interrupted machining High speed of medium and interrupted operation 0.01 0.12 0.01 1.0 For Finishing Shallow depth of cut with sharp edge. Longer tool life at high speed cutting due to low cutting force Good surface finish 0.04 0.15 For Medium to Finish Cutting Improved chip control makestool life long and better machining For Medium cutting(Wiper) Guaranteesexcellentsurfaceroughnessand good chip controls at high feed machining 0.15 0.50 0.5 3.5 For Finishing(Wiper) Improved surface roughness at shallow depth of cut and high feed due to strong cutting edge 40 Grades & Chip Breakers Notice Application ranges are based on main cutting material VF VL VP1 HMP C25 AK AR KF KM VW
