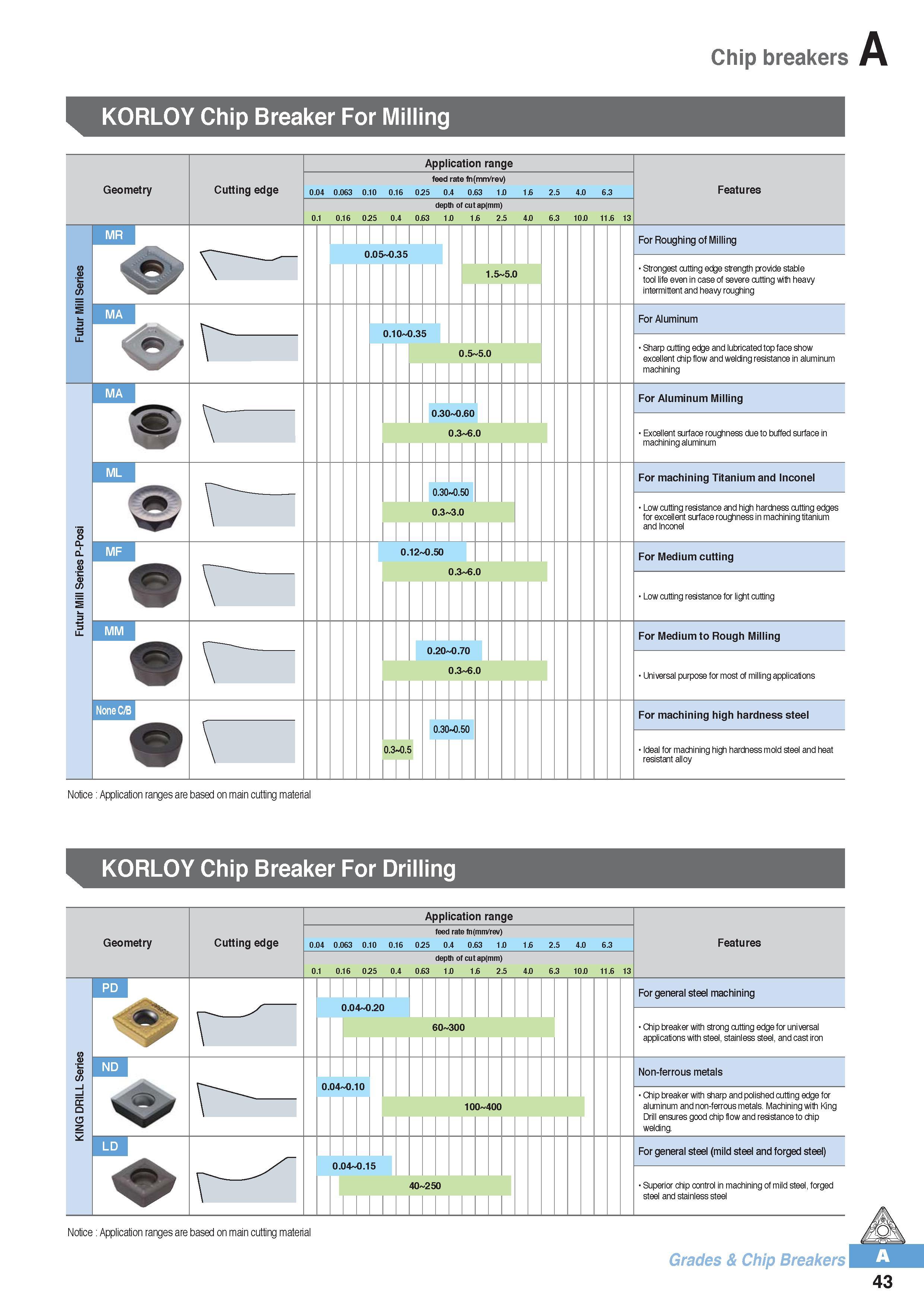

Chip breakers KORLOY Chip Breaker For Milling Geometry Cutting edge Application range feed rate fn(mm/rev) 0.10 0.16 0.25 0.4 0.63 1.0 1.6 2.5 4.0 6.3 depth of cut ap(mm) 0.25 0.4 0.63 1.0 1.6 2.5 4.0 6.3 10.0 11.6 13 Features 1.5 5.0 For Roughing of Milling Strongest cutting edge strength provide stable tool life even in case of severe cutting with heavy intermittent and heavy roughing 0.10 0.35 For Aluminum Sharp cutting edge and lubricated top face show excellent chip flow and welding resistance in aluminum machining 0.30 0.60 0.3 6.0 For Aluminum Milling Excellent surface roughness dueto buffed surface in machining aluminum 0.30 0.50 0.3 3.0 For machining Titanium and Inconel Low cutting resistance and high hardness cutting edges for excellent surface roughness in machining titanium and Inconel 0.12 0.50 For Medium cutting Low cutting resistance for light cutting None C/b 0.20 0.70 0.3 6.0 For Medium to Rough Milling Universal purpose for most of milling applications 0.30 0.50 0.3 0.5 For machining high hardness steel Ideal for machining high hardness mold steel and heat resistant alloy Notice Application ranges are based on main cutting material 0.1 0.16 MR MA MA ML MF KORLOY Chip Breaker For Drilling Geometry Cutting edge Application range feed rate fn(mmrev) 0.04 0.063 0.10 0.16 025 0.4 0.63 1.0 1.6 2.5 4.0 6.3 depth of cut ap(mm) 0.1 0.16 025 0.4 0.63 1.0 1.6 2.5 4.0 6.3 10.0 11.6 13 60 300 0.04 0.15 Features For general steel machining Chip breaker with strong cutting edge for universal applications with steel, stainless steel, and cast iron Non-ferrous metals Chip breaker with sharp and polished cutting edge for aluminum and non-ferrous metals. Machining with King Drill ensures good chip flow and resistance to chip welding. For general steel (mild steel and forged steel) Superior chip control in machining of mild steel, forged steel and stainless steel Notice Application ranges are based on main cutting material Grades & Chip Breakers 43
