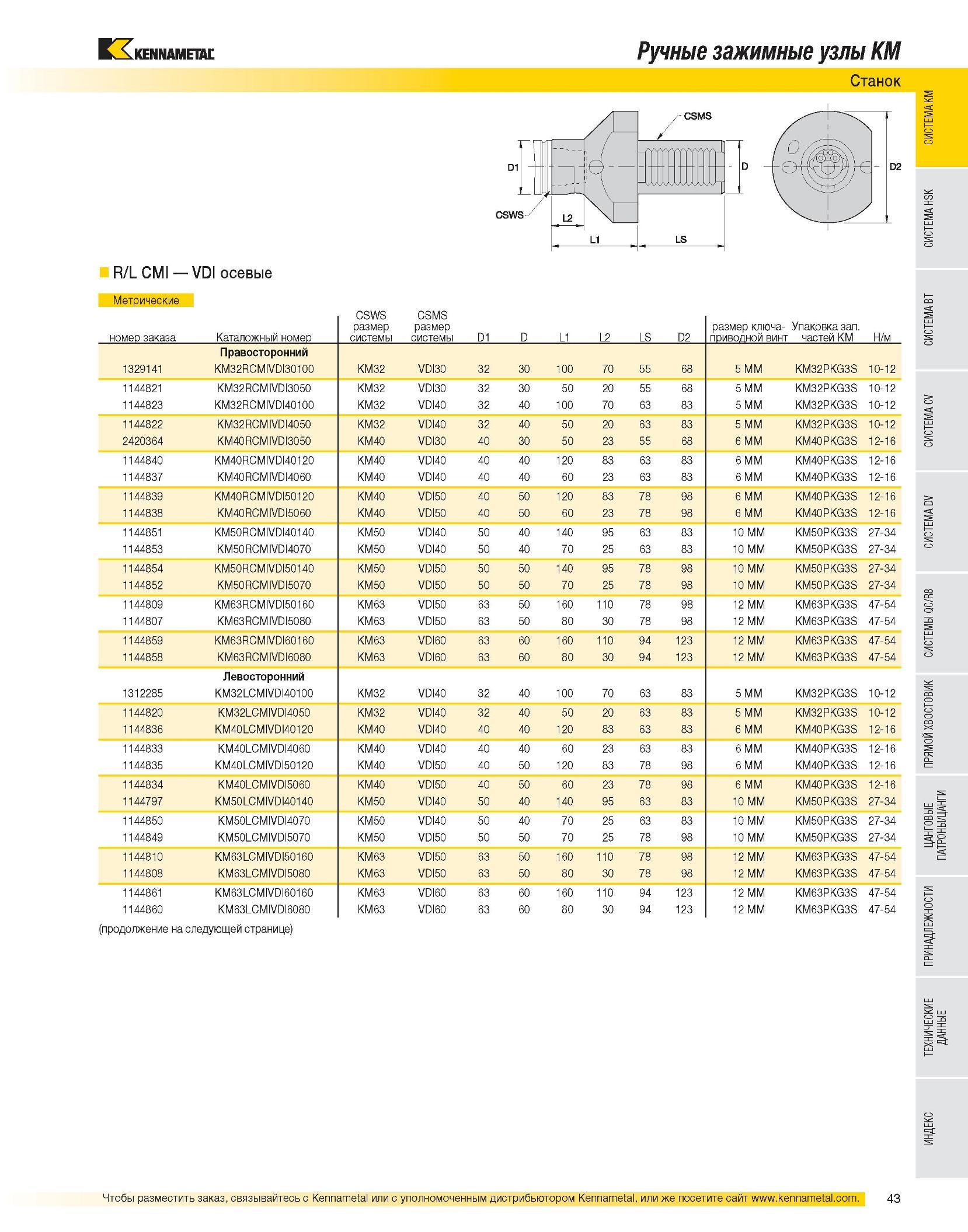

Ручные зажимные узлы KM Станок R/L CMI VDI осевые Метрические номер заказа Каталожный номер CSWS размер системы CSMS размер системы D1 D L1 L2 LS D2 размер ключа-приводной винт Упаковка зап. частей KM Н/м Правосторонний 1329141 KM32RCMIVDI30100 KM32 VDI30 32 30 100 70 55 68 5 MM KM32PKG3S 10-12 1144821 KM32RCMIVDI3050 KM32 VDI30 32 30 50 20 55 68 5 MM KM32PKG3S 10-12 1144823 KM32RCMIVDI40100 KM32 VDI40 32 40 100 70 63 83 5 MM KM32PKG3S 10-12 1144822 KM32RCMIVDI4050 KM32 VDI40 32 40 50 20 63 83 5 MM KM32PKG3S 10-12 2420364 KM40RCMIVDI3050 KM40 VDI30 40 30 50 23 55 68 6 MM KM40PKG3S 12-16 1144840 KM40RCMIVDI40120 KM40 VDI40 40 40 120 83 63 83 6 MM KM40PKG3S 12-16 1144837 KM40RCMIVDI4060 KM40 VDI40 40 40 60 23 63 83 6 MM KM40PKG3S 12-16 1144839 KM40RCMIVDI50120 KM40 VDI50 40 50 120 83 78 98 6 MM KM40PKG3S 12-16 1144838 KM40RCMIVDI5060 KM40 VDI50 40 50 60 23 78 98 6 MM KM40PKG3S 12-16 1144851 KM50RCMIVDI40140 KM50 VDI40 50 40 140 95 63 83 10 MM KM50PKG3S 27-34 1144853 KM50RCMIVDI4070 KM50 VDI40 50 40 70 25 63 83 10 MM KM50PKG3S 27-34 1144854 KM50RCMIVDI50140 KM50 VDI50 50 50 140 95 78 98 10 MM KM50PKG3S 27-34 1144852 KM50RCMIVDI5070 KM50 VDI50 50 50 70 25 78 98 10 MM KM50PKG3S 27-34 1144809 KM63RCMIVDI50160 KM63 VDI50 63 50 160 110 78 98 12 MM KM63PKG3S 47-54 1144807 KM63RCMIVDI5080 KM63 VDI50 63 50 80 30 78 98 12 MM KM63PKG3S 47-54 1144859 KM63RCMIVDI60160 KM63 VDI60 63 60 160 110 94 123 12 MM KM63PKG3S 47-54 1144858 KM63RCMIVDI6080 KM63 VDI60 63 60 80 30 94 123 12 MM KM63PKG3S 47-54 1312285 Левосторонний KM32LCMIVDI40100 KM32 VDI40 32 40 100 70 63 83 5 MM KM32PKG3S 10-12 1144820 KM32LCMIVDI4050 KM32 VDI40 32 40 50 20 63 83 5 MM KM32PKG3S 10-12 1144836 KM40LCMIVDI40120 KM40 VDI40 40 40 120 83 63 83 6 MM KM40PKG3S 12-16 1144833 KM40LCMIVDI4060 KM40 VDI40 40 40 60 23 63 83 6 MM KM40PKG3S 12-16 1144835 KM40LCMIVDI50120 KM40 VDI50 40 50 120 83 78 98 6 MM KM40PKG3S 12-16 1144834 KM40LCMIVDI5060 KM40 VDI50 40 50 60 23 78 98 6 MM KM40PKG3S 12-16 1144797 KM50LCMIVDI40140 KM50 VDI40 50 40 140 95 63 83 10 MM KM50PKG3S 27-34 1144850 KM50LCMIVDI4070 KM50 VDI40 50 40 70 25 63 83 10 MM KM50PKG3S 27-34 1144849 KM50LCMIVDI5070 KM50 VDI50 50 50 70 25 78 98 10 MM KM50PKG3S 27-34 1144810 KM63LCMIVDI50160 KM63 VDI50 63 50 160 110 78 98 12 MM KM63PKG3S 47-54 1144808 KM63LCMIVDI5080 KM63 VDI50 63 50 80 30 78 98 12 MM KM63PKG3S 47-54 1144861 KM63LCMIVDI60160 KM63 VDI60 63 60 160 110 94 123 12 MM KM63PKG3S 47-54 1144860 KM63LCMIVDI6080 KM63 VDI60 63 60 80 30 94 123 12 MM KM63PKG3S 47-54 (продолжение на следующей странице)
