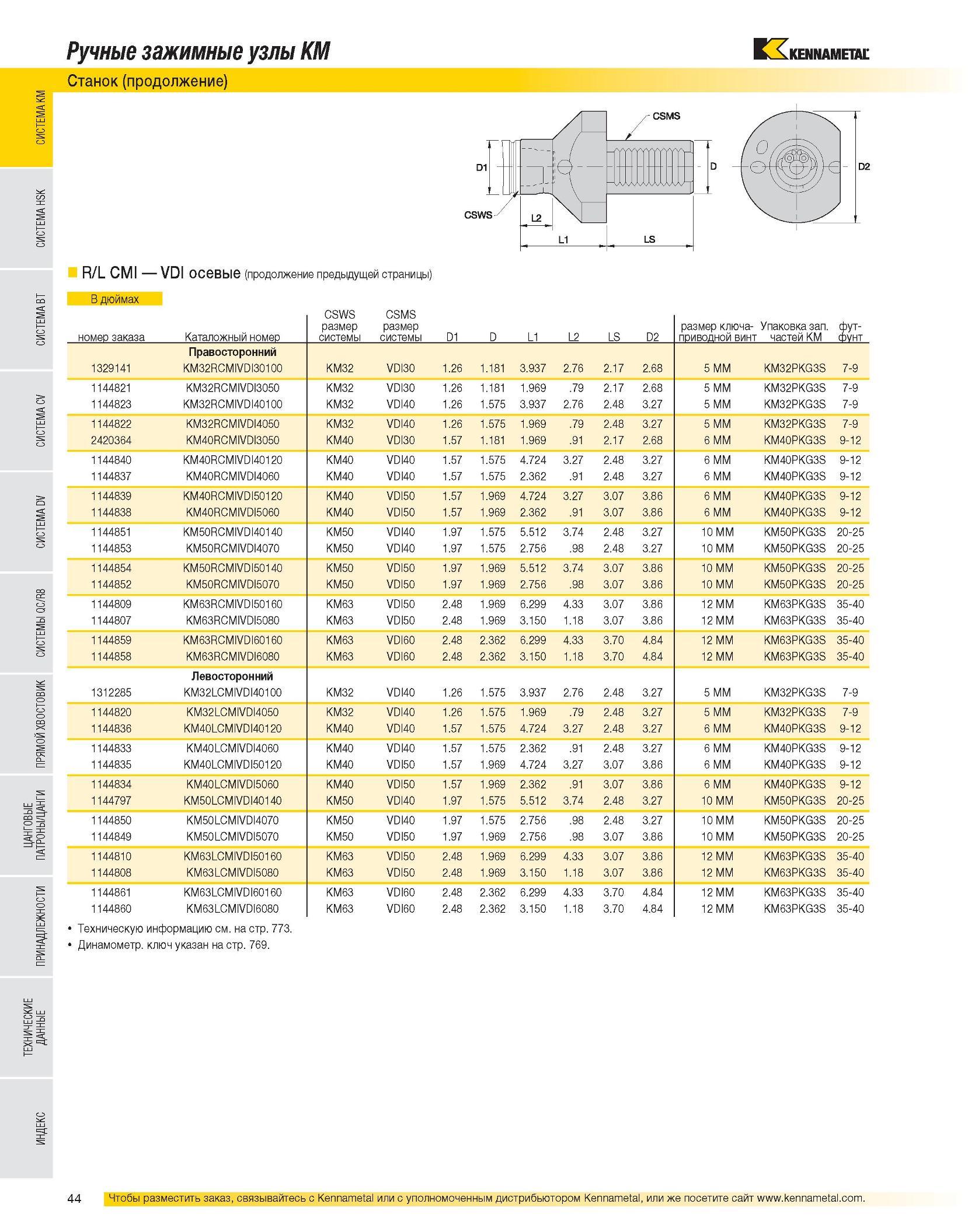

Ручные зажимные узлы KM Станок (продолжение) R/L CMI - VDI осевые (продолжение предыдущей страницы) В дюймах CSWS CSMS номер заказа Каталожный номер CSWS размер системы CSMS размер системы D1 D L1 L2 LS D2 размер ключа-приводной винт Упаковка зап. частей KM фф Правосторонний 1329141 KM32RCMIVDI30100 KM32 VDI30 1.26 1.181 3.937 2.76 2.17 2.68 5 MM KM32PKG3S 7-9 1144821 KM32RCMIVDI3050 KM32 VDI30 1.26 1.181 1.969 .79 2.17 2.68 5 MM KM32PKG3S 7-9 1144823 KM32RCMIVDI40100 KM32 VDI40 1.26 1.575 3.937 2.76 2.48 3.27 5 MM KM32PKG3S 7-9 1144822 KM32RCMIVDI4050 KM32 VDI40 1.26 1.575 1.969 .79 2.48 3.27 5 MM KM32PKG3S 7-9 2420364 KM40RCMIVDI3050 KM40 VDI30 1.57 1.181 1.969 .91 2.17 2.68 6 MM KM40PKG3S 9-12 1144840 KM40RCMIVDI40120 KM40 VDI40 1.57 1.575 4.724 3.27 2.48 3.27 6 MM KM40PKG3S 9-12 1144837 KM40RCMIVDI4060 KM40 VDI40 1.57 1.575 2.362 .91 2.48 3.27 6 MM KM40PKG3S 9-12 1144839 KM40RCMIVDI50120 KM40 VDI50 1.57 1.969 4.724 3.27 3.07 3.86 6 MM KM40PKG3S 9-12 1144838 KM40RCMIVDI5060 KM40 VDI50 1.57 1.969 2.362 .91 3.07 3.86 6 MM KM40PKG3S 9-12 1144851 KM50RCMIVDI40140 KM50 VDI40 1.97 1.575 5.512 3.74 2.48 3.27 10 MM KM50PKG3S 20-25 1144853 KM50RCMIVDI4070 KM50 VDI40 1.97 1.575 2.756 .98 2.48 3.27 10 MM KM50PKG3S 20-25 1144854 KM50RCMIVDI50140 KM50 VDI50 1.97 1.969 5.512 3.74 3.07 3.86 10 MM KM50PKG3S 20-25 1144852 KM50RCMIVDI5070 KM50 VDI50 1.97 1.969 2.756 .98 3.07 3.86 10 MM KM50PKG3S 20-25 1144809 KM63RCMIVDI50160 KM63 VDI50 2.48 1.969 6.299 4.33 3.07 3.86 12 MM KM63PKG3S 35-40 1144807 KM63RCMIVDI5080 KM63 VDI50 2.48 1.969 3.150 1.18 3.07 3.86 12 MM KM63PKG3S 35-40 1144859 KM63RCMIVDI60160 KM63 VDI60 2.48 2.362 6.299 4.33 3.70 4.84 12 MM KM63PKG3S 35-40 1144858 KM63RCMIVDI6080 KM63 VDI60 2.48 2.362 3.150 1.18 3.70 4.84 12 MM KM63PKG3S 35-40 1312285 Левосторонний KM32LCMIVDI40100 KM32 VDI40 1.26 1.575 3.937 2.76 2.48 3.27 5 MM KM32PKG3S 7-9 1144820 KM32LCMIVDI4050 KM32 VDI40 1.26 1.575 1.969 .79 2.48 3.27 5 MM KM32PKG3S 7-9 1144836 KM40LCMIVDI40120 KM40 VDI40 1.57 1.575 4.724 3.27 2.48 3.27 6 MM KM40PKG3S 9-12 1144833 KM40LCMIVDI4060 KM40 VDI40 1.57 1.575 2.362 .91 2.48 3.27 6 MM KM40PKG3S 9-12 1144835 KM40LCMIVDI50120 KM40 VDI50 1.57 1.969 4.724 3.27 3.07 3.86 6 MM KM40PKG3S 9-12 1144834 KM40LCMIVDI5060 KM40 VDI50 1.57 1.969 2.362 .91 3.07 3.86 6 MM KM40PKG3S 9-12 1144797 KM50LCMIVDI40140 KM50 VDI40 1.97 1.575 5.512 3.74 2.48 3.27 10 MM KM50PKG3S 20-25 1144850 KM50LCMIVDI4070 KM50 VDI40 1.97 1.575 2.756 .98 2.48 3.27 10 MM KM50PKG3S 20-25 1144849 KM50LCMIVDI5070 KM50 VDI50 1.97 1.969 2.756 .98 3.07 3.86 10 MM KM50PKG3S 20-25 1144810 KM63LCMIVDI50160 KM63 VDI50 2.48 1.969 6.299 4.33 3.07 3.86 12 MM KM63PKG3S 35-40 1144808 KM63LCMIVDI5080 KM63 VDI50 2.48 1.969 3.150 1.18 3.07 3.86 12 MM KM63PKG3S 35-40 1144861 KM63LCMIVDI60160 KM63 VDI60 2.48 2.362 6.299 4.33 3.70 4.84 12 MM KM63PKG3S 35-40 1144860 KM63LCMIVDI6080 KM63 VDI60 2.48 2.362 3.150 1.18 3.70 4.84 12 MM KM63PKG3S 35-40 Техническую информацию см. на стр. 773. Динамометр. ключ указан на стр. 769.
