Концевые твердосплавные цельные фрезы Iscar Эскиз фрезерного инструмента с основными размерами Обозначение Режимы резания Подача на зуб PREMIUM LINE CHATTER

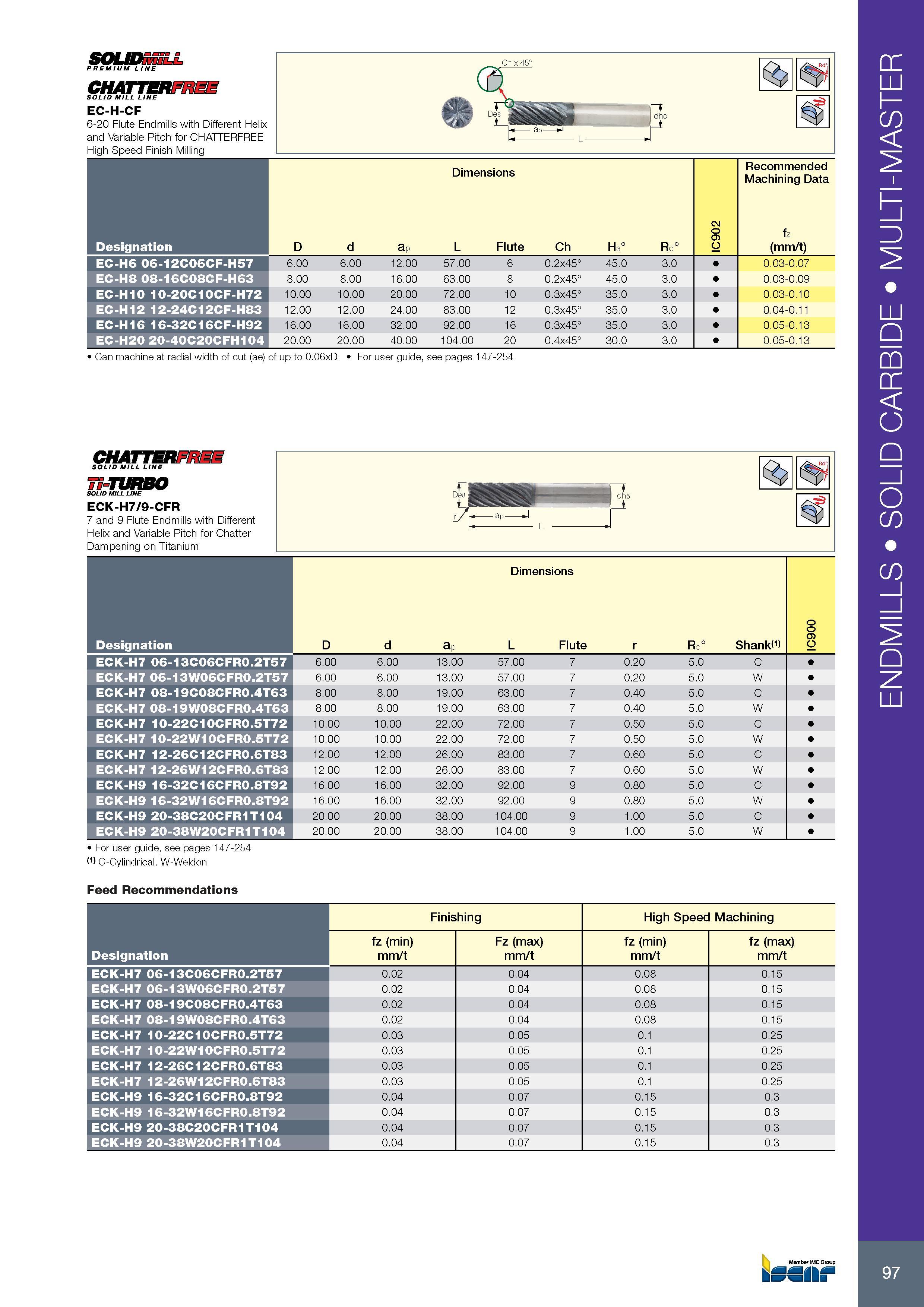

Концевые твердосплавные цельные фрезы Iscar Эскиз фрезерного инструмента с основными размерами Обозначение Режимы резания Подача на зуб PREMIUM LINE CHATTERFREE SOLID MILL LINE EC-H-CF 6-20 Flute Endmills with Different Helix and Variable Pitch for CHATTERFREE High Speed Finish Milling Размеры в мм Dimensions IC902 Режимы резания при металлообработке Recommended Machining Data Подача на зуб fz (mm/t) Обозначение Designation D d ap L Flute Ch Ha° Rd° EC-H6 06-12C06CF-H57 6.00 6.00 12.00 57.00 6 0.2x45° 45.0 3.0 0.03-0.07 EC-H8 08-16C08CF-H63 8.00 8.00 16.00 63.00 8 0.2x45° 45.0 3.0 0.03-0.09 EC-H10 10-20C10CF-H72 10.00 10.00 20.00 72.00 10 0.3x45° 35.0 3.0 0.03-0.10 EC-H12 12-24C12CF-H83 12.00 12.00 24.00 83.00 12 0.3x45° 35.0 3.0 0.04-0.11 EC-H16 16-32C16CF-H92 16.00 16.00 32.00 92.00 16 0.3x45° 35.0 3.0 0.05-0.13 EC-H20 20-40C20CFH104 20.00 20.00 40.00 104.00 20 0.4x45° 30.0 3.0 0.05-0.13 Can machine at radial width of cut (ae) of up to 0.06xD For user guide, see pages 147-254 CHATTERFREE SOLID MILL LINE n-TURBO SOLID MILL LINE ECK-H7/9-CFR 7 and 9 Flute Endmills with Different Helix and Variable Pitch for Chatter Dampening on Titanium For user guide, see pages 147-254 W Тип хвостовика инструмента C-Cylindrical (цилиндрический) W-Weldon Feed Recommendations Размеры в мм Dimensions Обозначение Designation D d ap L Flute r Rd° Shank<1) IC900 ECK-H7 06-13C06CFR0.2T57 6.00 6.00 13.00 57.00 7 0.20 5.0 C ECK-H7 06-13W06CFR0.2T57 6.00 6.00 13.00 57.00 7 0.20 5.0 W ECK-H7 08-19C08CFR0.4T63 8.00 8.00 19.00 63.00 7 0.40 5.0 C ECK-H7 08-19W08CFR0.4T63 8.00 8.00 19.00 63.00 7 0.40 5.0 W ECK-H7 10-22C10CFR0.5T72 10.00 10.00 22.00 72.00 7 0.50 5.0 C ECK-H7 10-22W10CFR0.5T72 10.00 10.00 22.00 72.00 7 0.50 5.0 W ECK-H7 12-26C12CFR0.6T83 12.00 12.00 26.00 83.00 7 0.60 5.0 C ECK-H7 12-26W12CFR0.6T83 12.00 12.00 26.00 83.00 7 0.60 5.0 W ECK-H9 16-32C16CFR0.8T92 16.00 16.00 32.00 92.00 9 0.80 5.0 C ECK-H9 16-32W16CFR0.8T92 16.00 16.00 32.00 92.00 9 0.80 5.0 W ECK-H9 20-38C20CFR1T104 20.00 20.00 38.00 104.00 9 1.00 5.0 C ECK-H9 20-38W20CFR1T104 20.00 20.00 38.00 104.00 9 1.00 5.0 W Обозначение Designation Finishing High Speed Machining fz (min) mm/t Fz (max) mm/t fz (min) mm/t fz (max) mm/t ECK-H7 06-13C06CFR0.2T57 0.02 0.04 0.08 0.15 ECK-H7 06-13W06CFR0.2T57 0.02 0.04 0.08 0.15 ECK-H7 08-19C08CFR0.4T63 0.02 0.04 0.08 0.15 ECK-H7 08-19W08CFR0.4T63 0.02 0.04 0.08 0.15 ECK-H7 10-22C10CFR0.5T72 0.03 0.05 0.1 0.25 ECK-H7 10-22W10CFR0.5T72 0.03 0.05 0.1 0.25 ECK-H7 12-26C12CFR0.6T83 0.03 0.05 0.1 0.25 ECK-H7 12-26W12CFR0.6T83 0.03 0.05 0.1 0.25 ECK-H9 16-32C16CFR0.8T92 0.04 0.07 0.15 0.3 ECK-H9 16-32W16CFR0.8T92 0.04 0.07 0.15 0.3 ECK-H9 20-38C20CFR1T104 0.04 0.07 0.15 0.3 ECK-H9 20-38W20CFR1T104 0.04 0.07 0.15 0.3 Member IMC Group kSSII t Ch x 45 97 ENDMILLS SOLID CARBIDE MULTI-MASTER
