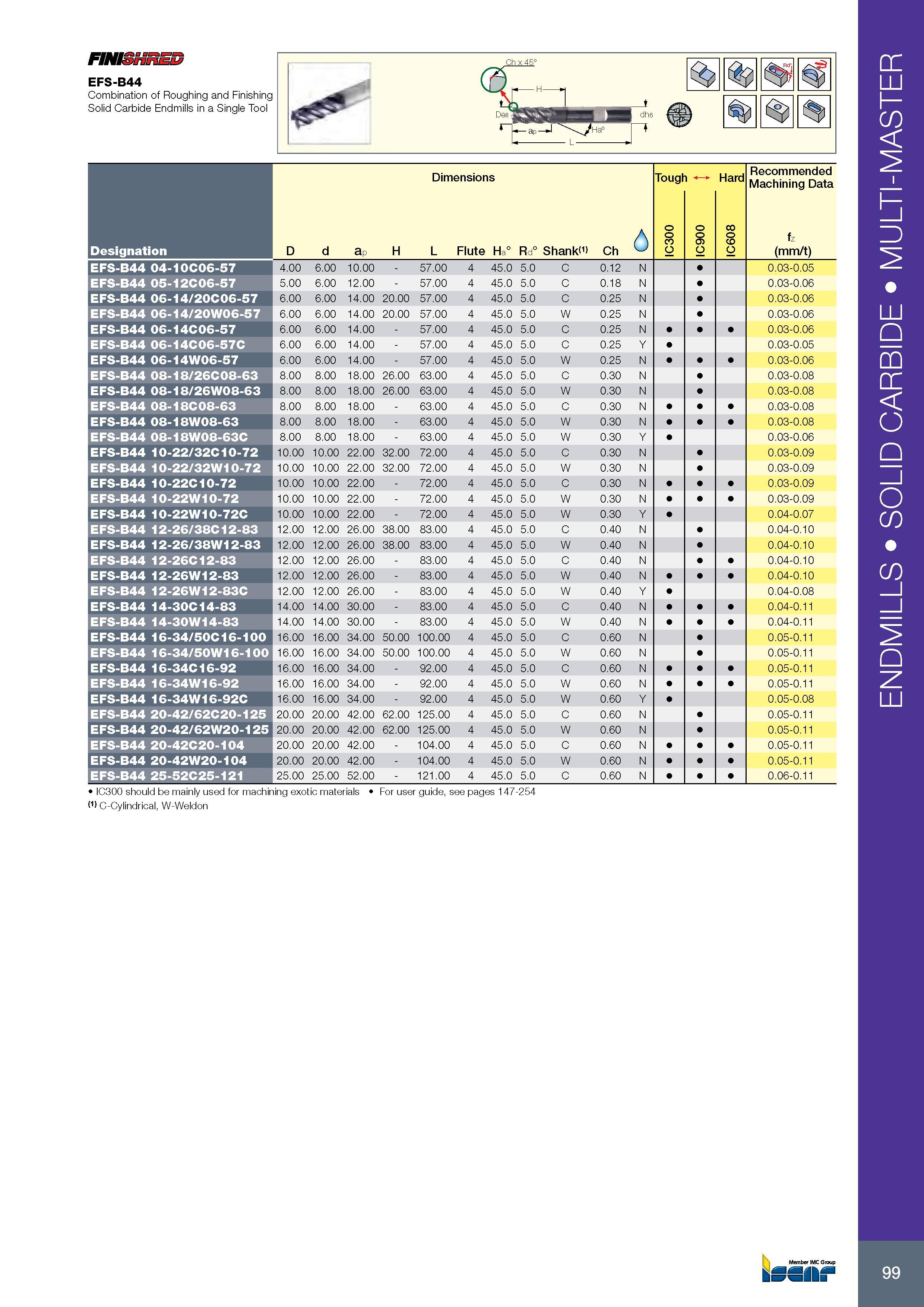

Концевые твердосплавные цельные фрезы Iscar Эскиз фрезерного инструмента с основными размерами Обозначение Режимы резания Подача на зуб EFS-B44 Combination

Концевые твердосплавные цельные фрезы Iscar Эскиз фрезерного инструмента с основными размерами Обозначение Режимы резания Подача на зуб EFS-B44 Combination of Roughing and Finishing Solid Carbide Endmills in a Single Tool Размеры в мм Dimensions Tough Hard Режимы резания при металлообработке Recommended Machining Data Обозначение Designation D d ap H L Flute Ha° Rd° Shanks Ch 6 IC300 IC900 IC608 Подача на зуб fz (mm/t) EFS-B44 04-10C06-57 4.00 6.00 10.00 - 57.00 4 45.0 5.0 C 0.12 N 0.03-0.05 EFS-B44 05-12C06-57 5.00 6.00 12.00 - 57.00 4 45.0 5.0 C 0.18 N 0.03-0.06 EFS-B44 06-14/20C06-57 6.00 6.00 14.00 20.00 57.00 4 45.0 5.0 C 0.25 N 0.03-0.06 EFS-B44 06-14/20W06-57 6.00 6.00 14.00 20.00 57.00 4 45.0 5.0 W 0.25 N 0.03-0.06 EFS-B44 06-14C06-57 6.00 6.00 14.00 - 57.00 4 45.0 5.0 C 0.25 N 0.03-0.06 EFS-B44 06-14C06-57C 6.00 6.00 14.00 - 57.00 4 45.0 5.0 C 0.25 Y 0.03-0.05 EFS-B44 06-14W06-57 6.00 6.00 14.00 - 57.00 4 45.0 5.0 W 0.25 N 0.03-0.06 EFS-B44 08-18/26C08-63 8.00 8.00 18.00 26.00 63.00 4 45.0 5.0 C 0.30 N 0.03-0.08 EFS-B44 08-18/26W08-63 8.00 8.00 18.00 26.00 63.00 4 45.0 5.0 W 0.30 N 0.03-0.08 EFS-B44 08-18C08-63 8.00 8.00 18.00 - 63.00 4 45.0 5.0 C 0.30 N 0.03-0.08 EFS-B44 08-18W08-63 8.00 8.00 18.00 - 63.00 4 45.0 5.0 W 0.30 N 0.03-0.08 EFS-B44 08-18W08-63C 8.00 8.00 18.00 - 63.00 4 45.0 5.0 W 0.30 Y 0.03-0.06 EFS-B44 10-22/32C10-72 10.00 10.00 22.00 32.00 72.00 4 45.0 5.0 C 0.30 N 0.03-0.09 EFS-B44 10-22/32W10-72 10.00 10.00 22.00 32.00 72.00 4 45.0 5.0 W 0.30 N 0.03-0.09 EFS-B44 10-22C10-72 10.00 10.00 22.00 - 72.00 4 45.0 5.0 C 0.30 N 0.03-0.09 EFS-B44 10-22W10-72 10.00 10.00 22.00 - 72.00 4 45.0 5.0 W 0.30 N 0.03-0.09 EFS-B44 10-22W10-72C 10.00 10.00 22.00 - 72.00 4 45.0 5.0 W 0.30 Y 0.04-0.07 EFS-B44 12-26/38C12-83 12.00 12.00 26.00 38.00 83.00 4 45.0 5.0 C 0.40 N 0.04-0.10 EFS-B44 12-26/38W12-83 12.00 12.00 26.00 38.00 83.00 4 45.0 5.0 W 0.40 N 0.04-0.10 EFS-B44 12-26C12-83 12.00 12.00 26.00 - 83.00 4 45.0 5.0 C 0.40 N 0.04-0.10 EFS-B44 12-26W12-83 12.00 12.00 26.00 - 83.00 4 45.0 5.0 W 0.40 N 0.04-0.10 EFS-B44 12-26W12-83C 12.00 12.00 26.00 - 83.00 4 45.0 5.0 W 0.40 Y 0.04-0.08 EFS-B44 14-30C14-83 14.00 14.00 30.00 - 83.00 4 45.0 5.0 C 0.40 N 0.04-0.11 EFS-B44 14-30W14-83 14.00 14.00 30.00 - 83.00 4 45.0 5.0 W 0.40 N 0.04-0.11 EFS-B44 16-34/50C16-100 16.00 16.00 34.00 50.00 100.00 4 45.0 5.0 C 0.60 N 0.05-0.11 EFS-B44 16-34/50W16-100 16.00 16.00 34.00 50.00 100.00 4 45.0 5.0 W 0.60 N 0.05-0.11 EFS-B44 16-34C16-92 16.00 16.00 34.00 - 92.00 4 45.0 5.0 C 0.60 N 0.05-0.11 EFS-B44 16-34W16-92 16.00 16.00 34.00 - 92.00 4 45.0 5.0 W 0.60 N 0.05-0.11 EFS-B44 16-34W16-92C 16.00 16.00 34.00 - 92.00 4 45.0 5.0 W 0.60 Y 0.05-0.08 EFS-B44 20-42/62C20-125 20.00 20.00 42.00 62.00 125.00 4 45.0 5.0 C 0.60 N 0.05-0.11 EFS-B44 20-42/62W20-125 20.00 20.00 42.00 62.00 125.00 4 45.0 5.0 W 0.60 N 0.05-0.11 EFS-B44 20-42C20-104 20.00 20.00 42.00 - 104.00 4 45.0 5.0 C 0.60 N 0.05-0.11 EFS-B44 20-42W20-104 20.00 20.00 42.00 - 104.00 4 45.0 5.0 W 0.60 N 0.05-0.11 EFS-B44 25-52C25-121 25.00 25.00 52.00 - 121.00 4 45.0 5.0 C 0.60 N 0.06-0.11 IC300 should be mainly used for machining exotic materials W Тип хвостовика инструмента C-Cylindrical (цилиндрический) W-Weldon For user guide, see pages 147-254 Member IMC Group kSSII t 99 ENDMILLS SOLID CARBIDE MULTI-MASTER
