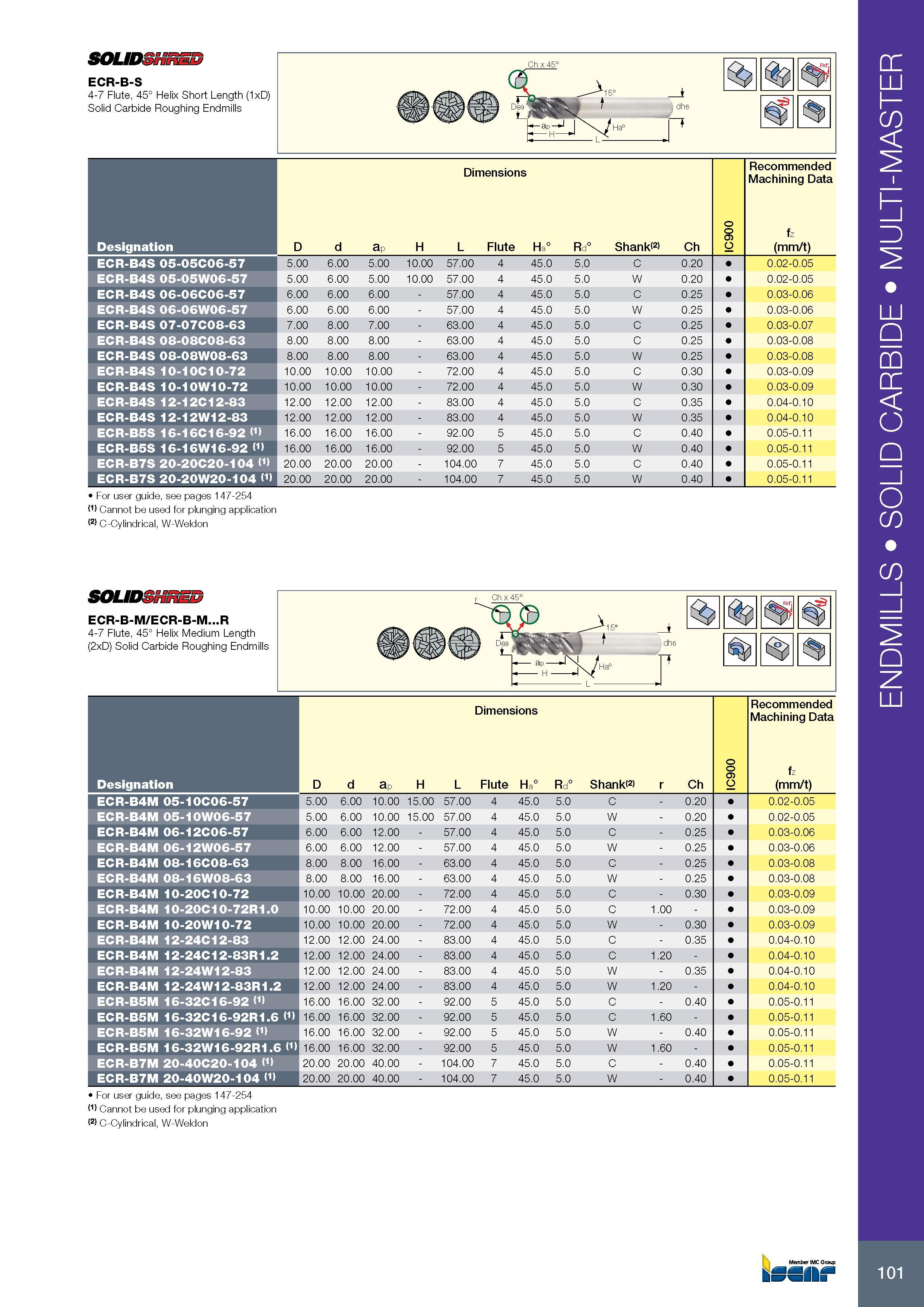

Концевые твердосплавные цельные фрезы Iscar Эскиз фрезерного инструмента с основными размерами Обозначение Режимы резания Подача на зуб ECR-B-S 4-7 Flute, 45° Helix Short Length (1xD) Solid Carbide Roughing Endmills Размеры в мм Dimensions IC900 Режимы резания при металлообработке Recommended Machining Data Подача на зуб fz (mm/t) Обозначение Designation D d ap H L Flute Ha° Rd° Shank<2> Ch ECR-B4S 05-05C06-57 5.00 6.00 5.00 10.00 57.00 4 45.0 5.0 C 0.20 0.02-0.05 ECR-B4S 05-05W06-57 5.00 6.00 5.00 10.00 57.00 4 45.0 5.0 W 0.20 0.02-0.05 ECR-B4S 06-06C06-57 6.00 6.00 6.00 - 57.00 4 45.0 5.0 C 0.25 0.03-0.06 ECR-B4S 06-06W06-57 6.00 6.00 6.00 - 57.00 4 45.0 5.0 W 0.25 0.03-0.06 ECR-B4S 07-07C08-63 7.00 8.00 7.00 - 63.00 4 45.0 5.0 C 0.25 0.03-0.07 ECR-B4S 08-08C08-63 8.00 8.00 8.00 - 63.00 4 45.0 5.0 C 0.25 0.03-0.08 ECR-B4S 08-08W08-63 8.00 8.00 8.00 - 63.00 4 45.0 5.0 W 0.25 0.03-0.08 ECR-B4S 10-10C10-72 10.00 10.00 10.00 - 72.00 4 45.0 5.0 C 0.30 0.03-0.09 ECR-B4S 10-10W10-72 10.00 10.00 10.00 - 72.00 4 45.0 5.0 W 0.30 0.03-0.09 ECR-B4S 12-12C12-83 12.00 12.00 12.00 - 83.00 4 45.0 5.0 C 0.35 0.04-0.10 ECR-B4S 12-12W12-83 12.00 12.00 12.00 - 83.00 4 45.0 5.0 W 0.35 0.04-0.10 ECR-B5S 16-16C16-92 <1> 16.00 16.00 16.00 - 92.00 5 45.0 5.0 C 0.40 0.05-0.11 ECR-B5S 16-16W16-92 <1> 16.00 16.00 16.00 - 92.00 5 45.0 5.0 W 0.40 0.05-0.11 ECR-B7S 20-20C20-104 <1> 20.00 20.00 20.00 - 104.00 7 45.0 5.0 C 0.40 0.05-0.11 ECR-B7S 20-20W20-104 <1> 20.00 20.00 20.00 - 104.00 7 45.0 5.0 W 0.40 0.05-0.11 For user guide, see pages 147-254 Cannot be used for plunging application (2) Тип хвостовика инструмента C-Cylindrical (цилиндрический) W-Weldon SOLID3HRSD ECR-B-M/ECR-B-M...R 4-7 Flute, 45° Helix Medium Length (2xD) Solid Carbide Roughing Endmills Размеры в мм Dimensions o 0 9 IC Режимы резания при металлообработке Recommended Machining Data Подача на зуб fz (mm/t) Обозначение Designation D d ap H L Flute Ha° Rd° Shank<2) r Ch ECR-B4M 05-10C06-57 5.00 6.00 10.00 15.00 57.00 4 45.0 5.0 C - 0.20 0.02-0.05 ECR-B4M 05-10W06-57 5.00 6.00 10.00 15.00 57.00 4 45.0 5.0 W - 0.20 0.02-0.05 ECR-B4M 06-12C06-57 6.00 6.00 12.00 - 57.00 4 45.0 5.0 C - 0.25 0.03-0.06 ECR-B4M 06-12W06-57 6.00 6.00 12.00 - 57.00 4 45.0 5.0 W - 0.25 0.03-0.06 ECR-B4M 08-16C08-63 8.00 8.00 16.00 - 63.00 4 45.0 5.0 C - 0.25 0.03-0.08 ECR-B4M 08-16W08-63 8.00 8.00 16.00 - 63.00 4 45.0 5.0 W - 0.25 0.03-0.08 ECR-B4M 10-20C10-72 10.00 10.00 20.00 - 72.00 4 45.0 5.0 C - 0.30 0.03-0.09 ECR-B4M 10-20C10-72R1.0 10.00 10.00 20.00 - 72.00 4 45.0 5.0 C 1.00 - 0.03-0.09 ECR-B4M 10-20W10-72 10.00 10.00 20.00 - 72.00 4 45.0 5.0 W - 0.30 0.03-0.09 ECR-B4M 12-24C12-83 12.00 12.00 24.00 - 83.00 4 45.0 5.0 C - 0.35 0.04-0.10 ECR-B4M 12-24C12-83R1.2 12.00 12.00 24.00 - 83.00 4 45.0 5.0 C 1.20 - 0.04-0.10 ECR-B4M 12-24W12-83 12.00 12.00 24.00 - 83.00 4 45.0 5.0 W - 0.35 0.04-0.10 ECR-B4M 12-24W12-83R1.2 12.00 12.00 24.00 - 83.00 4 45.0 5.0 W 1.20 - 0.04-0.10 ECR-B5M 16-32C16-92 <1> 16.00 16.00 32.00 - 92.00 5 45.0 5.0 C - 0.40 0.05-0.11 ECR-B5M 16-32C16-92R1.6 <1> 16.00 16.00 32.00 - 92.00 5 45.0 5.0 C 1.60 - 0.05-0.11 ECR-B5M 16-32W16-92 <1> 16.00 16.00 32.00 - 92.00 5 45.0 5.0 W - 0.40 0.05-0.11 ECR-B5M 16-32W16-92R1.6 <1> 16.00 16.00 32.00 - 92.00 5 45.0 5.0 W 1.60 - 0.05-0.11 ECR-B7M 20-40C20-104 <1> 20.00 20.00 40.00 - 104.00 7 45.0 5.0 C - 0.40 0.05-0.11 ECR-B7M 20-40W20-104 <1> 20.00 20.00 40.00 - 104.00 7 45.0 5.0 W - 0.40 0.05-0.11 For user guide, see pages 147-254 (1) Cannot be used for plunging application (2) Тип хвостовика инструмента C-Cylindrical (цилиндрический) W-Weldon 101 ENDMILLS SOLID CARBIDE MULTI-MASTER
