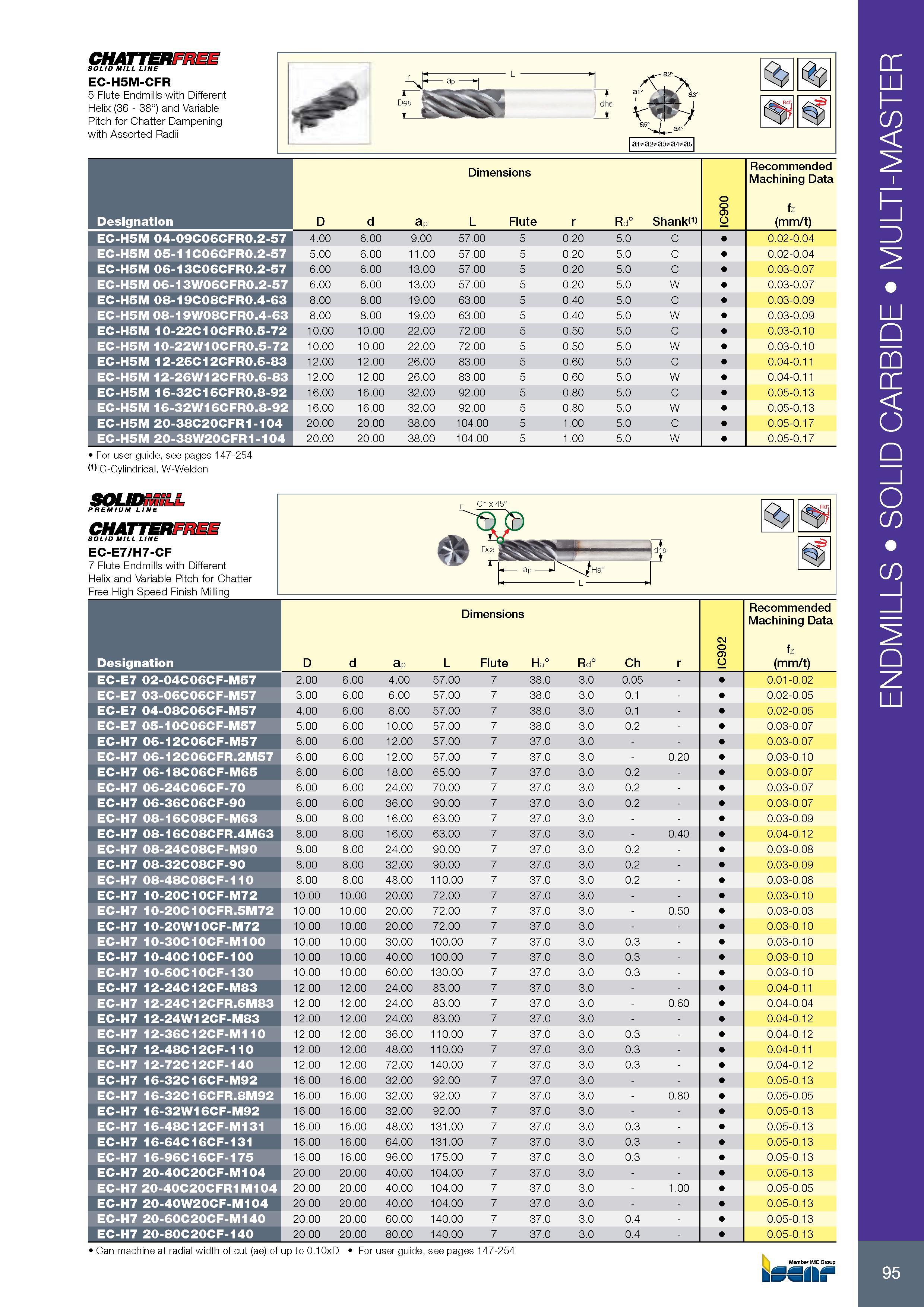

Концевые твердосплавные цельные фрезы Iscar Эскиз фрезерного инструмента с основными размерами Обозначение Режимы резания Подача на зуб CHATTERFREE SOLID MI

Концевые твердосплавные цельные фрезы Iscar Эскиз фрезерного инструмента с основными размерами Обозначение Режимы резания Подача на зуб CHATTERFREE SOLID MILL LINE EC-H5M-CFR 5 Flute Endmills with Different Helix (36 - 38°) and Variable Pitch for Chatter Dampening with Assorted Radii sF TV -a4° ai a2 a3 a4 as Размеры в мм Dimensions Режимы резания при металлообработке Recommended Machining Data Обозначение Designation D d ap L Flute r Rd° Shank IC900 Подача на зуб fz (mm/t) EC-H5M 04-09C06CFR0.2-57 4.00 6.00 9.00 57.00 5 0.20 5.0 C 0.02-0.04 EC-H5M 05-11C06CFR0.2-57 5.00 6.00 11.00 57.00 5 0.20 5.0 C 0.02-0.04 EC-H5M 06-13C06CFR0.2-57 6.00 6.00 13.00 57.00 5 0.20 5.0 C 0.03-0.07 EC-H5M 06-13W06CFR0.2-57 6.00 6.00 13.00 57.00 5 0.20 5.0 W 0.03-0.07 EC-H5M 08-19C08CFR0.4-63 8.00 8.00 19.00 63.00 5 0.40 5.0 C 0.03-0.09 EC-H5M 08-19W08CFR0.4-63 8.00 8.00 19.00 63.00 5 0.40 5.0 W 0.03-0.09 EC-H5M 10-22C10CFR0.5-72 10.00 10.00 22.00 72.00 5 0.50 5.0 C 0.03-0.10 EC-H5M 10-22W10CFR0.5-72 10.00 10.00 22.00 72.00 5 0.50 5.0 W 0.03-0.10 EC-H5M 12-26C12CFR0.6-83 12.00 12.00 26.00 83.00 5 0.60 5.0 C 0.04-0.11 EC-H5M 12-26W12CFR0.6-83 12.00 12.00 26.00 83.00 5 0.60 5.0 W 0.04-0.11 EC-H5M 16-32C16CFR0.8-92 16.00 16.00 32.00 92.00 5 0.80 5.0 C 0.05-0.13 EC-H5M 16-32W16CFR0.8-92 16.00 16.00 32.00 92.00 5 0.80 5.0 W 0.05-0.13 EC-H5M 20-38C20CFR1-104 20.00 20.00 38.00 104.00 5 1.00 5.0 C 0.05-0.17 EC-H5M 20-38W20CFR1-104 20.00 20.00 38.00 104.00 5 1.00 5.0 W 0.05-0.17 For user guide, see pages 147-254 W Тип хвостовика инструмента C-Cylindrical (цилиндрический) W-Weldon SOLIDmiLL PREMIUM LINE CHATTERFREE SOLID MILL LINE EC-E7/H7-CF 7 Flute Endmills with Different Helix and Variable Pitch for Chatter Free High Speed Finish Milling Размеры в мм Dimensions IC902 Режимы резания при металлообработке Recommended Machining Data Подача на зуб fz (mm/t) Обозначение Designation D d ap L Flute Ha° Rd° Ch r EC-E7 02-04C06CF-M57 2.00 6.00 4.00 57.00 7 38.0 3.0 0.05 - 0.01-0.02 EC-E7 03-06C06CF-M57 3.00 6.00 6.00 57.00 7 38.0 3.0 0.1 - 0.02-0.05 EC-E7 04-08C06CF-M57 4.00 6.00 8.00 57.00 7 38.0 3.0 0.1 - 0.02-0.05 EC-E7 05-10C06CF-M57 5.00 6.00 10.00 57.00 7 38.0 3.0 0.2 - 0.03-0.07 EC-H7 06-12C06CF-M57 6.00 6.00 12.00 57.00 7 37.0 3.0 0.03-0.07 EC-H7 06-12C06CFR.2M57 6.00 6.00 12.00 57.00 7 37.0 3.0 - 0.20 0.03-0.10 EC-H7 06-18C06CF-M65 6.00 6.00 18.00 65.00 7 37.0 3.0 0.2 - 0.03-0.07 EC-H7 06-24C06CF-70 6.00 6.00 24.00 70.00 7 37.0 3.0 0.2 - 0.03-0.07 EC-H7 06-36C06CF-90 6.00 6.00 36.00 90.00 7 37.0 3.0 0.2 - 0.03-0.07 EC-H7 08-16C08CF-M63 8.00 8.00 16.00 63.00 7 37.0 3.0 0.03-0.09 EC-H7 08-16C08CFR.4M63 8.00 8.00 16.00 63.00 7 37.0 3.0 - 0.40 0.04-0.12 EC-H7 08-24C08CF-M90 8.00 8.00 24.00 90.00 7 37.0 3.0 0.2 - 0.03-0.08 EC-H7 08-32C08CF-90 8.00 8.00 32.00 90.00 7 37.0 3.0 0.2 - 0.03-0.09 EC-H7 08-48C08CF-110 8.00 8.00 48.00 110.00 7 37.0 3.0 0.2 - 0.03-0.08 EC-H7 10-20C10CF-M72 10.00 10.00 20.00 72.00 7 37.0 3.0 0.03-0.10 EC-H7 10-20C10CFR.5M72 10.00 10.00 20.00 72.00 7 37.0 3.0 - 0.50 0.03-0.03 EC-H7 10-20W10CF-M72 10.00 10.00 20.00 72.00 7 37.0 3.0 0.03-0.10 EC-H7 10-30C10CF-M100 10.00 10.00 30.00 100.00 7 37.0 3.0 0.3 - 0.03-0.10 EC-H7 10-40C10CF-100 10.00 10.00 40.00 100.00 7 37.0 3.0 0.3 - 0.03-0.10 EC-H7 10-60C10CF-130 10.00 10.00 60.00 130.00 7 37.0 3.0 0.3 - 0.03-0.10 EC-H7 12-24C12CF-M83 12.00 12.00 24.00 83.00 7 37.0 3.0 0.04-0.11 EC-H7 12-24C12CFR.6M83 12.00 12.00 24.00 83.00 7 37.0 3.0 - 0.60 0.04-0.04 EC-H7 12-24W12CF-M83 12.00 12.00 24.00 83.00 7 37.0 3.0 0.04-0.12 EC-H7 12-36C12CF-M110 12.00 12.00 36.00 110.00 7 37.0 3.0 0.3 - 0.04-0.12 EC-H7 12-48C12CF-110 12.00 12.00 48.00 110.00 7 37.0 3.0 0.3 - 0.04-0.11 EC-H7 12-72C12CF-140 12.00 12.00 72.00 140.00 7 37.0 3.0 0.3 - 0.04-0.12 EC-H7 16-32C16CF-M92 16.00 16.00 32.00 92.00 7 37.0 3.0 0.05-0.13 EC-H7 16-32C16CFR.8M92 16.00 16.00 32.00 92.00 7 37.0 3.0 - 0.80 0.05-0.05 EC-H7 16-32W16CF-M92 16.00 16.00 32.00 92.00 7 37.0 3.0 0.05-0.13 EC-H7 16-48C12CF-M131 16.00 16.00 48.00 131.00 7 37.0 3.0 0.3 - 0.05-0.13 EC-H7 16-64C16CF-131 16.00 16.00 64.00 131.00 7 37.0 3.0 0.3 - 0.05-0.13 EC-H7 16-96C16CF-175 16.00 16.00 96.00 175.00 7 37.0 3.0 0.3 - 0.05-0.13 EC-H7 20-40C20CF-M104 20.00 20.00 40.00 104.00 7 37.0 3.0 0.05-0.13 EC-H7 20-40C20CFR1M104 20.00 20.00 40.00 104.00 7 37.0 3.0 - 1.00 0.05-0.05 EC-H7 20-40W20CF-M104 20.00 20.00 40.00 104.00 7 37.0 3.0 0.05-0.13 EC-H7 20-60C20CF-M140 20.00 20.00 60.00 140.00 7 37.0 3.0 0.4 - 0.05-0.13 EC-H7 20-80C20CF-140 20.00 20.00 80.00 140.00 7 37.0 3.0 0.4 - 0.05-0.13 Can machine at radial width of cut (ae) of up to 0.10xD For user guide, see pages 147-254 Member IMC Group kSSII t L 95 ENDMILLS SOLID CARBIDE MULTI-MASTER
