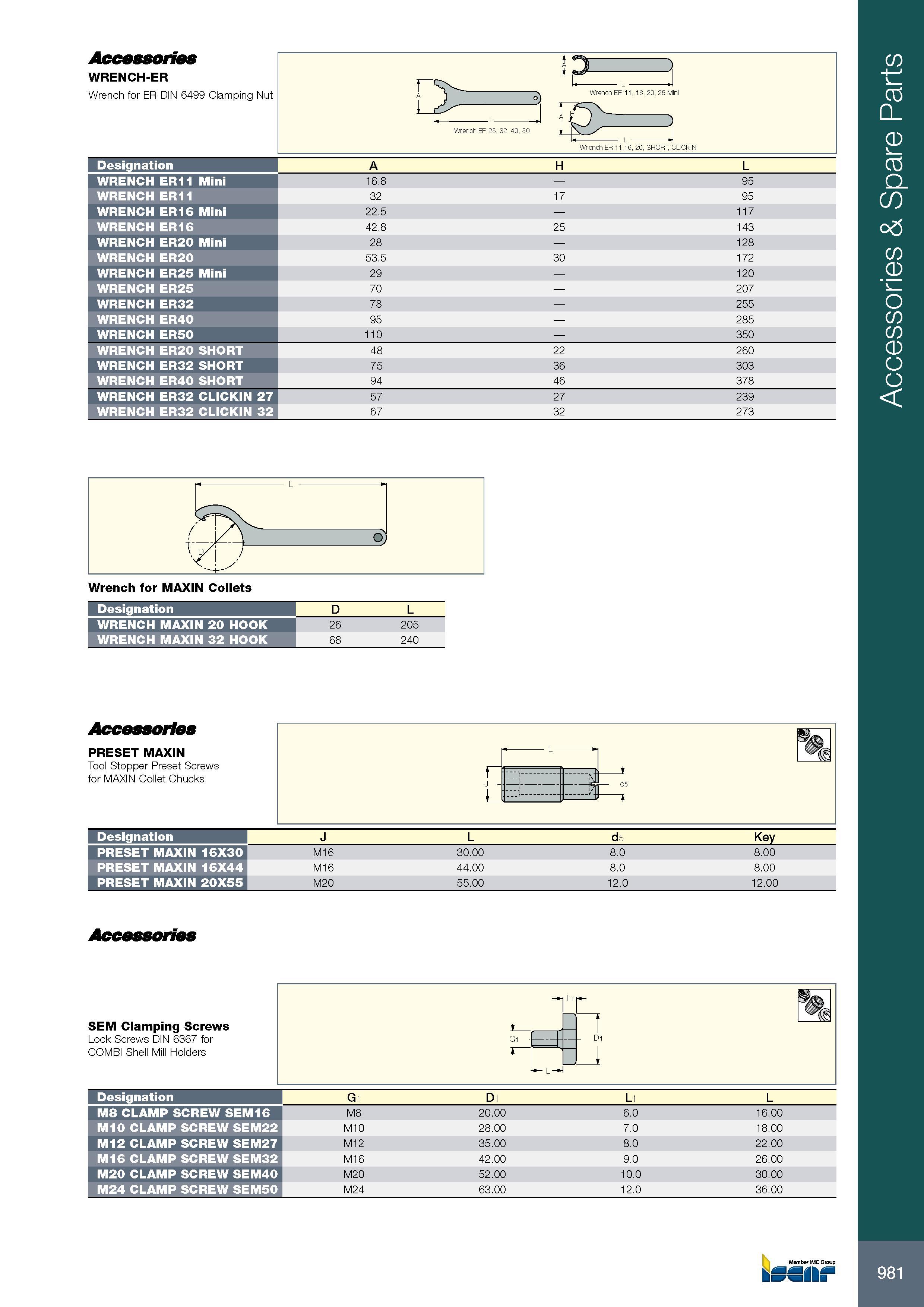

985 Каталог ISCAR 2017 Вращающийся режущий инструмент и инструментальная оснастка Стр.981

Каталог ISCAR 2017 Ротационный инструмент Стр. 981 0985 ENG Lab2u

Accessories WRENCH-ER Wrench for ER DIN 6499 Clamping Nut P Wrench ER 11, 16, 20, 25 Mini Wrench ER 25, 32, 40, 50 Wrench ER 11,16, 20, SHORT CLICKIN Обозначение Designation A H L WRENCH ER11 Mini 16.8 95 WRENCH ER11 32 17 95 WRENCH ER16 Mini 22.5 117 WRENCH ER16 42.8 25 143 WRENCH ER20 Mini 28 128 WRENCH ER20 53.5 30 172 WRENCH ER25 Mini 29 120 WRENCH ER25 70 207 WRENCH ER32 78 255 WRENCH ER40 95 285 WRENCH ER50 110 350 WRENCH ER20 SHORT 48 22 260 WRENCH ER32 SHORT 75 36 303 WRENCH ER40 SHORT 94 46 378 WRENCH ER32 CLICKIN 27 57 27 239 WRENCH ER32 CLICKIN 32 67 32 273 Обозначение Designation D L WRENCH MAXIN 20 HOOK 26 205 WRENCH MAXIN 32 HOOK 68 240 Accessories PRESET MAXIN Tool Stopper Preset Screws for MAXIN Collet Chucks L 1 J -1 r- d- \ „k + Accessories Обозначение Designation J L d5 Key PRESET MAXIN 16X30 M16 30.00 8.0 8.00 PRESET MAXIN 16X44 M16 44.00 8.0 8.00 PRESET MAXIN 20X55 M20 55.00 12.0 12.00 SEM Clamping Screws Lock Screws DIN 6367 for COMBI Shell Mill Holders L1 t I G1 1 h - D1 I U- L- - Обозначение Designation G1 D1 L1 L M8 CLAMP SCREW SEM16 M8 20.00 6.0 16.00 M10 CLAMP SCREW SEM22 M10 28.00 7.0 18.00 M12 CLAMP SCREW SEM27 M12 35.00 8.0 22.00 M16 CLAMP SCREW SEM32 M16 42.00 9.0 26.00 M20 CLAMP SCREW SEM40 M20 52.00 10.0 30.00 M24 CLAMP SCREW SEM50 M24 63.00 12.0 36.00 Member IMC Group kSSII t A 981 Accessories & Spare Parts
