982 Каталог ISCAR 2017 Вращающийся режущий инструмент и инструментальная оснастка Стр.978

Каталог ISCAR 2017 Ротационный инструмент Стр. 978 0982 ENG Lab2u

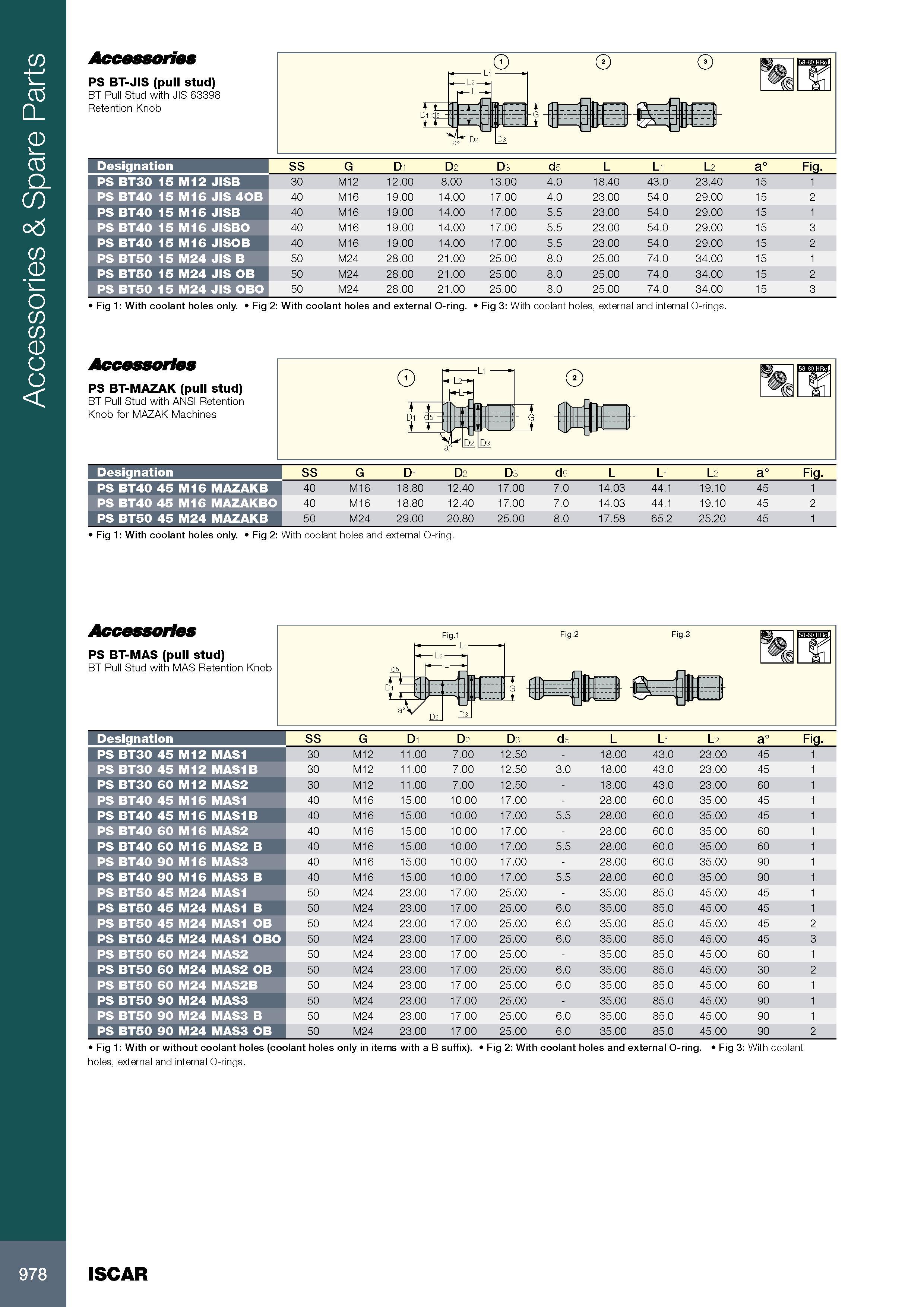

Accessories & Spare Parts Accessories PS BT-JIS (pull stud) BT Pull Stud with JIS 63398 Retention Knob Обозначение Designation SS G D1 D2 D3 d5 L L1 L2 a° Fig. PS BT30 15 M12 JISB 30 M12 12.00 8.00 13.00 4.0 18.40 43.0 23.40 15 1 PS BT40 15 M16 JIS 4OB 40 M16 19.00 14.00 17.00 4.0 23.00 54.0 29.00 15 2 PS BT40 15 M16 JISB 40 M16 19.00 14.00 17.00 5.5 23.00 54.0 29.00 15 1 PS BT40 15 M16 JISBO 40 M16 19.00 14.00 17.00 5.5 23.00 54.0 29.00 15 3 PS BT40 15 M16 JISOB 40 M16 19.00 14.00 17.00 5.5 23.00 54.0 29.00 15 2 PS BT50 15 M24 JIS B 50 M24 28.00 21.00 25.00 8.0 25.00 74.0 34.00 15 1 PS BT50 15 M24 JIS OB 50 M24 28.00 21.00 25.00 8.0 25.00 74.0 34.00 15 2 PS BT50 15 M24 JIS OBO 50 M24 28.00 21.00 25.00 8.0 25.00 74.0 34.00 15 3 Fig 1: With coolant holes only. Fig 2: With coolant holes and external O-ring. Fig 3: With coolant holes, external and internal O-rings. Accessories PS BT-MAZAK (pull stud) BT Pull Stud with ANSI Retention Knob for MAZAK Machines Обозначение Designation SS G D1 D2 D3 d5 L L1 L2 a° Fig. PS BT40 45 M16 MAZAKB 40 M16 18.80 12.40 17.00 7.0 14.03 44.1 19.10 45 1 PS BT40 45 M16 MAZAKBO 40 M16 18.80 12.40 17.00 7.0 14.03 44.1 19.10 45 2 PS BT50 45 M24 MAZAKB 50 M24 29.00 20.80 25.00 8.0 17.58 65.2 25.20 45 1 Fig 1: With coolant holes only. Fig 2: With coolant holes and external O-ring. Accessories PS BT-MAS (pull stud) BT Pull Stud with MAS Retention Knob d5 DT ’ Fig.1 Li 1 Fig.2 Fig. HUl II- 1) 1 1 / D2 -i D3 fU j I Обозначение Designation SS G D1 D2 D3 d5 L L1 L2 a° Fig. PS BT30 45 M12 MAS1 30 M12 11.00 7.00 12.50 - 18.00 43.0 23.00 45 1 PS BT30 45 M12 MAS1B 30 M12 11.00 7.00 12.50 3.0 18.00 43.0 23.00 45 1 PS BT30 60 M12 MAS2 30 M12 11.00 7.00 12.50 - 18.00 43.0 23.00 60 1 PS BT40 45 M16 MAS1 40 M16 15.00 10.00 17.00 - 28.00 60.0 35.00 45 1 PS BT40 45 M16 MAS1B 40 M16 15.00 10.00 17.00 5.5 28.00 60.0 35.00 45 1 PS BT40 60 M16 MAS2 40 M16 15.00 10.00 17.00 - 28.00 60.0 35.00 60 1 PS BT40 60 M16 MAS2 B 40 M16 15.00 10.00 17.00 5.5 28.00 60.0 35.00 60 1 PS BT40 90 M16 MAS3 40 M16 15.00 10.00 17.00 - 28.00 60.0 35.00 90 1 PS BT40 90 M16 MAS3 B 40 M16 15.00 10.00 17.00 5.5 28.00 60.0 35.00 90 1 PS BT50 45 M24 MAS1 50 M24 23.00 17.00 25.00 - 35.00 85.0 45.00 45 1 PS BT50 45 M24 MAS1 B 50 M24 23.00 17.00 25.00 6.0 35.00 85.0 45.00 45 1 PS BT50 45 M24 MAS1 OB 50 M24 23.00 17.00 25.00 6.0 35.00 85.0 45.00 45 2 PS BT50 45 M24 MAS1 OBO 50 M24 23.00 17.00 25.00 6.0 35.00 85.0 45.00 45 3 PS BT50 60 M24 MAS2 50 M24 23.00 17.00 25.00 - 35.00 85.0 45.00 60 1 PS BT50 60 M24 MAS2 OB 50 M24 23.00 17.00 25.00 6.0 35.00 85.0 45.00 30 2 PS BT50 60 M24 MAS2B 50 M24 23.00 17.00 25.00 6.0 35.00 85.0 45.00 60 1 PS BT50 90 M24 MAS3 50 M24 23.00 17.00 25.00 - 35.00 85.0 45.00 90 1 PS BT50 90 M24 MAS3 B 50 M24 23.00 17.00 25.00 6.0 35.00 85.0 45.00 90 1 PS BT50 90 M24 MAS3 OB 50 M24 23.00 17.00 25.00 6.0 35.00 85.0 45.00 90 2 Fig 1: With or without coolant holes (coolant holes only in items with a B suffix). Fig 2: With coolant holes and external O-ring. Fig 3: With coolant holes, external and internal O-rings. 978 ISCAR
