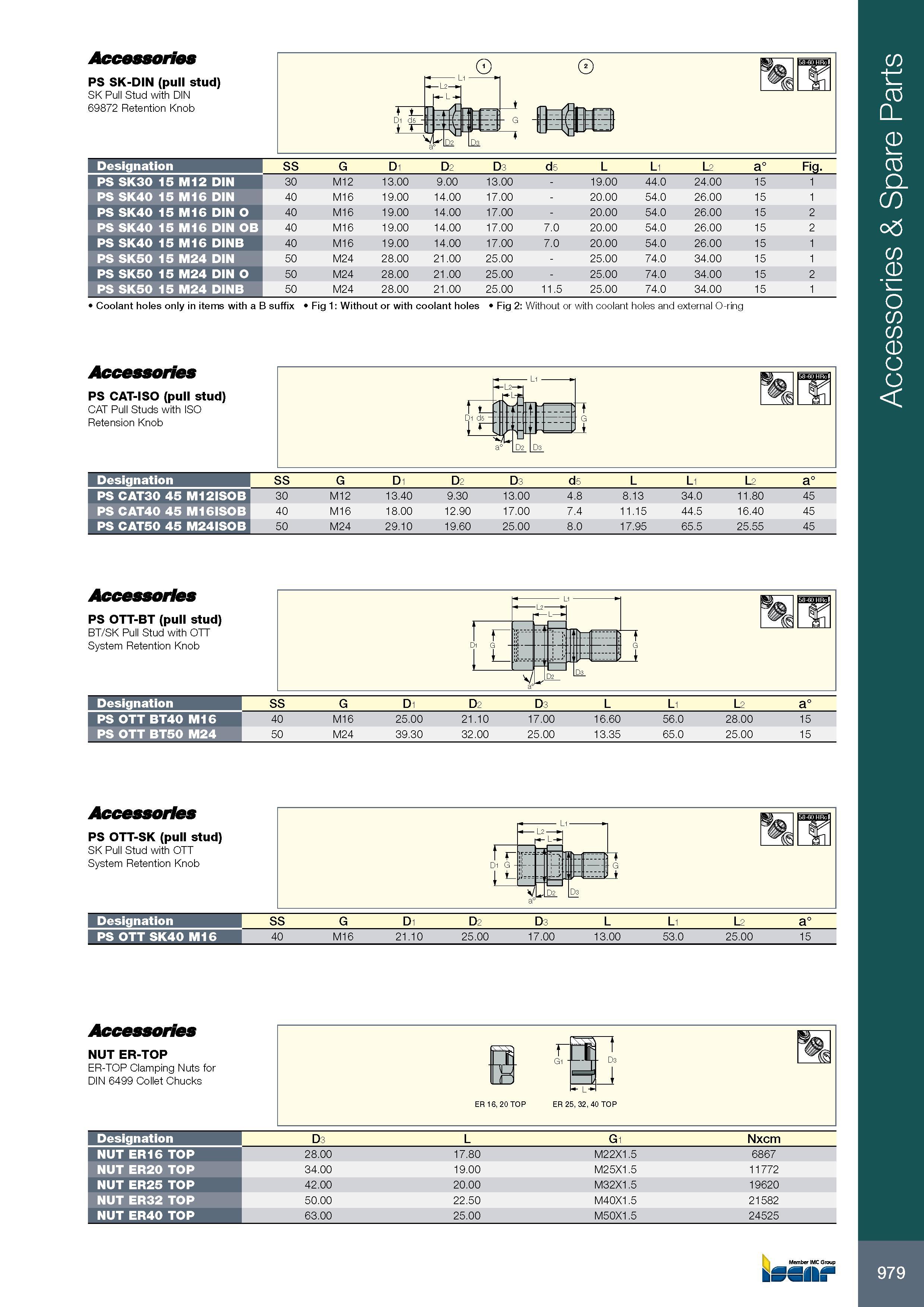

983 Каталог ISCAR 2017 Вращающийся режущий инструмент и инструментальная оснастка Стр.979

Каталог ISCAR 2017 Ротационный инструмент Стр. 979 0983 ENG Lab2u

Accessories PS SK-DIN (pull stud) SK Pull Stud with DIN 69872 Retention Knob Обозначение Designation SS G D1 D2 D3 d5 L L1 L2 a° Fig. PS SK30 15 M12 DIN 30 M12 13.00 9.00 13.00 - 19.00 44.0 24.00 15 1 PS SK40 15 M16 DIN 40 M16 19.00 14.00 17.00 - 20.00 54.0 26.00 15 1 PS SK40 15 M16 DIN O 40 M16 19.00 14.00 17.00 - 20.00 54.0 26.00 15 2 PS SK40 15 M16 DIN OB 40 M16 19.00 14.00 17.00 7.0 20.00 54.0 26.00 15 2 PS SK40 15 M16 DINB 40 M16 19.00 14.00 17.00 7.0 20.00 54.0 26.00 15 1 PS SK50 15 M24 DIN 50 M24 28.00 21.00 25.00 - 25.00 74.0 34.00 15 1 PS SK50 15 M24 DIN O 50 M24 28.00 21.00 25.00 - 25.00 74.0 34.00 15 2 PS SK50 15 M24 DINB 50 M24 28.00 21.00 25.00 11.5 25.00 74.0 34.00 15 1 Coolant holes only in items with a B suffix Fig 1: Without or with coolant holes Fig 2: Without or with coolant holes and external O-ring Accessories PS CAT-ISO (pull stud) CAT Pull Studs with ISO Retension Knob Обозначение Designation PS CAT30 45 M12ISOB PS CAT40 45 M16ISOB PS CAT50 45 M24ISOB SS G D1 D2 D3 d5 L L L2 a° 30 M12 13.40 9.30 13.00 4.8 8.13 34.0 11.80 45 40 M16 18.00 12.90 17.00 7.4 11.15 44.5 16.40 45 50 M24 29.10 19.60 25.00 8.0 17.95 65.5 25.55 45 Accessories PS OTT-BT (pull stud) BT/SK Pull Stud with OTT System Retention Knob Обозначение Designation PS OTT BT40 M16 PS OTT BT50 M24 SS G D1 D2 D3 L L1 L2 a° 40 M16 25.00 21.10 17.00 16.60 56.0 28.00 15 50 M24 39.30 32.00 25.00 13.35 65.0 25.00 15 Accessories PS OTT-SK (pull stud) SK Pull Stud with OTT System Retention Knob Обозначение Designation I SS G D1 D2 D3 L L1 L2 a° PS OTT SK40 M16 40 M16 21.10 25.00 17.00 13.00 53.0 25.00 15 Accessories NUT ER-TOP ER-TOP Clamping Nuts for DIN 6499 Collet Chucks Обозначение Designation NUT ER16 TOP NUT ER20 TOP NUT ER25 TOP NUT ER32 TOP NUT ER40 TOP B ER 16, 20 TOP ER 25, 32, 40 TOP D3 L G1 Nxcm 28.00 34.00 42.00 50.00 63.00 17.80 19.00 20.00 22.50 25.00 M22X1.5 M25X1.5 M32X1.5 M40X1.5 M50X1.5 6867 11772 19620 21582 24525 L 979
