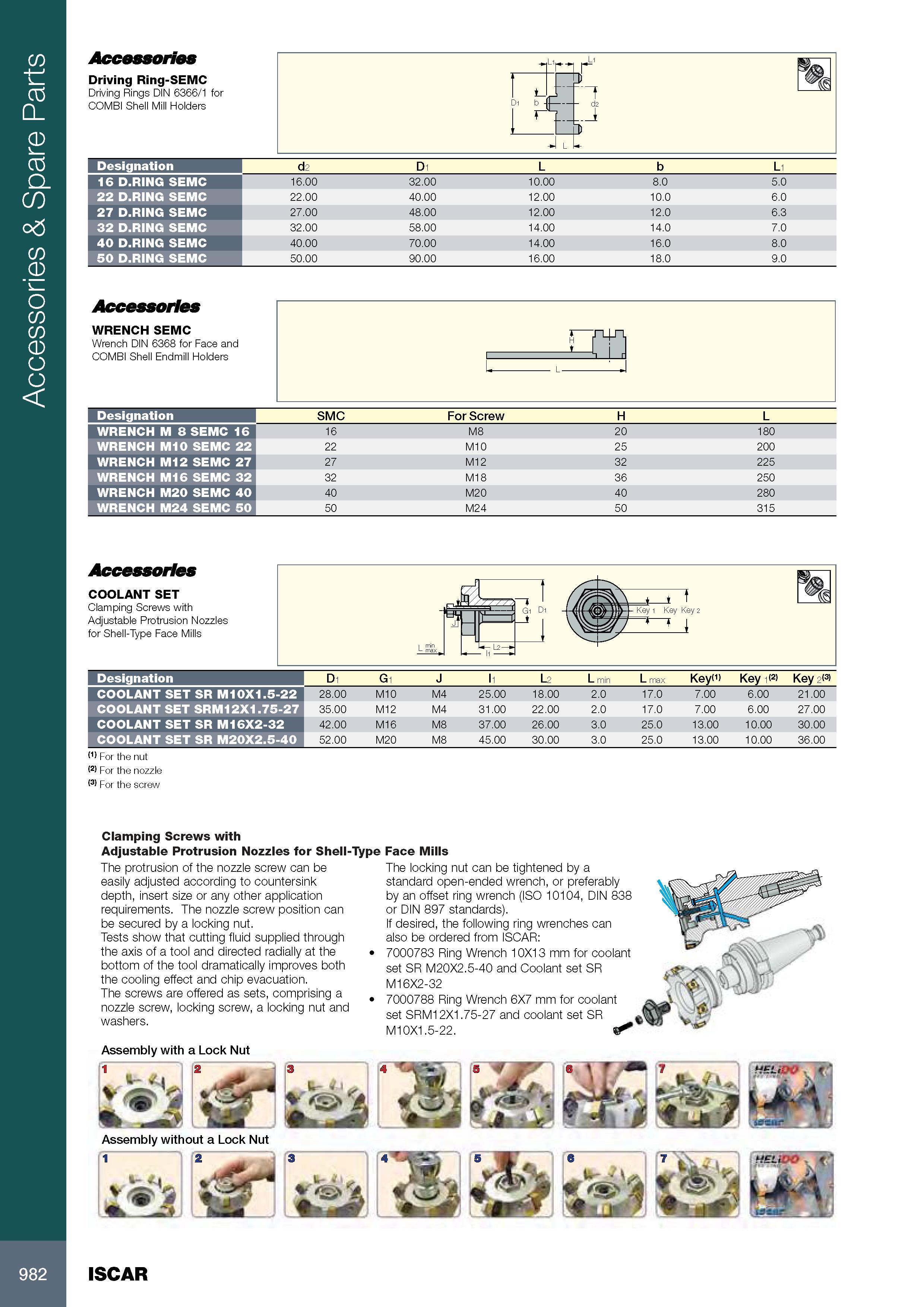

Accessories & Spare Parts Accessories Driving Ring-SEMC Driving Rings DIN 6366/1 for COMBI Shell Mill Holders -I L1 L1 ,r J H I r c L 1 1 i J L Обозначение Designation d2 D1 L b L1 16 D.RING SEMC 16.00 32.00 10.00 8.0 5.0 22 D.RING SEMC 22.00 40.00 12.00 10.0 6.0 27 D.RING SEMC 27.00 48.00 12.00 12.0 6.3 32 D.RING SEMC 32.00 58.00 14.00 14.0 7.0 40 D.RING SEMC 40.00 70.00 14.00 16.0 8.0 50 D.RING SEMC 50.00 90.00 16.00 18.0 9.0 Accessories WRENCH SEMC Wrench DIN 6368 for Face and COMBI Shell Endmill Holders rrn L L Обозначение Designation SMC For Screw H L WRENCH M 8 SEMC 16 16 M8 20 180 WRENCH M10 SEMC 22 22 M10 25 200 WRENCH M12 SEMC 27 27 M12 32 225 WRENCH M16 SEMC 32 32 M18 36 250 WRENCH M20 SEMC 40 40 M20 40 280 WRENCH M24 SEMC 50 50 M24 50 315 Accessories COOLANT SET Clamping Screws with Adjustable Protrusion Nozzles for Shell-Type Face Mills (1) For the nut (2) For the nozzle (3) For the screw Обозначение Designation D1 G1 J l1 L2 L min L max KeyM) Key 1 (2) Key 2(3) COOLANT SET SR M10X1.5-22 28.00 M10 M4 25.00 18.00 2.0 17.0 7.00 6.00 21.00 COOLANT SET SRM12X1.75-27 35.00 M12 M4 31.00 22.00 2.0 17.0 7.00 6.00 27.00 COOLANT SET SR M16X2-32 42.00 M16 M8 37.00 26.00 3.0 25.0 13.00 10.00 30.00 COOLANT SET SR M20X2.5-40 52.00 M20 M8 45.00 30.00 3.0 25.0 13.00 10.00 36.00 Clamping Screws with Adjustable Protrusion Nozzles for Shell-Type The protrusion of the nozzle screw can be easily adjusted according to countersink depth, insert size or any other application requirements. The nozzle screw position can be secured by a locking nut. Tests show that cutting fluid supplied through the axis of a tool and directed radially at the bottom of the tool dramatically improves both the cooling effect and chip evacuation. The screws are offered as sets, comprising a nozzle screw, locking screw, a locking nut and washers. Assembly with a Lock Nut Face Mills The locking nut can be tightened by a standard open-ended wrench, or preferably by an offset ring wrench (ISO 10104, DIN 838 or DIN 897 standards). If desired, the following ring wrenches can also be ordered from ISCAR: 7000783 Ring Wrench 10X13 mm for coolant set SR M20X2.5-40 and Coolant set SR M16X2-32 7000788 Ring Wrench 6X7 mm for coolant set SRM12X1.75-27 and coolant set SR M10X1.5-22. 6 982 ISCAR
