987 Каталог ISCAR 2017 Вращающийся режущий инструмент и инструментальная оснастка Стр.983

Каталог ISCAR 2017 Ротационный инструмент Стр. 983 0987 ENG Lab2u

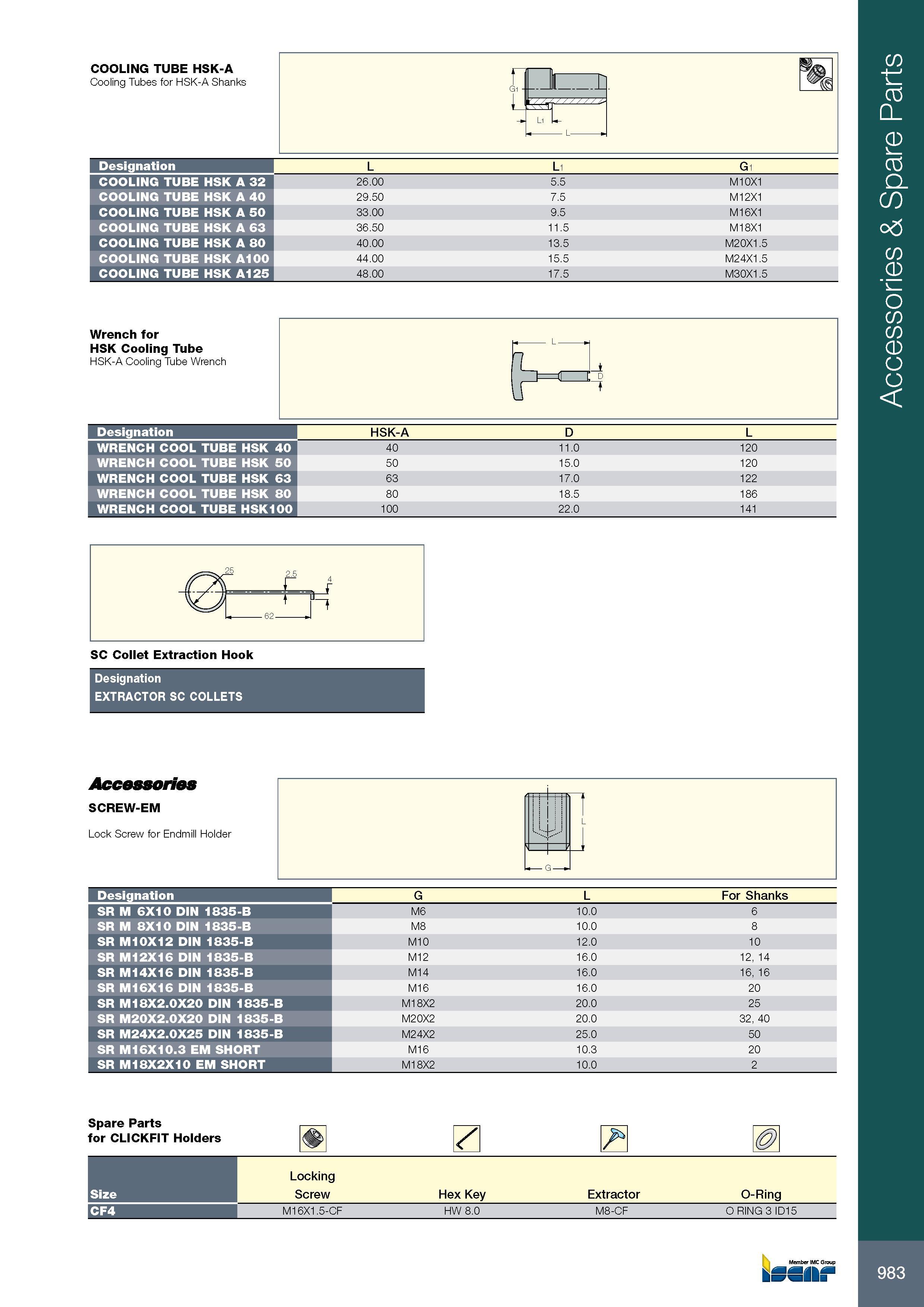

COOLING TUBE HSK-A Cooling Tubes for HSK-A Shanks nrtzra L Обозначение Designation L L1 G1 COOLING TUBE HSK A 32 26.00 5.5 M10X1 COOLING TUBE HSK A 40 29.50 7.5 M12X1 COOLING TUBE HSK A 50 33.00 9.5 M16X1 COOLING TUBE HSK A 63 36.50 11.5 M18X1 COOLING TUBE HSK A 80 40.00 13.5 M20X1.5 COOLING TUBE HSK A100 44.00 15.5 M24X1.5 COOLING TUBE HSK A125 48.00 17.5 M30X1.5 Wrench for HSK Cooling Tube HSK-A Cooling Tube Wrench 1 Обозначение Designation HSK-A D L WRENCH COOL TUBE HSK 40 40 11.0 120 WRENCH COOL TUBE HSK 50 50 15.0 120 WRENCH COOL TUBE HSK 63 63 17.0 122 WRENCH COOL TUBE HSK 80 80 18.5 186 WRENCH COOL TUBE HSK100 100 22.0 141 SC Collet Extraction Hook Обозначение Designation EXTRACTOR SC COLLETS Accessories SCREW-EM Lock Screw for Endmill Holder l 1 Обозначение Designation G L For Shanks SR M 6X10 DIN 1835-B M6 10.0 6 SR M 8X10 DIN 1835-B M8 10.0 8 SR M10X12 DIN 1835-B M10 12.0 10 SR M12X16 DIN 1835-B M12 16.0 12, 14 SR M14X16 DIN 1835-B M14 16.0 16, 16 SR M16X16 DIN 1835-B M16 16.0 20 SR M18X2.0X20 DIN 1835-B M18X2 20.0 25 SR M20X2.0X20 DIN 1835-B M20X2 20.0 32, 40 SR M24X2.0X25 DIN 1835-B M24X2 25.0 50 SR M16X10.3 EM SHORT M16 10.3 20 SR M18X2X10 EM SHORT M18X2 10.0 2 Spare Parts for CLICKFIT Holders Locking Screw Hex Key Extractor O-Ring M16X1.5-CF HW 8.0 M8-CF O RING 3 ID15 983 Size CF4
