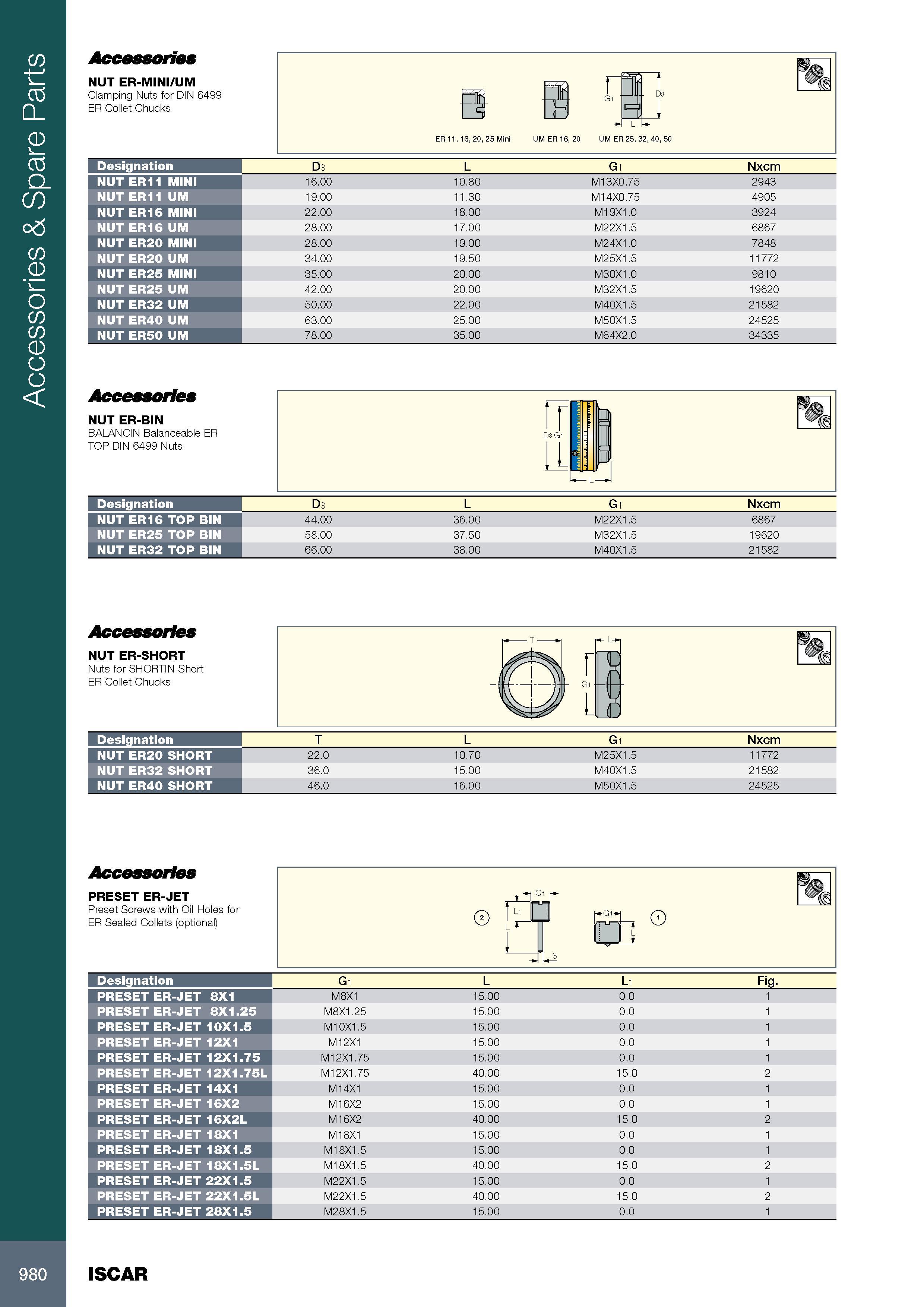

Accessories & Spare Parts Accessories NUT ER-MINI/UM Clamping Nuts for DIN 6499 ER Collet Chucks Accessories NUT ER-BIN BALANCIN Balanceable ER TOP DIN 6499 Nuts Обозначение Designation D3 L G1 Nxcm NUT ER11 MINI 16.00 10.80 M13X0.75 2943 NUT ER11 UM 19.00 11.30 M14X0.75 4905 NUT ER16 MINI 22.00 18.00 M19X1.0 3924 NUT ER16 UM 28.00 17.00 M22X1.5 6867 NUT ER20 MINI 28.00 19.00 M24X1.0 7848 NUT ER20 UM 34.00 19.50 M25X1.5 11772 NUT ER25 MINI 35.00 20.00 M30X1.0 9810 NUT ER25 UM 42.00 20.00 M32X1.5 19620 NUT ER32 UM 50.00 22.00 M40X1.5 21582 NUT ER40 UM 63.00 25.00 M50X1.5 24525 NUT ER50 UM 78.00 35.00 M64X2.0 34335 Обозначение Designation D3 L G1 Nxcm NUT ER16 TOP BIN 44.00 36.00 M22X1.5 6867 NUT ER25 TOP BIN 58.00 37.50 M32X1.5 19620 NUT ER32 TOP BIN 66.00 38.00 M40X1.5 21582 Accessories NUT ER-SHORT Nuts for SHORTIN Short ER Collet Chucks T L G1 Nxcm NUT ER20 SHORT 22.0 10.70 M25X1.5 11772 NUT ER32 SHORT 36.0 15.00 M40X1.5 21582 NUT ER40 SHORT 46.0 16.00 M50X1.5 24525 Accessories PRESET ER-JET Preset Screws with Oil Holes for ER Sealed Collets (optional) S L J rGji f DU % 3 Обозначение Designation G1 L L1 Fig. PRESET ER-JET 8X1 M8X1 15.00 0.0 1 PRESET ER-JET 8X1.25 M8X1.25 15.00 0.0 1 PRESET ER-JET 10X1.5 M10X1.5 15.00 0.0 1 PRESET ER-JET 12X1 M12X1 15.00 0.0 1 PRESET ER-JET 12X1.75 M12X1.75 15.00 0.0 1 PRESET ER-JET 12X1.75L M12X1.75 40.00 15.0 PRESET ER-JET 14X1 M14X1 15.00 0.0 1 PRESET ER-JET 16X2 M16X2 15.00 0.0 1 PRESET ER-JET 16X2L M16X2 40.00 15.0 PRESET ER-JET 18X1 M18X1 15.00 0.0 1 PRESET ER-JET 18X1.5 M18X1.5 15.00 0.0 1 PRESET ER-JET 18X1.5L M18X1.5 40.00 15.0 PRESET ER-JET 22X1.5 M22X1.5 15.00 0.0 1 PRESET ER-JET 22X1.5L M22X1.5 40.00 15.0 PRESET ER-JET 28X1.5 M28X1.5 15.00 0.0 1 980 ISCAR
