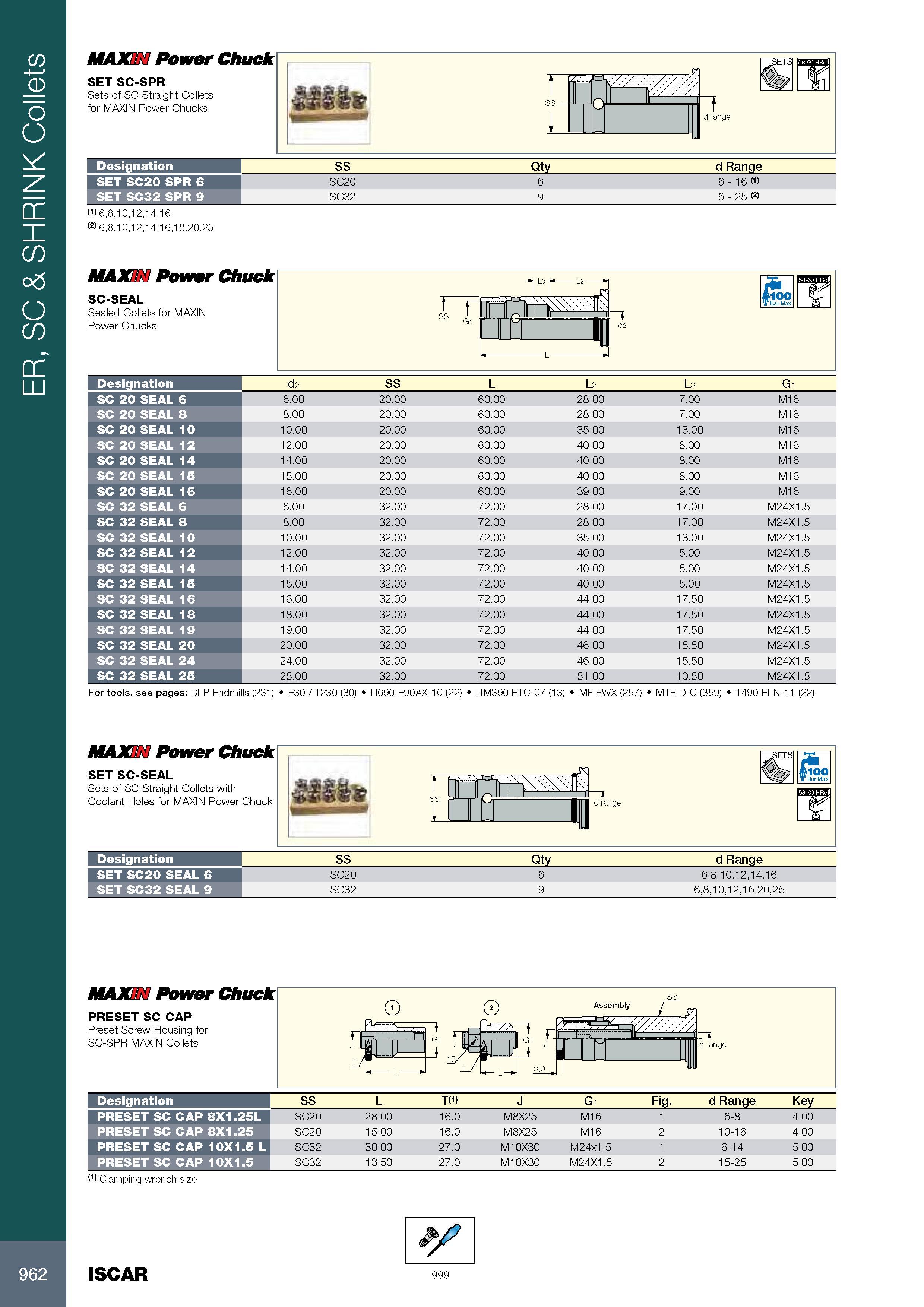

ER, SC & SHRINK Collets MAXIN Power Chuck SET SC-SPR Sets of SC Straight Collets for MAXIN Power Chucks (1) 6,8,10,12,14,16 (2) 6,8,10,12,14,16,18,20,25 t in 1 t d range Обозначение Designation SS Qty d Range SET SC20 SPR 6 SC20 6 6 - 16 (1) SET SC32 SPR 9 SC32 9 6 - 25 (2) SETS MAXIN Power Chuck SC-SEAL Sealed Collets for MAXIN Power Chucks d2 SS L L2 L3 G1 SC 20 SEAL 6 6.00 20.00 60.00 28.00 7.00 M16 SC 20 SEAL 8 8.00 20.00 60.00 28.00 7.00 M16 SC 20 SEAL 10 10.00 20.00 60.00 35.00 13.00 M16 SC 20 SEAL 12 12.00 20.00 60.00 40.00 8.00 M16 SC 20 SEAL 14 14.00 20.00 60.00 40.00 8.00 M16 SC 20 SEAL 15 15.00 20.00 60.00 40.00 8.00 M16 SC 20 SEAL 16 16.00 20.00 60.00 39.00 9.00 M16 SC 32 SEAL 6 6.00 32.00 72.00 28.00 17.00 M24X1.5 SC 32 SEAL 8 8.00 32.00 72.00 28.00 17.00 M24X1.5 SC 32 SEAL 10 10.00 32.00 72.00 35.00 13.00 M24X1.5 SC 32 SEAL 12 12.00 32.00 72.00 40.00 5.00 M24X1.5 SC 32 SEAL 14 14.00 32.00 72.00 40.00 5.00 M24X1.5 SC 32 SEAL 15 15.00 32.00 72.00 40.00 5.00 M24X1.5 SC 32 SEAL 16 16.00 32.00 72.00 44.00 17.50 M24X1.5 SC 32 SEAL 18 18.00 32.00 72.00 44.00 17.50 M24X1.5 SC 32 SEAL 19 19.00 32.00 72.00 44.00 17.50 M24X1.5 SC 32 SEAL 20 20.00 32.00 72.00 46.00 15.50 M24X1.5 SC 32 SEAL 24 24.00 32.00 72.00 46.00 15.50 M24X1.5 SC 32 SEAL 25 25.00 32.00 72.00 51.00 10.50 M24X1.5 For tools, see pages: BLP Endmills (231) E30 / T230 (30) H690 E90AX-10 (22) HM390 ETC-07 (13) MF EWX (257) MTE D-C (359) T490 ELN-11 (22) MAXIN Power Chuck SET SC-SEAL Sets of SC Straight Collets with Coolant Holes for MAXIN Power Chuck d range Bar Max n Обозначение Designation SS Qty d Range SET SC20 SEAL 6 SC20 6 6,8,10,12,14,16 SET SC32 SEAL 9 SC32 9 6,8,10,12,16,20,25 MAXIN Power Chuck PRESET SC CAP Preset Screw Housing for SC-SPR MAXIN Collets Обозначение Designation PRESET SC CAP 8X1.25L PRESET SC CAP 8X1.25 PRESET SC CAP 10X1.5 L PRESET SC CAP 10X1.5 SS L T1 J G1 Fig. d Range Key SC20 28.00 16.0 M8X25 M16 1 6-8 4.00 SC20 15.00 16.0 M8X25 M16 2 10-16 4.00 SC32 30.00 27.0 M10X30 M24x1.5 1 6-14 5.00 SC32 13.50 270 M10X30 M24X1.5 2 15-25 5 (1) Clamping wrench size 962 ISCAR 999
