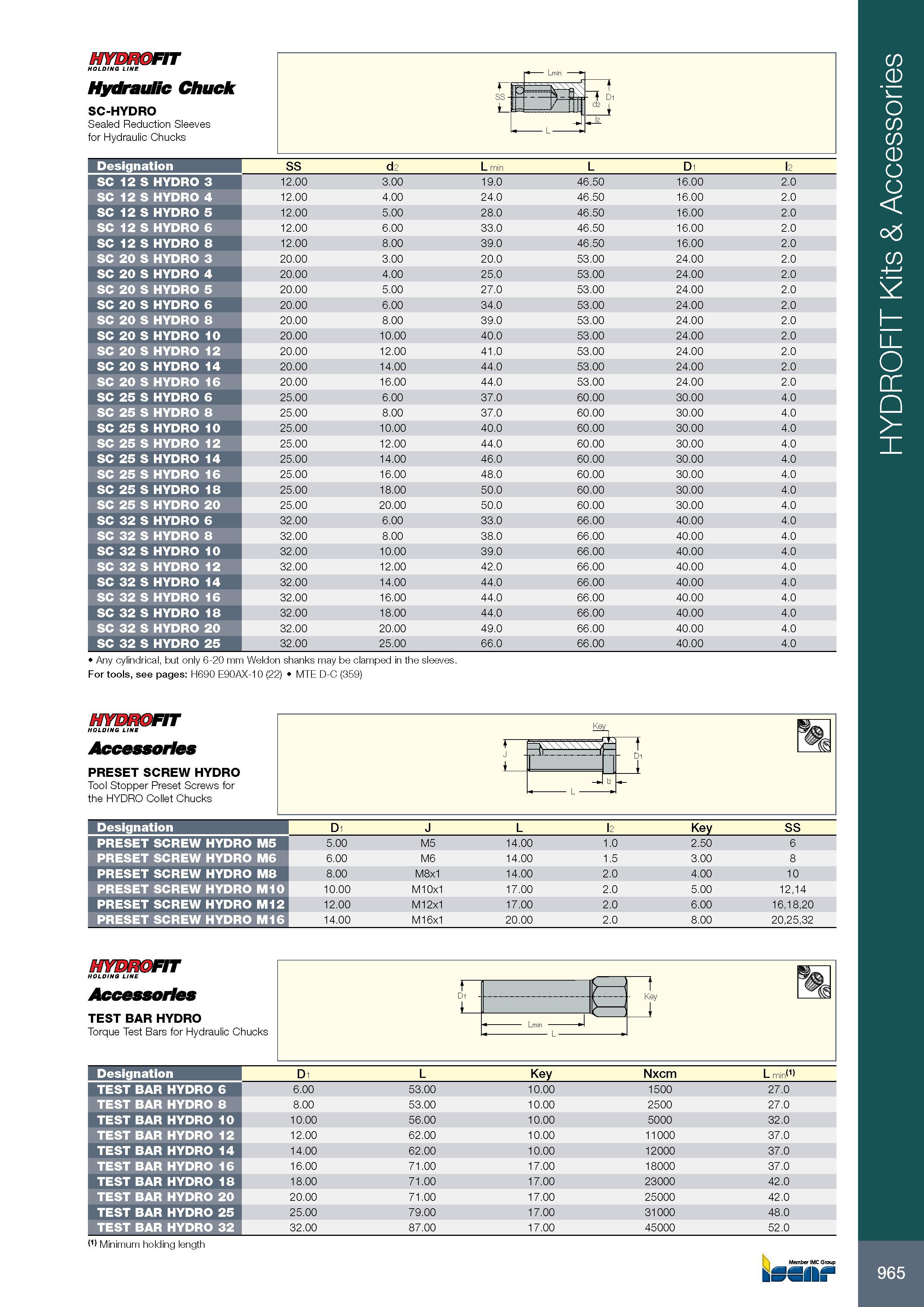

HYDROFIT HOLDING LINE Hydraulic Chuck SC-HYDRO Sealed Reduction Sleeves for Hydraulic Chucks Обозначение Designation SS d2 L min L D1 l2 SC 12 S HYDRO 3 12.00 3.00 19.0 46.50 16.00 2.0 SC 12 S HYDRO 4 12.00 4.00 24.0 46.50 16.00 2.0 SC 12 S HYDRO 5 12.00 5.00 28.0 46.50 16.00 2.0 SC 12 S HYDRO 6 12.00 6.00 33.0 46.50 16.00 2.0 SC 12 S HYDRO 8 12.00 8.00 39.0 46.50 16.00 2.0 SC 20 S HYDRO 3 20.00 3.00 20.0 53.00 24.00 2.0 SC 20 S HYDRO 4 20.00 4.00 25.0 53.00 24.00 2.0 SC 20 S HYDRO 5 20.00 5.00 27.0 53.00 24.00 2.0 SC 20 S HYDRO 6 20.00 6.00 34.0 53.00 24.00 2.0 SC 20 S HYDRO 8 20.00 8.00 39.0 53.00 24.00 2.0 SC 20 S HYDRO 10 20.00 10.00 40.0 53.00 24.00 2.0 SC 20 S HYDRO 12 20.00 12.00 41.0 53.00 24.00 2.0 SC 20 S HYDRO 14 20.00 14.00 44.0 53.00 24.00 2.0 SC 20 S HYDRO 16 20.00 16.00 44.0 53.00 24.00 2.0 SC 25 S HYDRO 6 25.00 6.00 37.0 60.00 30.00 4.0 SC 25 S HYDRO 8 25.00 8.00 37.0 60.00 30.00 4.0 SC 25 S HYDRO 10 25.00 10.00 40.0 60.00 30.00 4.0 SC 25 S HYDRO 12 25.00 12.00 44.0 60.00 30.00 4.0 SC 25 S HYDRO 14 25.00 14.00 46.0 60.00 30.00 4.0 SC 25 S HYDRO 16 25.00 16.00 48.0 60.00 30.00 4.0 SC 25 S HYDRO 18 25.00 18.00 50.0 60.00 30.00 4.0 SC 25 S HYDRO 20 25.00 20.00 50.0 60.00 30.00 4.0 SC 32 S HYDRO 6 32.00 6.00 33.0 66.00 40.00 4.0 SC 32 S HYDRO 8 32.00 8.00 38.0 66.00 40.00 4.0 SC 32 S HYDRO 10 32.00 10.00 39.0 66.00 40.00 4.0 SC 32 S HYDRO 12 32.00 12.00 42.0 66.00 40.00 4.0 SC 32 S HYDRO 14 32.00 14.00 44.0 66.00 40.00 4.0 SC 32 S HYDRO 16 32.00 16.00 44.0 66.00 40.00 4.0 SC 32 S HYDRO 18 32.00 18.00 44.0 66.00 40.00 4.0 SC 32 S HYDRO 20 32.00 20.00 49.0 66.00 40.00 4.0 SC 32 S HYDRO 25 32.00 25.00 66.0 66.00 40.00 4.0 Any cylindrical, but only 6-20 mm Weldon shanks may be clamped in the sleeves. For tools, see pages: H690 E90AX-10 (22) MTE D-C (359) HYDROFIT HOLDING LINE Accessories PRESET SCREW HYDRO Tool Stopper Preset Screws for the HYDRO Collet Chucks R i= Обозначение Designation D1 J L l2 Key SS PRESET SCREW HYDRO M5 5.00 M5 14.00 1.0 2.50 6 PRESET SCREW HYDRO M6 6.00 M6 14.00 1.5 3.00 8 PRESET SCREW HYDRO M8 8.00 M8x1 14.00 2.0 4.00 10 PRESET SCREW HYDRO M10 10.00 M10x1 17.00 2.0 5.00 12,14 PRESET SCREW HYDRO M12 12.00 M12x1 17.00 2.0 6.00 16,18,20 PRESET SCREW HYDRO M16 14.00 M16x1 20.00 2.0 8.00 20,25,32 12 L HYDROFIT HOLDING LINE Accessories TEST BAR HYDRO Torque Test Bars for Hydraulic Chucks r D1 1 Key J L Обозначение Designation D1 L Key Nxcm L mini1) TEST BAR HYDRO 6 6.00 53.00 10.00 1500 27.0 TEST BAR HYDRO 8 8.00 53.00 10.00 2500 27.0 TEST BAR HYDRO 10 10.00 56.00 10.00 5000 32.0 TEST BAR HYDRO 12 12.00 62.00 10.00 11000 37.0 TEST BAR HYDRO 14 14.00 62.00 10.00 12000 37.0 TEST BAR HYDRO 16 16.00 71.00 17.00 18000 37.0 TEST BAR HYDRO 18 18.00 71.00 17.00 23000 42.0 TEST BAR HYDRO 20 20.00 71.00 17.00 25000 42.0 TEST BAR HYDRO 25 25.00 79.00 17.00 31000 48.0 TEST BAR HYDRO 32 32.00 87.00 17.00 45000 52.0 (1) Minimum holding length Member IMC Group kSSlIf HYDROFIT Kits & Accessories
