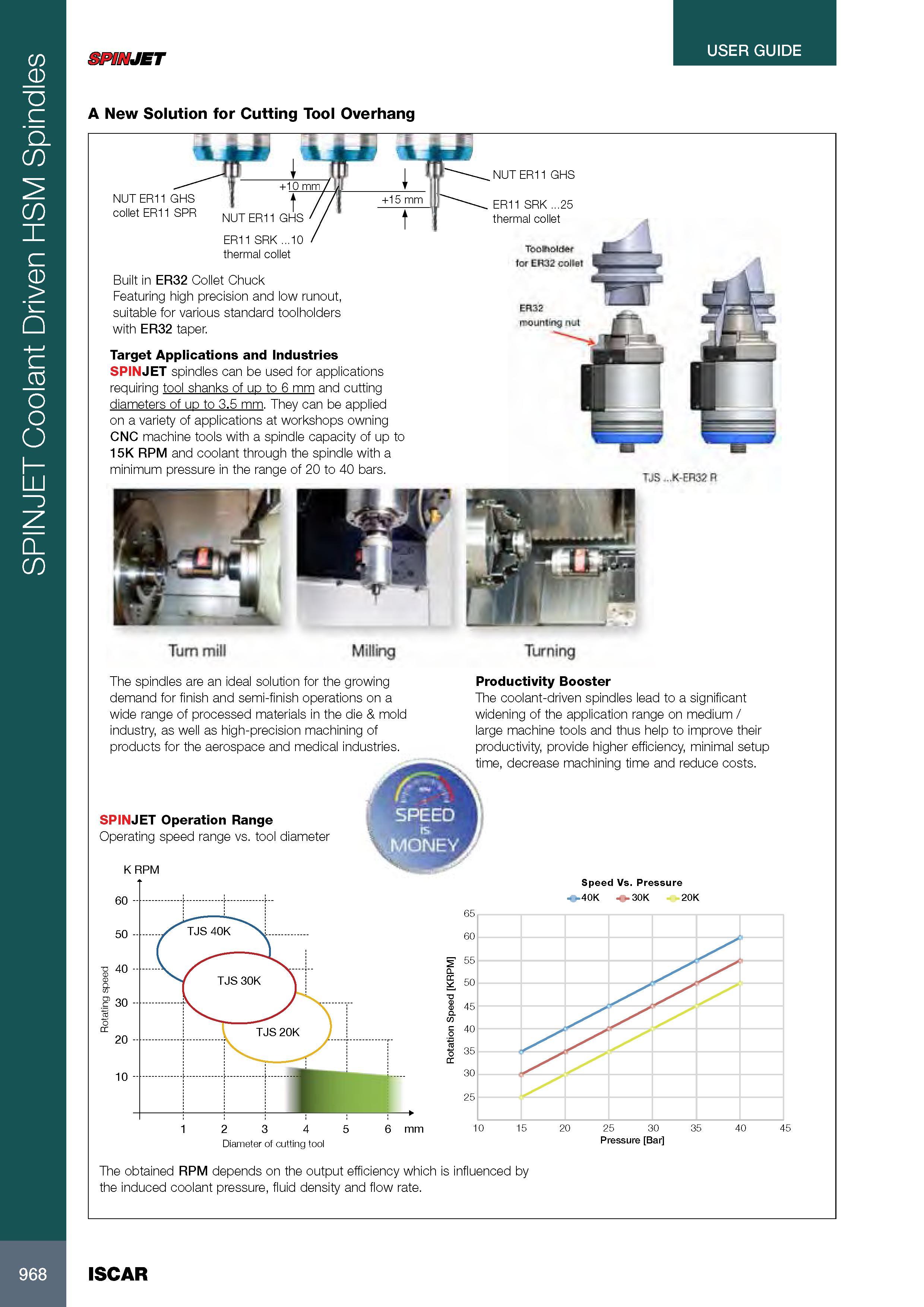

SPINJET Coolant Driven HSM Spindles USER GUIDE SPINJET A New Solution for Cutting Tool Overhang NUT ER11 GHS collet ER11 SPR ER11 SRK ...10 thermal collet Built in ER32 Collet Chuck Featuring high precision and low runout, suitable for various standard toolholders with ER32 taper. Target Applications and Industries SPINJET spindles can be used for applications requiring tool shanks of up to 6 mm and cutting diameters of up to 3.5 mm. They can be applied on a variety of applications at workshops owning CNC machine tools with a spindle capacity of up to 15K RPM and coolant through the spindle with a minimum pressure in the range of 20 to 40 bars. NUT ER11 GHS ER11 SRK ...25 thermal collet TCOftOlefcM tor R32 colWT EH32 nwunlihg rurt TjS ...K-ER32 R The spindles are an ideal solution for the growing demand for finish and semi-finish operations on a wide range of processed materials in the die & mold industry, as well as high-precision machining of products for the aerospace and medical industries. SPINJET Operation Range Operating speed range vs. tool diameter K RPM 60 50 S 40 1 30 20 10 Productivity Booster The coolant-driven spindles lead to a significant widening of the application range on medium / large machine tools and thus help to improve their productivity, provide higher efficiency, minimal setup r t k e 5PEEC > is TONE A Speed Vs. Pressure 40K 30K 20K 65 60 55 50 45 40 35 30 1 2 3 4 5 Diameter of cutting tool 10 15 20 25 30 35 Pressure Bar 40 45 The obtained RPM depends on the output efficiency which is influenced by the induced coolant pressure, fluid density and flow rate. 25 968 ISCAR
