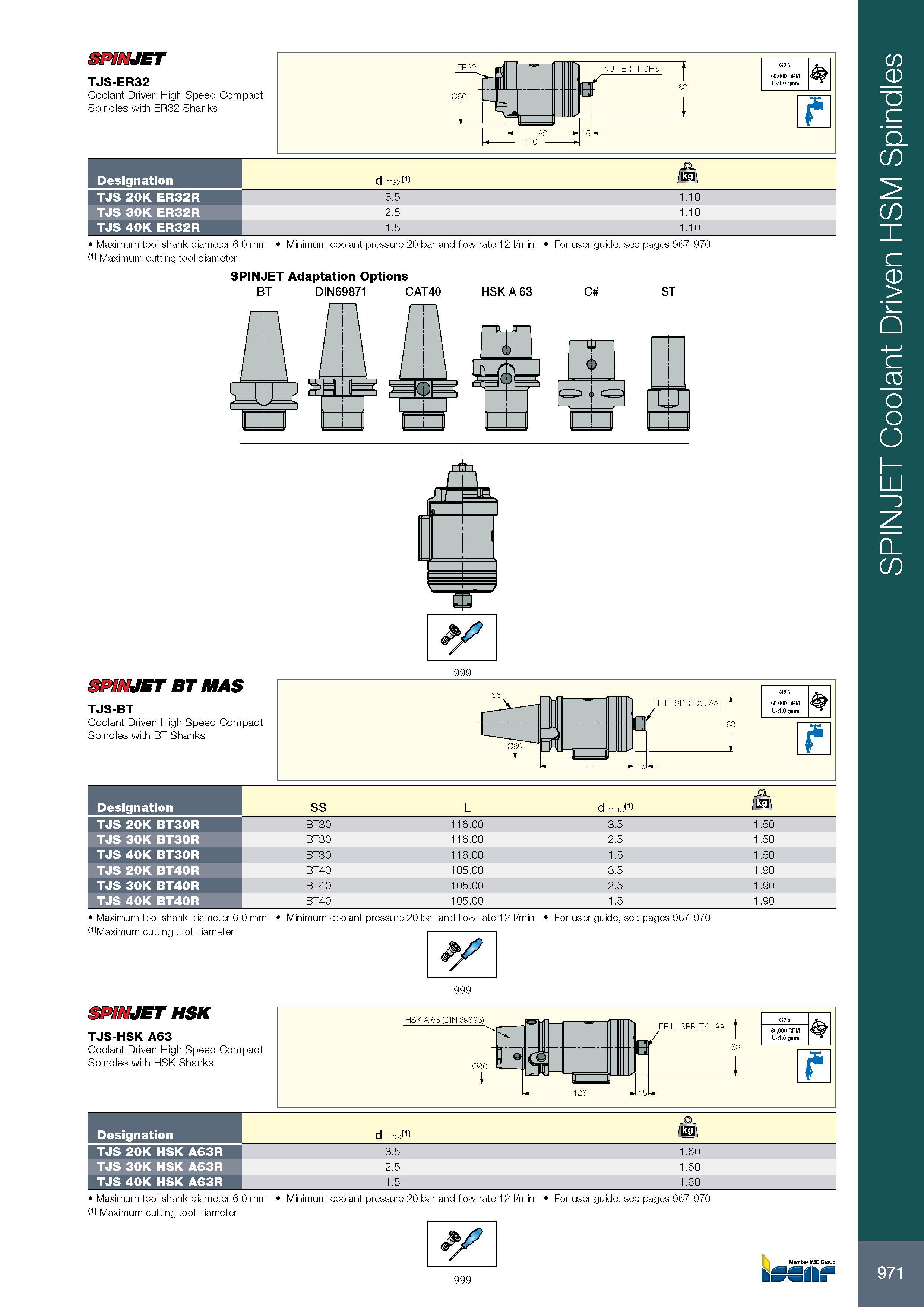

971 SPINJET TJS-ER32 Coolant Driven High Speed Compact Spindles with ER32 Shanks Maximum tool shank diameter 6.0 mm Minimum coolant pressure 20 bar and flow rate 12 l/min For user guide, see pages 967-970 (1) Maximum cutting tool diameter SPINJET Adaptation Options BT DIN69871 CAT40 HSK A 63 C ST Обозначение Designation d max(1) jOl /kg\ TJS 20K ER32R 3.5 1.10 TJS 30K ER32R 2.5 1.10 TJS 40K ER32R 1.5 1.10 G2.5 >0,000 RPM U<1.0 gmm SPINJET BT MAS TJS-BT Coolant Driven High Speed Compact Spindles with BT Shanks 999 080 Eh ER11 SPR EX...AA Maximum tool shank diameter 6.0 mm Minimum coolant pressure 20 bar and flow rate 12 l/min For user guide, see pages 967-970 (1)Maximum cutting tool diameter Обозначение Designation SS L d max(1) ra TJS 20K BT30R BT30 116.00 3.5 1.50 TJS 30K BT30R BT30 116.00 2.5 1.50 TJS 40K BT30R BT30 116.00 1.5 1.50 TJS 20K BT40R BT40 105.00 3.5 1.90 TJS 30K BT40R BT40 105.00 2.5 1.90 TJS 40K BT40R BT40 105.00 1.5 1.90 G2.5 SS >0,000 RPM U<1.0 gmm 63 999 SPINJET HSK TJS-HSK A63 Coolant Driven High Speed Compact Spindles with HSK Shanks Обозначение Designation d max(1) o> /kal TJS 20K HSK A63R 3.5 1.60 TJS 30K HSK A63R 2.5 1.60 TJS 40K HSK A63R 1.5 1.60 Maximum tool shank diameter 6.0 mm Minimum coolant pressure 20 bar and flow rate 12 l/min For user guide, see pages 967-970 (1) Maximum cutting tool diameter SPINJET Coolant Driven HSM Spindles
