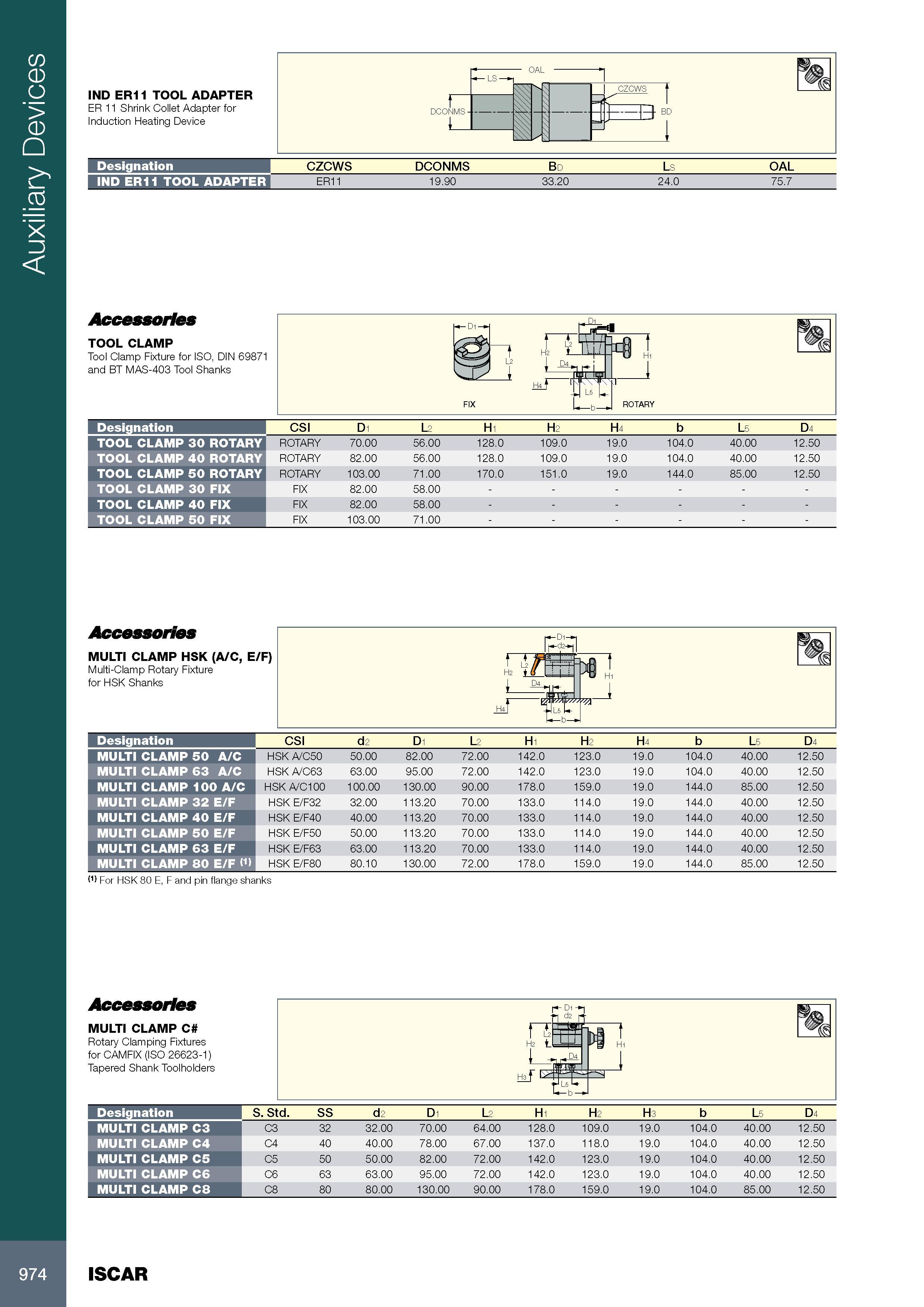

Auxiliary Devices IND ER11 TOOL ADAPTER ER 11 Shrink Collet Adapter for Induction Heating Device EEB Обозначение Designation IND ER11 TOOL ADAPTER CZCWS DCONMS Bd Ls OAL ER11 19.90 33.20 24.0 75.7 CZCWS BD Accessories TOOL CLAMP Tool Clamp Fixture for ISO, DIN 69871 and BT MAS-403 Tool Shanks FIX Обозначение Designation CSI D1 L2 H1 H2 H4 b L5 D4 TOOL CLAMP 30 ROTARY ROTARY 70.00 56.00 128.0 109.0 19.0 104.0 40.00 12.50 TOOL CLAMP 40 ROTARY ROTARY 82.00 56.00 128.0 109.0 19.0 104.0 40.00 12.50 TOOL CLAMP 50 ROTARY ROTARY 103.00 71.00 170.0 151.0 19.0 144.0 85.00 12.50 TOOL CLAMP 30 FIX FIX 82.00 58.00 TOOL CLAMP 40 FIX FIX 82.00 58.00 TOOL CLAMP 50 FIX FIX 103.00 71.00 Accessories MULTI CLAMP HSK (A/C, E/F) Multi-Clamp Rotary Fixture for HSK Shanks Обозначение Designation CSI d2 D1 L2 H1 H2 H4 b L5 D4 MULTI CLAMP 50 A/C HSK A/C50 50.00 82.00 72.00 142.0 123.0 19.0 104.0 40.00 12.50 MULTI CLAMP 63 A/C HSK A/C63 63.00 95.00 72.00 142.0 123.0 19.0 104.0 40.00 12.50 MULTI CLAMP 100 A/C HSK A/C100 100.00 130.00 90.00 178.0 159.0 19.0 144.0 85.00 12.50 MULTI CLAMP 32 E/F HSK E/F32 32.00 113.20 70.00 133.0 114.0 19.0 144.0 40.00 12.50 MULTI CLAMP 40 E/F HSK E/F40 40.00 113.20 70.00 133.0 114.0 19.0 144.0 40.00 12.50 MULTI CLAMP 50 E/F HSK E/F50 50.00 113.20 70.00 133.0 114.0 19.0 144.0 40.00 12.50 MULTI CLAMP 63 E/F HSK E/F63 63.00 113.20 70.00 133.0 114.0 19.0 144.0 40.00 12.50 MULTI CLAMP 80 E/F (1) HSK E/F80 80.10 130.00 72.00 178.0 159.0 19.0 144.0 85.00 12.50 (1) For HSK 80 E, F and pin flange shanks Accessories MULTI CLAMP C Rotary Clamping Fixtures for CAMFIX (ISO 26623-1) Tapered Shank Toolholders S. Std. SS d2 D1 L2 H1 H2 H3 b L5 D4 MULTI CLAMP C3 C3 32 32.00 70.00 64.00 128.0 109.0 19.0 104.0 40.00 12.50 MULTI CLAMP C4 C4 40 40.00 78.00 67.00 137.0 118.0 19.0 104.0 40.00 12.50 MULTI CLAMP C5 C5 50 50.00 82.00 72.00 142.0 123.0 19.0 104.0 40.00 12.50 MULTI CLAMP C6 C6 63 63.00 95.00 72.00 142.0 123.0 19.0 104.0 40.00 12.50 MULTI CLAMP C8 C8 80 80.00 130.00 90.00 178.0 159.0 19.0 104.0 85.00 12.50 974 ISCAR
