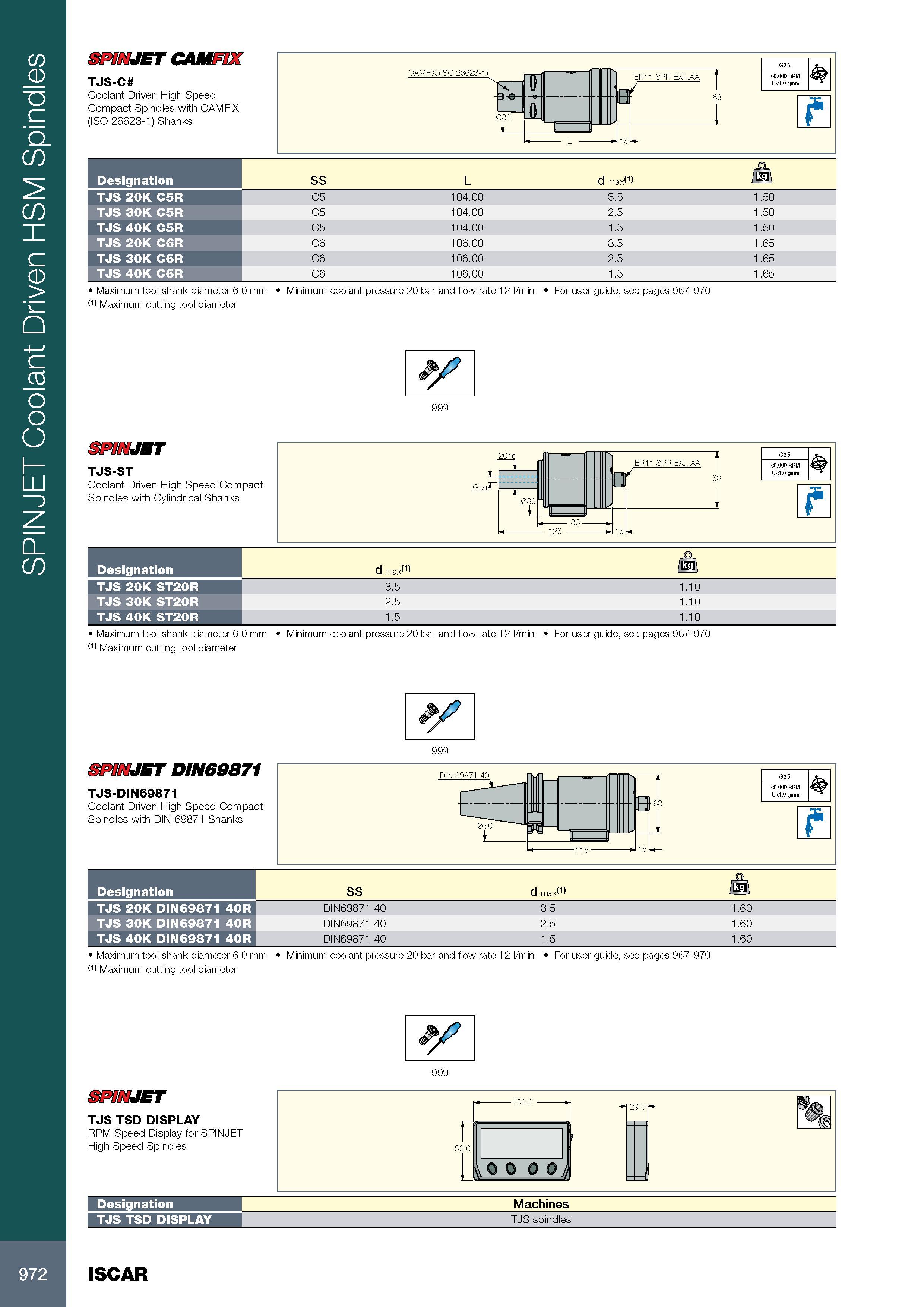

SPINJET Coolant Driven HSM Spindles SPINJET CAMFIX TJS-C Coolant Driven High Speed Compact Spindles with CAMFIX (ISO 26623-1) Shanks CAMFIX (ISO 26623-1) Обозначение Designation SS L d max(1) TJS 20K C5R C5 104.00 3.5 1.50 TJS 30K C5R C5 104.00 2.5 1.50 TJS 40K C5R C5 104.00 1.5 1.50 TJS 20K C6R C6 106.00 3.5 1.65 TJS 30K C6R C6 106.00 2.5 1.65 TJS 40K C6R C6 106.00 1.5 1.65 Maximum tool shank diameter 6.0 mm Minimum coolant pressure 20 bar and flow rate 12 l/min For user guide, see pages 967-970 (1) Maximum cutting tool diameter 999 SPINJET TJS-ST Coolant Driven High Speed Compact Spindles with Cylindrical Shanks 080 L ER11 SPR EX...AA Обозначение Designation d max(1) Zm TJS 20K ST20R 3.5 1.10 TJS 30K ST20R 2.5 1.10 TJS 40K ST20R 1.5 1.10 Maximum tool shank diameter 6.0 mm Minimum coolant pressure 20 bar and flow rate 12 l/min For user guide, see pages 967-970 (1) Maximum cutting tool diameter 999 SPINJET DIN69871 TJS-DIN69871 Coolant Driven High Speed Compact Spindles with DIN 69871 Shanks DIN 69871 40 Обозначение Designation SS d max(1) /kg\ TJS 20K DIN69871 40R DIN69871 40 3.5 1.60 TJS 30K DIN69871 40R DIN69871 40 2.5 1.60 TJS 40K DIN69871 40R DIN69871 40 1.5 1.60 Maximum tool shank diameter 6.0 mm Minimum coolant pressure 20 bar and flow rate 12 l/min For user guide, see pages 967-970 (1) Maximum cutting tool diameter 999 mjwjET TJS TSD DISPLAY RPM Speed Display for SPINJET High Speed Spindles p 130.0 - 29.0 5 r 80.0 L loo 0 0 J :=l Обозначение Designation Machines TJS TSD DISPLAY TJS spindles G2.5 >0,000 RPM U<1.0 gmm G2.5 >0,000 RPM U<1.0 gmm 63 83 G2.5 >0,000 RPM U<1.0 gmm 972 ISCAR
