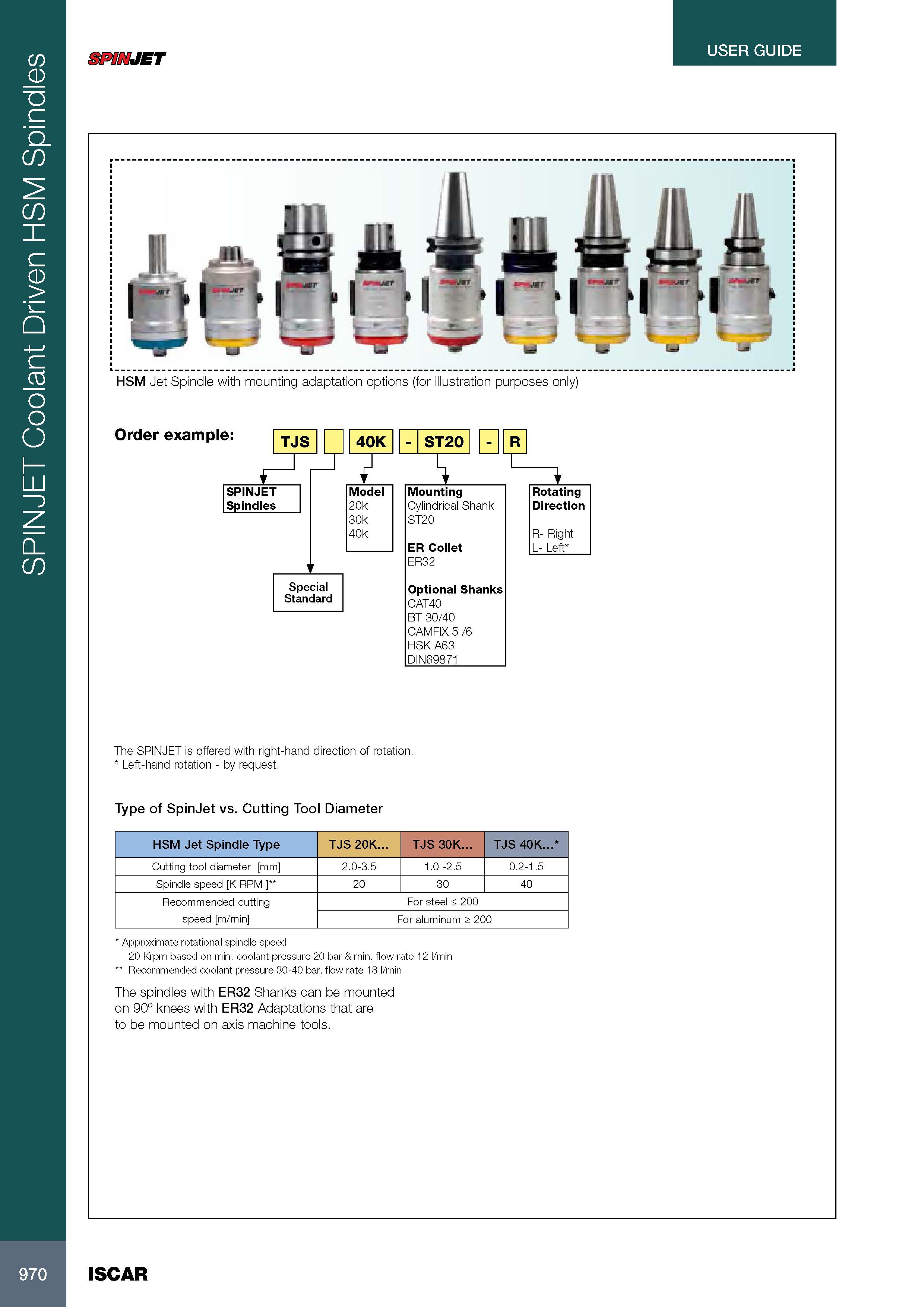

SPINJET Coolant Driven HSM Spindles USER GUIDE SPINJET HSM Jet Spindle with mounting adaptation options (for illustration purposes only) The SPINJET is offered with right-hand direction of rotation. Left-hand rotation - by request. Type of SpinJet vs. Cutting Tool Diameter HSM Jet Spindle Type TJS 20K... TJS 30K... TJS 40K... Cutting tool diameter mm 2.0-3.5 1.0 -2.5 0.2-1.5 Spindle speed K RPM 20 30 40 Recommended cutting speed m/min For steel < 200 For aluminum > 200 Approximate rotational spindle speed 20 Krpm based on min. coolant pressure 20 bar & min. flow rate 12 l/min Recommended coolant pressure 30-40 bar, flow rate 18 l/min The spindles with ER32 Shanks can be mounted on 90° knees with ER32 Adaptations that are to be mounted on axis machine tools. 970 ISCAR
