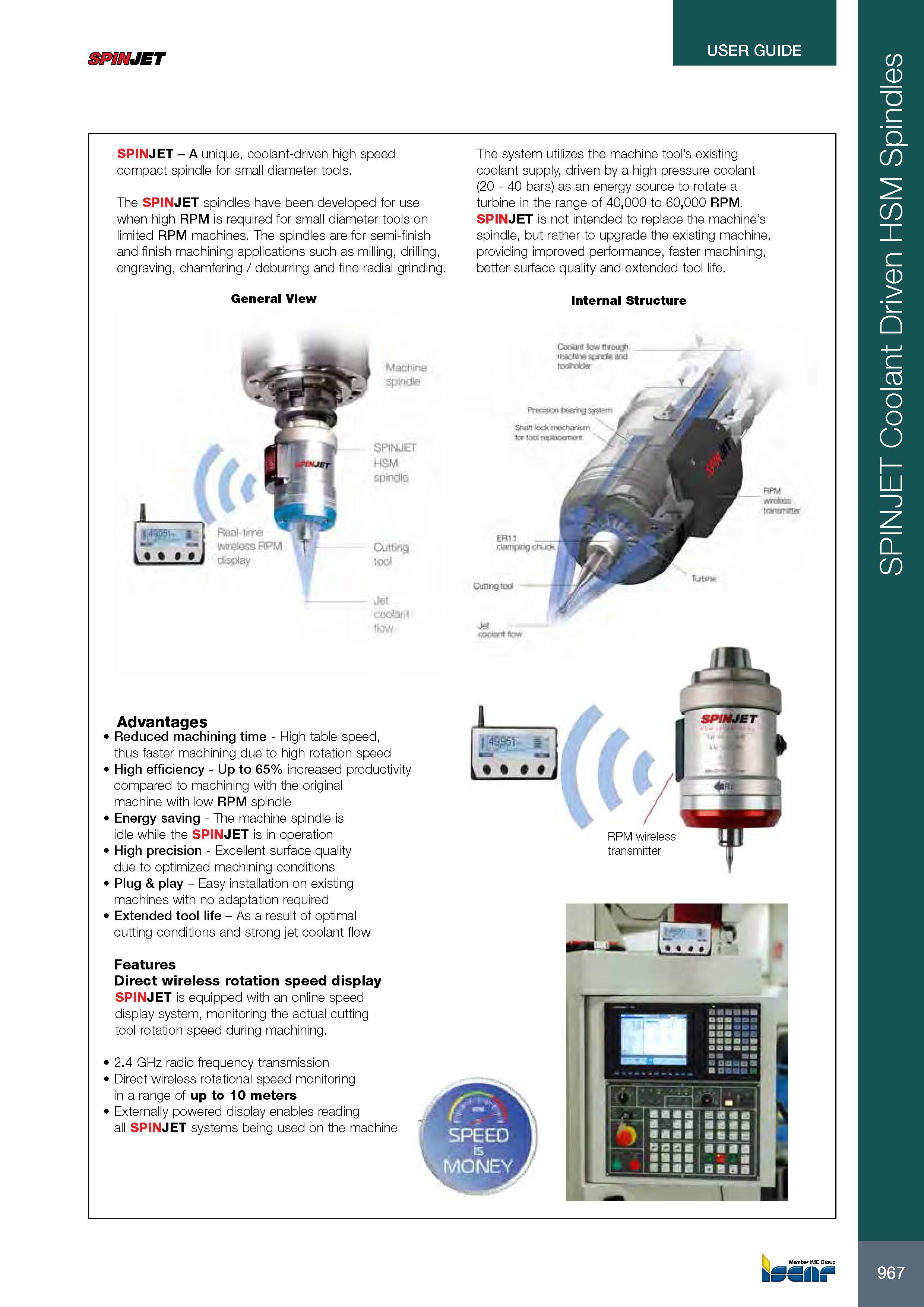

SPINJET USER GUIDE SPINJET - A unique, coolant-driven high speed compact spindle for small diameter tools. The SPINJET spindles have been developed for use when high RPM is required for small diameter tools on limited RPM machines. The spindles are for semi-finish and finish machining applications such as milling, drilling, engraving, chamfering / deburring and fine radial grinding. The system utilizes the machine tool's existing coolant supply, driven by a high pressure coolant (20 - 40 bars) as an energy source to rotate a turbine in the range of 40,000 to 60,000 RPM. SPINJET is not intended to replace the machine's spindle, but rather to upgrade the existing machine, providing improved performance, faster machining, better surface quality and extended tool life. General View Internal Structure CnAvfl tort Hputj.f -4 a sfc Ib I 1 1 1 I A RPM wireless transmitter Member IMC Group kSSII t 967 SPINJET Coolant Driven HSM Spindles
