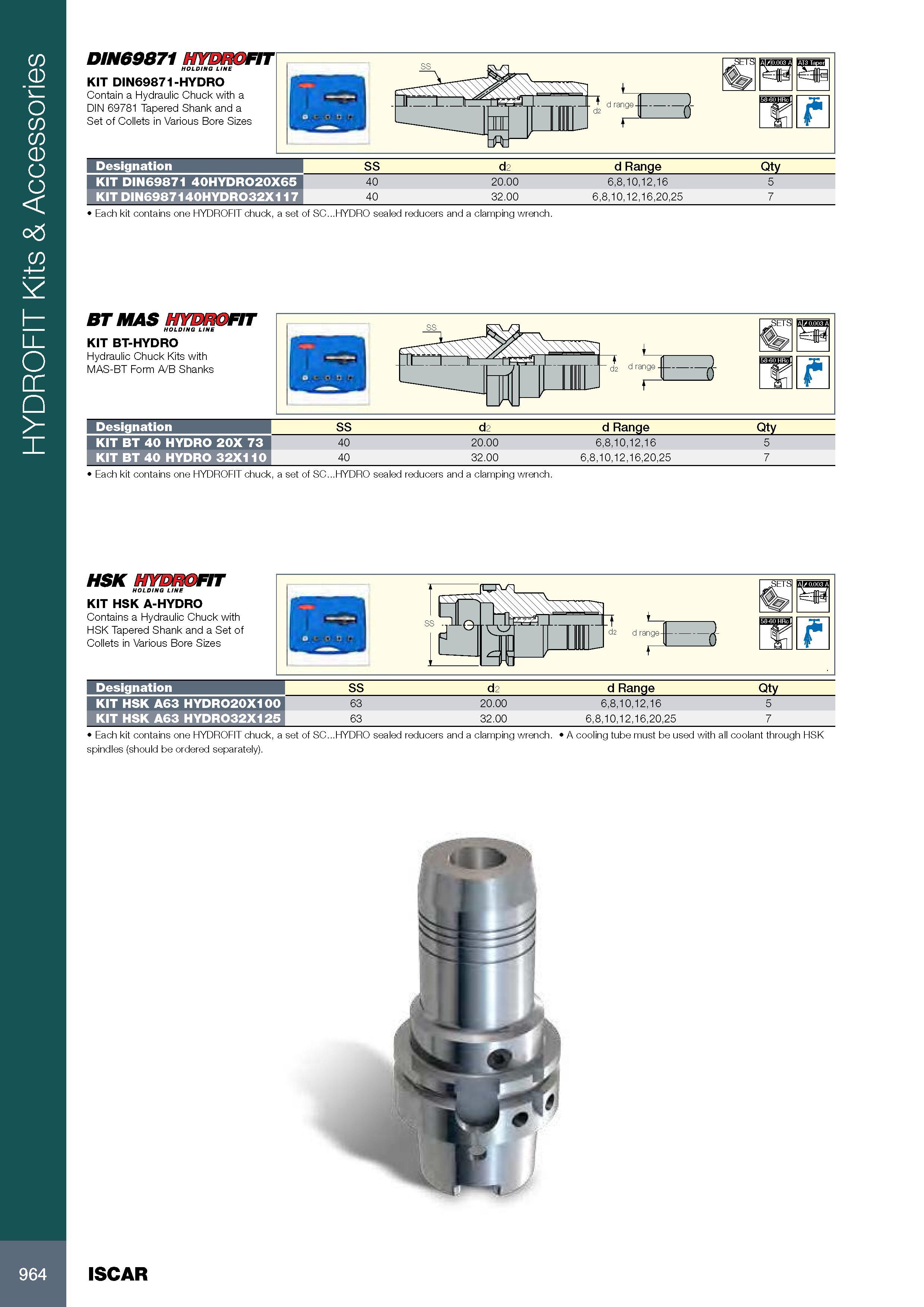

HYDROFIT Kits & Accessories DIN69871 HYDROFIT HOLDING LINE KIT DIN69871-HYDRO Contain a Hydraulic Chuck with a DIN 69781 Tapered Shank and a Set of Collets in Various Bore Sizes S m h - d range -d2 y I c n Обозначение Designation SS d2 d Range Qty KIT DIN69871 40HYDRO20X65 40 20.00 6,8,10,12,16 5 KIT DIN6987140HYDRO32X117 40 32.00 6,8,10,12,16,20,25 7 Each kit contains one HYDROFIT chuck, a set of SC...HYDRO sealed reducers and a clamping wrench. BT MAS HYDROFIT HOLDING LINE KIT BT-HYDRO Hydraulic Chuck Kits with MAS-BT Form A/B Shanks Обозначение Designation SS d2 d Range Qty KIT BT 40 HYDRO 20X 73 40 20.00 6,8,10,12,16 5 KIT BT 40 HYDRO 32X110 40 32.00 6,8,10,12,16,20,25 7 Each kit contains one HYDROFIT chuck, a set of SC...HYDRO sealed reducers and a clamping wrench. HSK HYDROFIT HOLDING LINE KIT HSK A-HYDRO Contains a Hydraulic Chuck with HSK Tapered Shank and a Set of Collets in Various Bore Sizes L d2 d range r SETS Обозначение Designation SS d2 d Range Qty KIT HSK A63 HYDRO20X100 63 20.00 6,8,10,12,16 5 KIT HSK A63 HYDRO32X125 63 32.00 6,8,10,12,16,20,25 7 Each kit contains one HYDROFIT chuck, a set of SC...HYDRO sealed reducers and a clamping wrench. A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). 964 ISCAR
