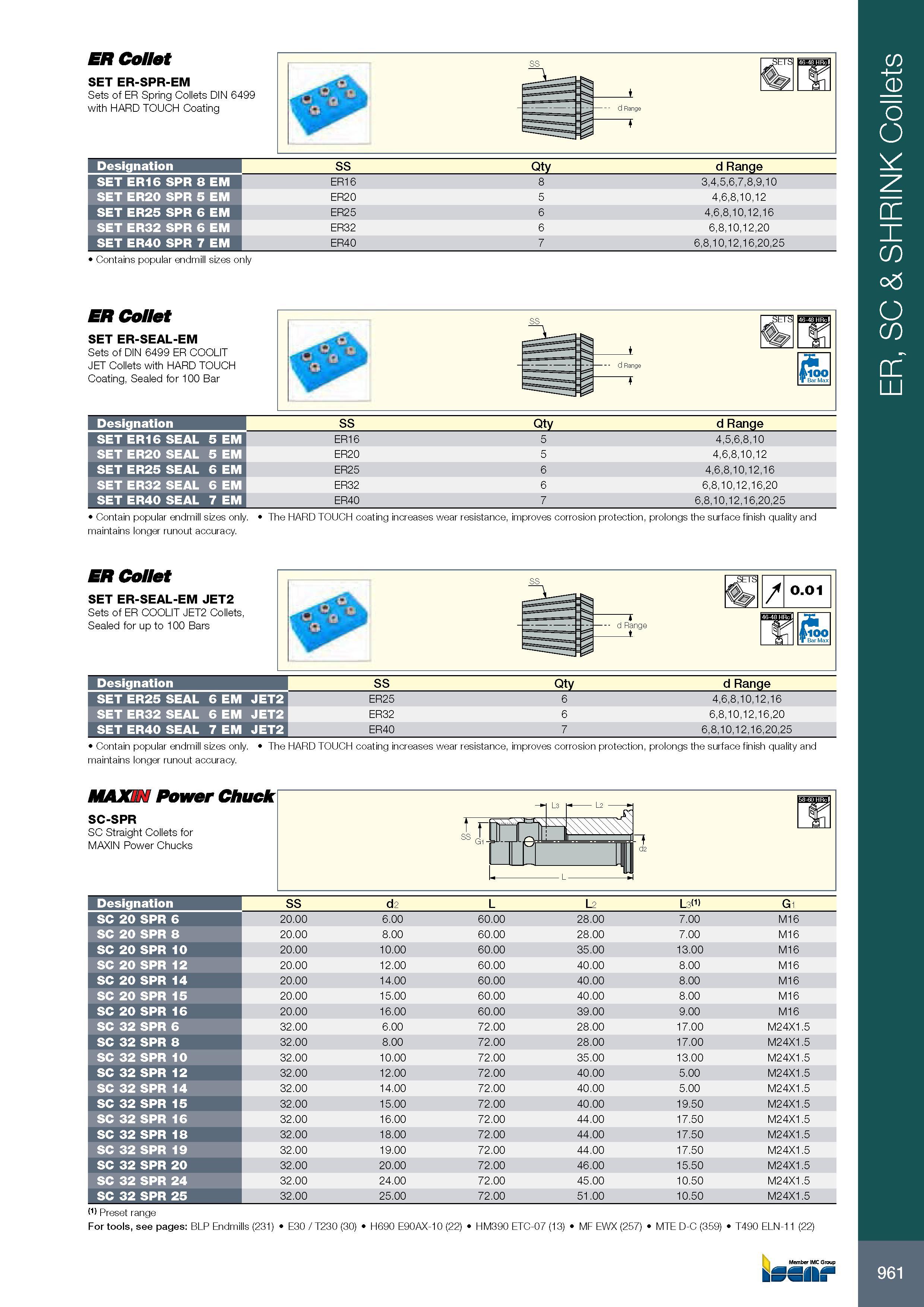

961 ER Collet SET ER-SPR-EM Sets of ER Spring Collets DIN 6499 with HARD TOUCH Coating its Обозначение Designation SS Qty d Range SET ER16 SPR 8 EM ER16 8 3,4,5,6,7,8,9,10 SET ER20 SPR 5 EM ER20 5 4,6,8,10,12 SET ER25 SPR 6 EM ER25 6 4,6,8,10,12,16 SET ER32 SPR 6 EM ER32 6 6,8,10,12,20 SET ER40 SPR 7 EM ER40 7 6,8,10,12,16,20,25 Contains popular endmill sizes only SS ER Collet SET ER-SEAL-EM Sets of DIN 6499 ER COOLIT JET Collets with HARD TOUCH Coating, Sealed for 100 Bar SS Qty d Range ER16 5 4,5,6,8,10 ER20 5 4,6,8,10,12 ER25 6 4,6,8,10,12,16 ER32 6 6,8,10,12,16,20 ER40 7 6,8,10,12,16,20,25 Contain popular endmill sizes only. The HARD TOUCH coating increases wear resistance, improves corrosion protection, prolongs the surface finish quality and maintains longer runout accuracy. Обозначение Designation SET ER16 SEAL 5 EM SET ER20 SEAL 5 EM SET ER25 SEAL 6 EM SET ER32 SEAL 6 EM SET ER40 SEAL 7 EM ER Collet SET ER-SEAL-EM JET2 Sets of ER COOLIT JET2 Collets, Sealed for up to 100 Bars SS Qty d Range ER25 6 4,6,8,10,12,16 ER32 6 6,8,10,12,16,20 ER40 7 6,8,10,12,16,20,25 Contain popular endmill sizes only. The HARD TOUCH coating increases wear resistance, improves corrosion protection, prolongs the surface finish quality and maintains longer runout accuracy. Обозначение Designation SET ER25 SEAL 6 EM JET2 SET ER32 SEAL 6 EM JET2 SET ER40 SEAL 7 EM JET2 MAXIM Power Chuck SC-SPR SC Straight Collets for MAXIN Power Chucks Обозначение Designation SS d2 L L2 L3<1) G1 SC 20 SPR 6 20.00 6.00 60.00 28.00 7.00 M16 SC 20 SPR 8 20.00 8.00 60.00 28.00 7.00 M16 SC 20 SPR 10 20.00 10.00 60.00 35.00 13.00 M16 SC 20 SPR 12 20.00 12.00 60.00 40.00 8.00 M16 SC 20 SPR 14 20.00 14.00 60.00 40.00 8.00 M16 SC 20 SPR 15 20.00 15.00 60.00 40.00 8.00 M16 SC 20 SPR 16 20.00 16.00 60.00 39.00 9.00 M16 SC 32 SPR 6 32.00 6.00 72.00 28.00 17.00 M24X1.5 SC 32 SPR 8 32.00 8.00 72.00 28.00 17.00 M24X1.5 SC 32 SPR 10 32.00 10.00 72.00 35.00 13.00 M24X1.5 SC 32 SPR 12 32.00 12.00 72.00 40.00 5.00 M24X1.5 SC 32 SPR 14 32.00 14.00 72.00 40.00 5.00 M24X1.5 SC 32 SPR 15 32.00 15.00 72.00 40.00 19.50 M24X1.5 SC 32 SPR 16 32.00 16.00 72.00 44.00 17.50 M24X1.5 SC 32 SPR 18 32.00 18.00 72.00 44.00 17.50 M24X1.5 SC 32 SPR 19 32.00 19.00 72.00 44.00 17.50 M24X1.5 SC 32 SPR 20 32.00 20.00 72.00 46.00 15.50 M24X1.5 SC 32 SPR 24 32.00 24.00 72.00 45.00 10.50 M24X1.5 SC 32 SPR 25 32.00 25.00 72.00 51.00 10.50 M24X1.5 (1) Preset range For tools, see pages: BLP Endmills (231) E30 / T230 (30) H690 E90AX-10 (22) HM390 ETC-07 (13) MF EWX (257) MTE D-C (359) T490 ELN-11 (22) Member IMC Group kSSIIf ER, SC & SHRINK Collets
