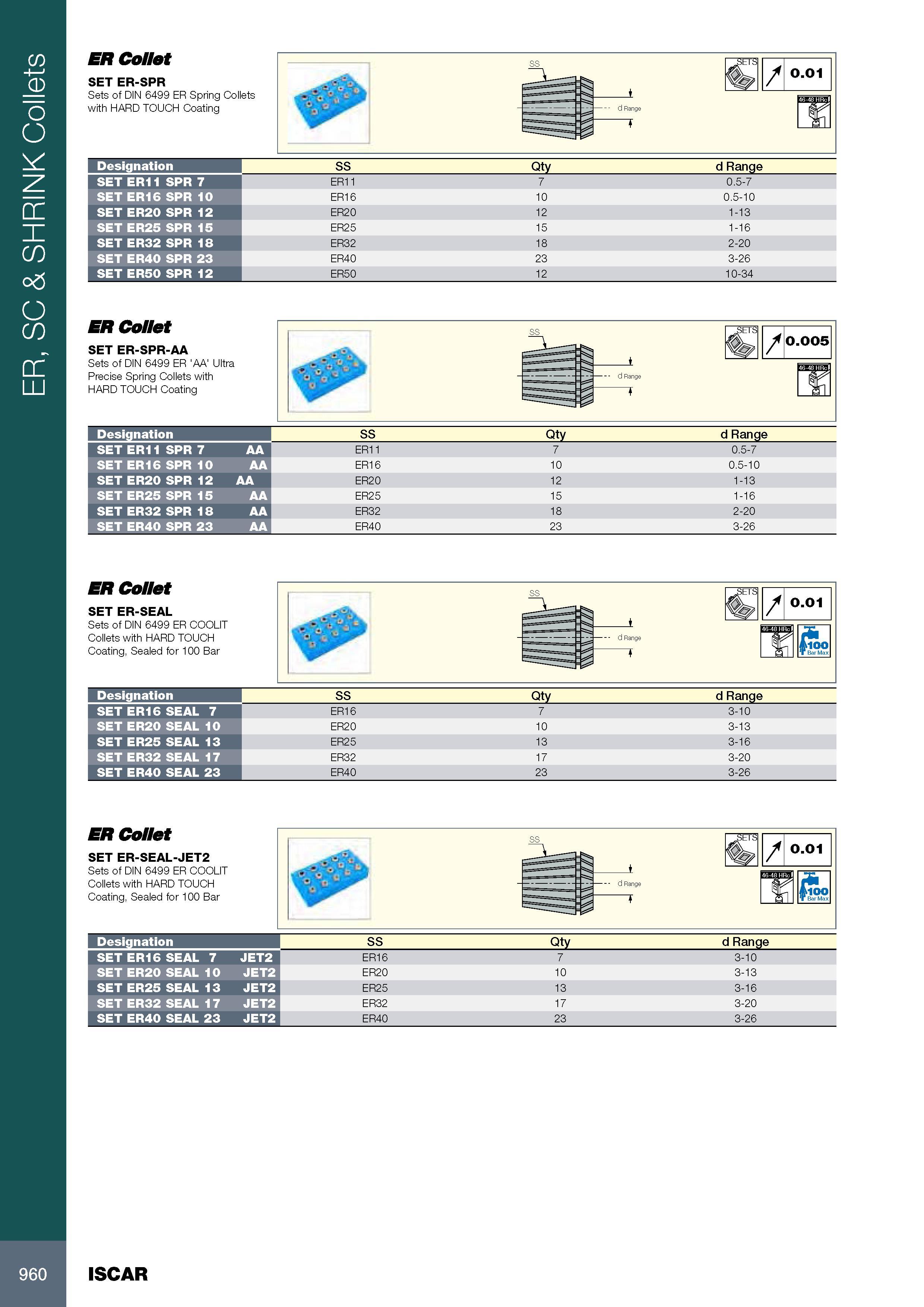

ER, SC & SHRINK Collets ER Collet SET ER-SPR Sets of DIN 6499 ER Spring Collets with HARD TOUCH Coating Обозначение Designation SS Qty d Range SET ER11 SPR 7 ER11 7 0.5-7 SET ER16 SPR 10 ER16 10 0.5-10 SET ER20 SPR 12 ER20 12 1-13 SET ER25 SPR 15 ER25 15 1-16 SET ER32 SPR 18 ER32 18 2-20 SET ER40 SPR 23 ER40 23 3-26 SET ER50 SPR 12 ER50 12 10-34 ER Collet SET ER-SPR-AA Sets of DIN 6499 ER 'AA' Ultra Precise Spring Collets with HARD TOUCH Coating Обозначение Designation SS Qty d Range SET ER11 SPR 7 AA ER11 7 0.5-7 SET ER16 SPR 10 AA ER16 10 0.5-10 SET ER20 SPR 12 AA ER20 12 1-13 SET ER25 SPR 15 AA ER25 15 1-16 SET ER32 SPR 18 AA ER32 18 2-20 SET ER40 SPR 23 AA ER40 23 3-26 ER Collet SET ER-SEAL Sets of DIN 6499 ER COOLIT Collets with HARD TOUCH Coating, Sealed for 100 Bar d Range SETS / 0.01 i mi ioo T Bar Max SS Обозначение Designation SS Qty d Range SET ER16 SEAL 7 ER16 7 3-10 SET ER20 SEAL 10 ER20 10 3-13 SET ER25 SEAL 13 ER25 13 3-16 SET ER32 SEAL 17 ER32 17 3-20 SET ER40 SEAL 23 ER40 23 3-26 ER Collet SET ER-SEAL-JET2 Sets of DIN 6499 ER COOLIT Collets with HARD TOUCH Coating, Sealed for 100 Bar d Range / 0.01 iffF J oo Bar Max SS Обозначение Designation SS Qty d Range SET ER16 SEAL 7 JET2 ER16 7 3-10 SET ER20 SEAL 10 JET2 ER20 10 3-13 SET ER25 SEAL 13 JET2 ER25 13 3-16 SET ER32 SEAL 17 JET2 ER32 17 3-20 SET ER40 SEAL 23 JET2 ER40 23 3-26 960 ISCAR
