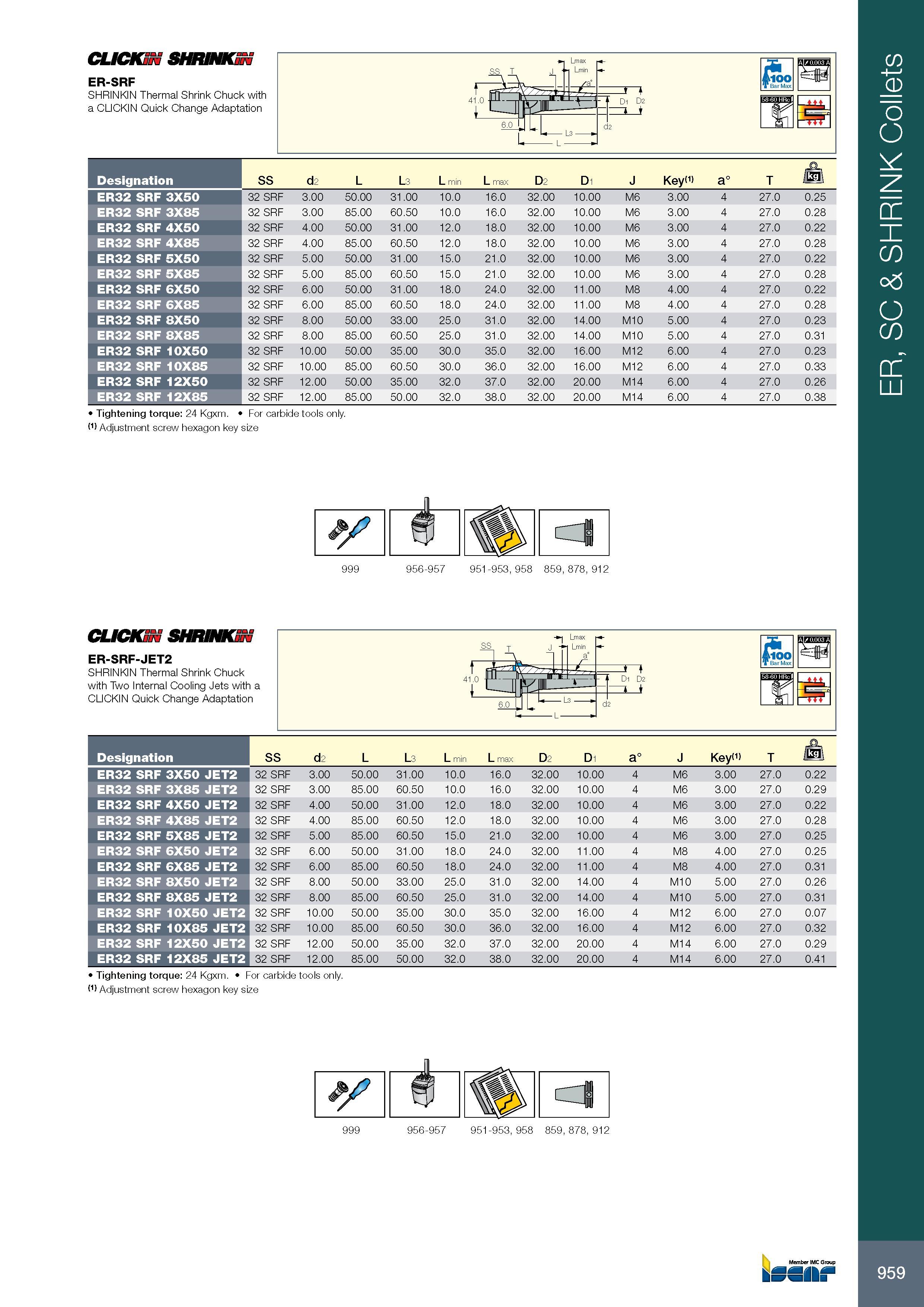

959 CLICKiN SHRINKIN ER-SRF SHRINKIN Thermal Shrink Chuck with a CLICKIN Quick Change Adaptation Обозначение Designation SS d2 L L3 L min L max D2 D1 J Key 1) a° T Ml ER32 SRF 3X50 32 SRF 3.00 50.00 31.00 10.0 16.0 32.00 10.00 M6 3.00 4 27.0 0.25 ER32 SRF 3X85 32 SRF 3.00 85.00 60.50 10.0 16.0 32.00 10.00 M6 3.00 4 27.0 0.28 ER32 SRF 4X50 32 SRF 4.00 50.00 31.00 12.0 18.0 32.00 10.00 M6 3.00 4 27.0 0.22 ER32 SRF 4X85 32 SRF 4.00 85.00 60.50 12.0 18.0 32.00 10.00 M6 3.00 4 27.0 0.28 ER32 SRF 5X50 32 SRF 5.00 50.00 31.00 15.0 21.0 32.00 10.00 M6 3.00 4 27.0 0.22 ER32 SRF 5X85 32 SRF 5.00 85.00 60.50 15.0 21.0 32.00 10.00 M6 3.00 4 27.0 0.28 ER32 SRF 6X50 32 SRF 6.00 50.00 31.00 18.0 24.0 32.00 11.00 M8 4.00 4 27.0 0.22 ER32 SRF 6X85 32 SRF 6.00 85.00 60.50 18.0 24.0 32.00 11.00 M8 4.00 4 27.0 0.28 ER32 SRF 8X50 32 SRF 8.00 50.00 33.00 25.0 31.0 32.00 14.00 M10 5.00 4 27.0 0.23 ER32 SRF 8X85 32 SRF 8.00 85.00 60.50 25.0 31.0 32.00 14.00 M10 5.00 4 27.0 0.31 ER32 SRF 10X50 32 SRF 10.00 50.00 35.00 30.0 35.0 32.00 16.00 M12 6.00 4 27.0 0.23 ER32 SRF 10X85 32 SRF 10.00 85.00 60.50 30.0 36.0 32.00 16.00 M12 6.00 4 27.0 0.33 ER32 SRF 12X50 32 SRF 12.00 50.00 35.00 32.0 37.0 32.00 20.00 M14 6.00 4 27.0 0.26 ER32 SRF 12X85 32 SRF 12.00 85.00 50.00 32.0 38.0 32.00 20.00 M14 6.00 4 27.0 0.38 Tightening torque: 24 Kgxm. For carbide tools only. (1) Adjustment screw hexagon key size 999 956-957 951-953, 958 859, 878, 912 CLICK SHRINKSS3 ER-SRF-JET2 SHRINKIN Thermal Shrink Chuck with Two Internal Cooling Jets with a CLICKIN Quick Change Adaptation - h Lmax SS j J - Lmin IToo T Bar Max n M TTT Обозначение Designation SS d2 L L3 L min L max D2 D1 a° J Key 1) T Ml ER32 SRF 3X50 JET2 32 SRF 3.00 50.00 31.00 10.0 16.0 32.00 10.00 4 M6 3.00 27.0 0.22 ER32 SRF 3X85 JET2 32 SRF 3.00 85.00 60.50 10.0 16.0 32.00 10.00 4 M6 3.00 27.0 0.29 ER32 SRF 4X50 JET2 32 SRF 4.00 50.00 31.00 12.0 18.0 32.00 10.00 4 M6 3.00 27.0 0.22 ER32 SRF 4X85 JET2 32 SRF 4.00 85.00 60.50 12.0 18.0 32.00 10.00 4 M6 3.00 27.0 0.28 ER32 SRF 5X85 JET2 32 SRF 5.00 85.00 60.50 15.0 21.0 32.00 10.00 4 M6 3.00 27.0 0.25 ER32 SRF 6X50 JET2 32 SRF 6.00 50.00 31.00 18.0 24.0 32.00 11.00 4 M8 4.00 27.0 0.25 ER32 SRF 6X85 JET2 32 SRF 6.00 85.00 60.50 18.0 24.0 32.00 11.00 4 M8 4.00 27.0 0.31 ER32 SRF 8X50 JET2 32 SRF 8.00 50.00 33.00 25.0 31.0 32.00 14.00 4 M10 5.00 27.0 0.26 ER32 SRF 8X85 JET2 32 SRF 8.00 85.00 60.50 25.0 31.0 32.00 14.00 4 M10 5.00 27.0 0.31 ER32 SRF 10X50 JET2 32 SRF 10.00 50.00 35.00 30.0 35.0 32.00 16.00 4 M12 6.00 27.0 0.07 ER32 SRF 10X85 JET2 32 SRF 10.00 85.00 60.50 30.0 36.0 32.00 16.00 4 M12 6.00 27.0 0.32 ER32 SRF 12X50 JET2 32 SRF 12.00 50.00 35.00 32.0 37.0 32.00 20.00 4 M14 6.00 27.0 0.29 ER32 SRF 12X85 JET2 32 SRF 12.00 85.00 50.00 32.0 38.0 32.00 20.00 4 M14 6.00 27.0 0.41 Tightening torque: 24 Kgxm. For carbide tools only. (1) Adjustment screw hexagon key size Member IMC Group kSSlIf ER, SC & SHRINK Collets
