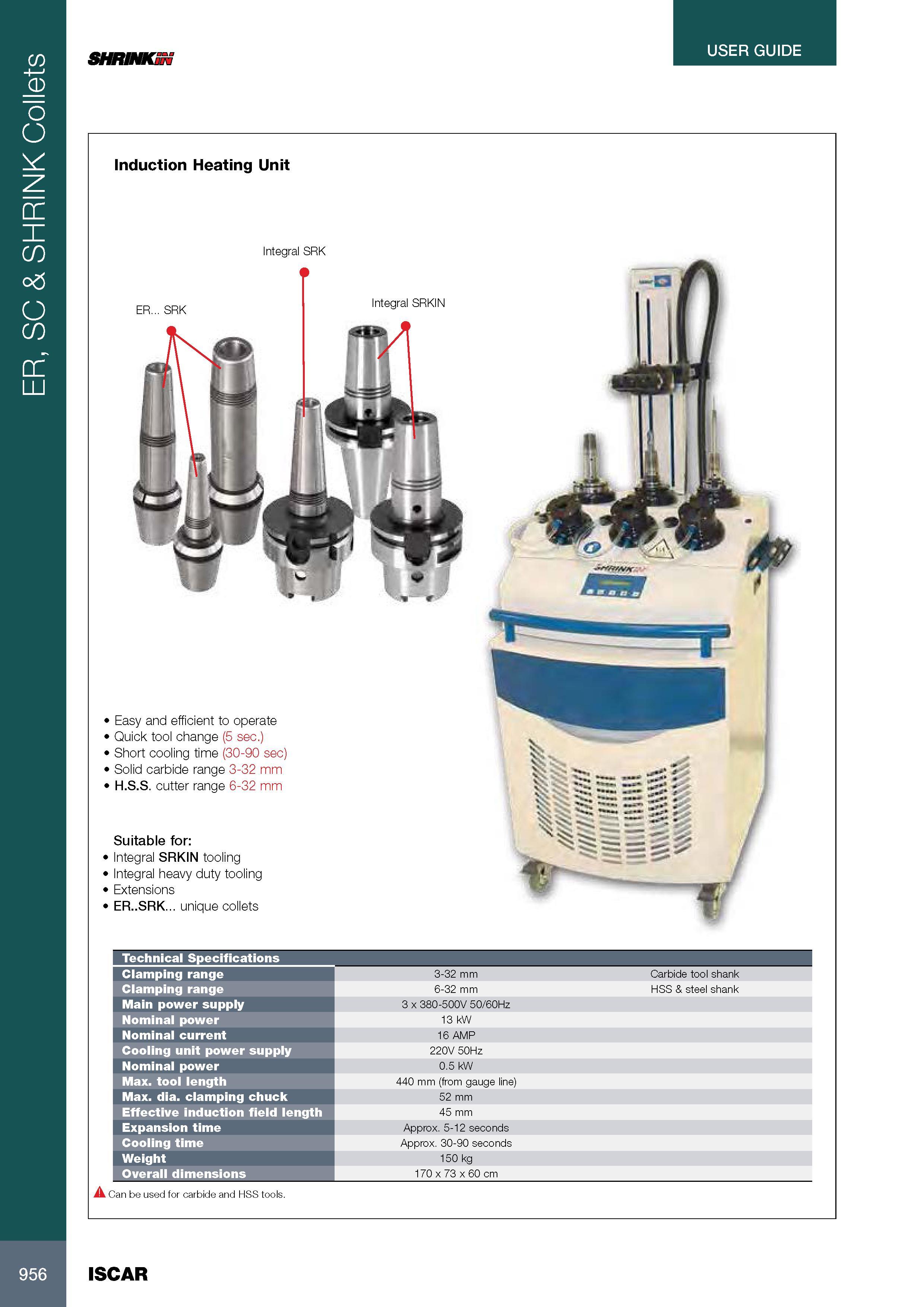

ER, SC & SHRINK Collets USER GUIDE SHRINKS Induction Heating Unit Integral SRK ER... SRK Easy and efficient to operate Quick tool change (5 sec.) Short cooling time (30-90 sec) Solid carbide range 3-32 mm H.S.S. cutter range 6-32 mm Suitable for: Integral SRKIN tooling Integral heavy duty tooling Extensions ER..SRK... unique collets Technical Specifications I Clamping range 3-32 mm Carbide tool shank Clamping range 6-32 mm HSS & steel shank Main power supply 3 x 380-500V 50/60Hz Nominal power 13 kW Nominal current 16 AMP Cooling unit power supply 220V 50Hz Nominal power 0.5 kW Max. tool length 440 mm (from gauge line) Max. dia. clamping chuck 52 mm Effective induction field length 45 mm Expansion time Approx. 5-12 seconds Cooling time Approx. 30-90 seconds Weight 150 kg Overall dimensions 170 x 73 x 60 cm Can be used for carbide and HSS tools. 956 ISCAR
