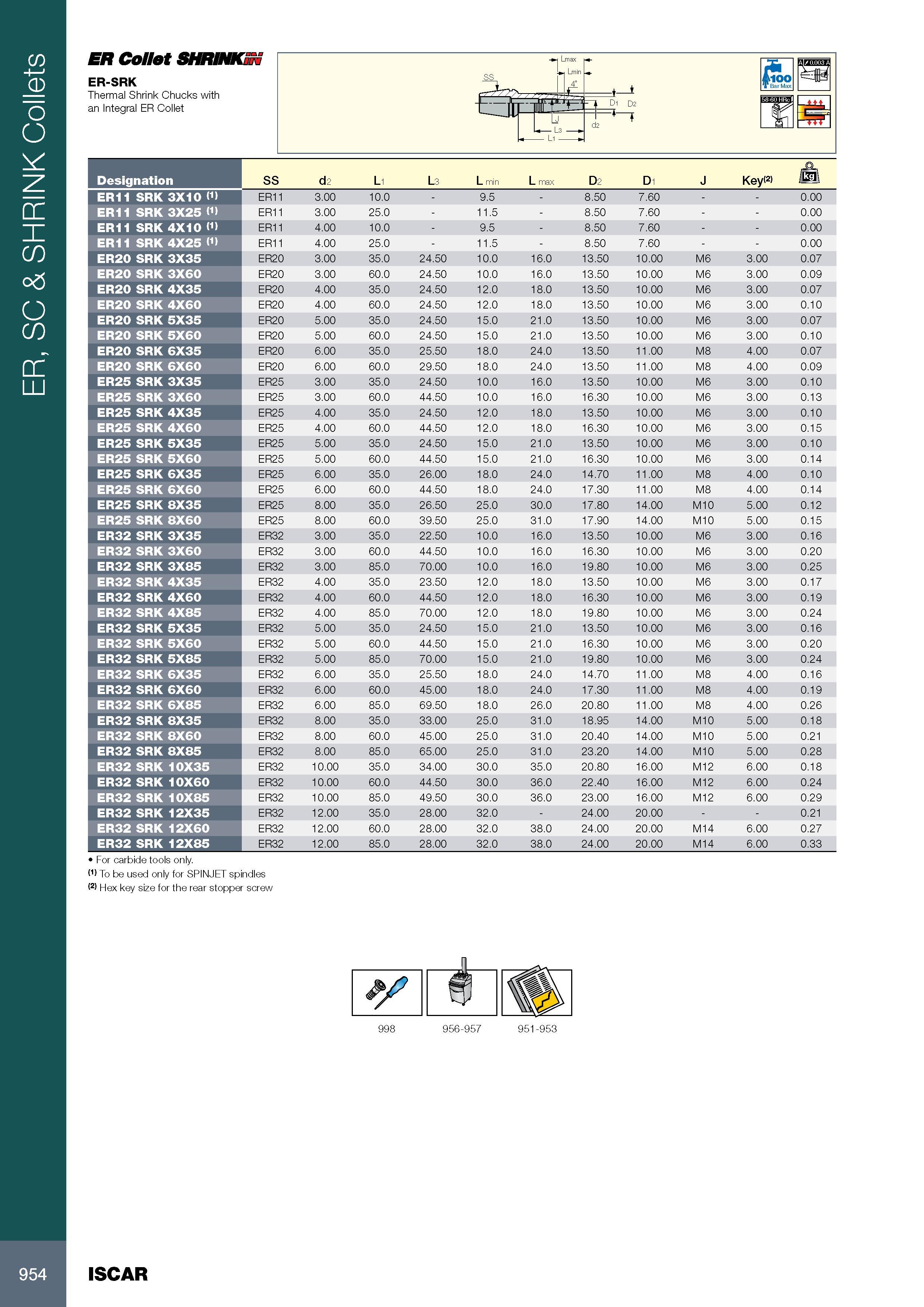

ER, SC & SHRINK Collets ER Collet SHRIMKSN ER-SRK Thermal Shrink Chucks with an Integral ER Collet SS i \ j J d2 Обозначение Designation SS d2 L1 L3 L min L max D2 D1 J Key<2> ER11 SRK 3X10 (1) ER11 3.00 10.0 - 9.5 - 8.50 7.60 0.00 ER11 SRK 3X25 (1) ER11 3.00 25.0 - 11.5 - 8.50 7.60 0.00 ER11 SRK 4X10 (1) ER11 4.00 10.0 - 9.5 - 8.50 7.60 0.00 ER11 SRK 4X25 (1) ER11 4.00 25.0 - 11.5 - 8.50 7.60 0.00 ER20 SRK 3X35 ER20 3.00 35.0 24.50 10.0 16.0 13.50 10.00 M6 3.00 0.07 ER20 SRK 3X60 ER20 3.00 60.0 24.50 10.0 16.0 13.50 10.00 M6 3.00 0.09 ER20 SRK 4X35 ER20 4.00 35.0 24.50 12.0 18.0 13.50 10.00 M6 3.00 0.07 ER20 SRK 4X60 ER20 4.00 60.0 24.50 12.0 18.0 13.50 10.00 M6 3.00 0.10 ER20 SRK 5X35 ER20 5.00 35.0 24.50 15.0 21.0 13.50 10.00 M6 3.00 0.07 ER20 SRK 5X60 ER20 5.00 60.0 24.50 15.0 21.0 13.50 10.00 M6 3.00 0.10 ER20 SRK 6X35 ER20 6.00 35.0 25.50 18.0 24.0 13.50 11.00 M8 4.00 0.07 ER20 SRK 6X60 ER20 6.00 60.0 29.50 18.0 24.0 13.50 11.00 M8 4.00 0.09 ER25 SRK 3X35 ER25 3.00 35.0 24.50 10.0 16.0 13.50 10.00 M6 3.00 0.10 ER25 SRK 3X60 ER25 3.00 60.0 44.50 10.0 16.0 16.30 10.00 M6 3.00 0.13 ER25 SRK 4X35 ER25 4.00 35.0 24.50 12.0 18.0 13.50 10.00 M6 3.00 0.10 ER25 SRK 4X60 ER25 4.00 60.0 44.50 12.0 18.0 16.30 10.00 M6 3.00 0.15 ER25 SRK 5X35 ER25 5.00 35.0 24.50 15.0 21.0 13.50 10.00 M6 3.00 0.10 ER25 SRK 5X60 ER25 5.00 60.0 44.50 15.0 21.0 16.30 10.00 M6 3.00 0.14 ER25 SRK 6X35 ER25 6.00 35.0 26.00 18.0 24.0 14.70 11.00 M8 4.00 0.10 ER25 SRK 6X60 ER25 6.00 60.0 44.50 18.0 24.0 17.30 11.00 M8 4.00 0.14 ER25 SRK 8X35 ER25 8.00 35.0 26.50 25.0 30.0 17.80 14.00 M10 5.00 0.12 ER25 SRK 8X60 ER25 8.00 60.0 39.50 25.0 31.0 17.90 14.00 M10 5.00 0.15 ER32 SRK 3X35 ER32 3.00 35.0 22.50 10.0 16.0 13.50 10.00 M6 3.00 0.16 ER32 SRK 3X60 ER32 3.00 60.0 44.50 10.0 16.0 16.30 10.00 M6 3.00 0.20 ER32 SRK 3X85 ER32 3.00 85.0 70.00 10.0 16.0 19.80 10.00 M6 3.00 0.25 ER32 SRK 4X35 ER32 4.00 35.0 23.50 12.0 18.0 13.50 10.00 M6 3.00 0.17 ER32 SRK 4X60 ER32 4.00 60.0 44.50 12.0 18.0 16.30 10.00 M6 3.00 0.19 ER32 SRK 4X85 ER32 4.00 85.0 70.00 12.0 18.0 19.80 10.00 M6 3.00 0.24 ER32 SRK 5X35 ER32 5.00 35.0 24.50 15.0 21.0 13.50 10.00 M6 3.00 0.16 ER32 SRK 5X60 ER32 5.00 60.0 44.50 15.0 21.0 16.30 10.00 M6 3.00 0.20 ER32 SRK 5X85 ER32 5.00 85.0 70.00 15.0 21.0 19.80 10.00 M6 3.00 0.24 ER32 SRK 6X35 ER32 6.00 35.0 25.50 18.0 24.0 14.70 11.00 M8 4.00 0.16 ER32 SRK 6X60 ER32 6.00 60.0 45.00 18.0 24.0 17.30 11.00 M8 4.00 0.19 ER32 SRK 6X85 ER32 6.00 85.0 69.50 18.0 26.0 20.80 11.00 M8 4.00 0.26 ER32 SRK 8X35 ER32 8.00 35.0 33.00 25.0 31.0 18.95 14.00 M10 5.00 0.18 ER32 SRK 8X60 ER32 8.00 60.0 45.00 25.0 31.0 20.40 14.00 M10 5.00 0.21 ER32 SRK 8X85 ER32 8.00 85.0 65.00 25.0 31.0 23.20 14.00 M10 5.00 0.28 ER32 SRK 10X35 ER32 10.00 35.0 34.00 30.0 35.0 20.80 16.00 M12 6.00 0.18 ER32 SRK 10X60 ER32 10.00 60.0 44.50 30.0 36.0 22.40 16.00 M12 6.00 0.24 ER32 SRK 10X85 ER32 10.00 85.0 49.50 30.0 36.0 23.00 16.00 M12 6.00 0.29 ER32 SRK 12X35 ER32 12.00 35.0 28.00 32.0 - 24.00 20.00 0.21 ER32 SRK 12X60 ER32 12.00 60.0 28.00 32.0 38.0 24.00 20.00 M14 6.00 0.27 ER32 SRK 12X85 ER32 12.00 85.0 28.00 32.0 38.0 24.00 20.00 M14 6.00 0.33 For carbide tools only. (1) To be used only for SPINJET spindles (2) Hex key size for the rear stopper screw 998 956-957 951-953 954 ISCAR
