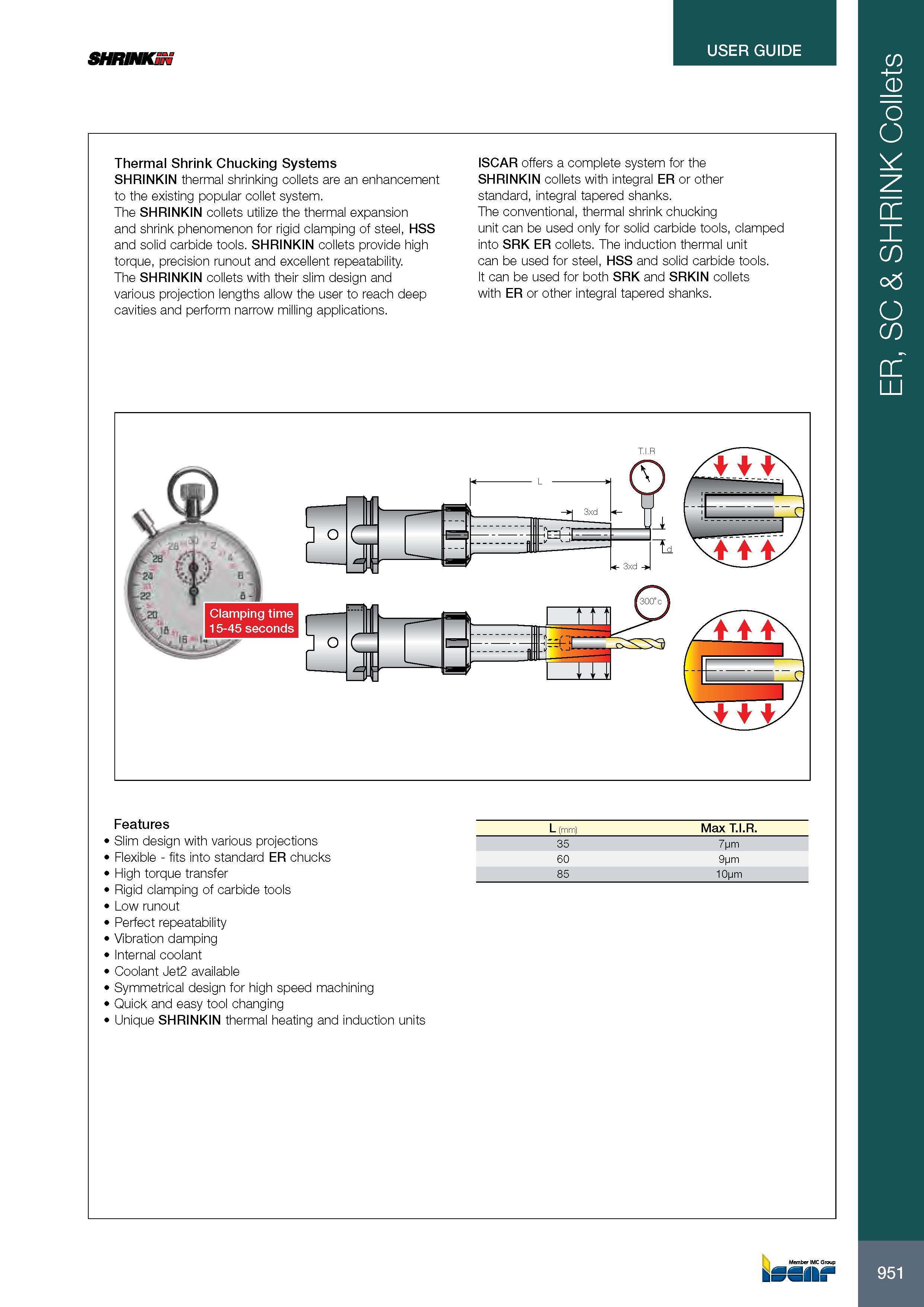

USER GUIDE SHRINKS Thermal Shrink Chucking Systems SHRINKIN thermal shrinking collets are an enhancement to the existing popular collet system. The SHRINKIN collets utilize the thermal expansion and shrink phenomenon for rigid clamping of steel, HSS and solid carbide tools. SHRINKIN collets provide high torque, precision runout and excellent repeatability. The SHRINKIN collets with their slim design and various projection lengths allow the user to reach deep cavities and perform narrow milling applications. ISCAR offers a complete system for the SHRINKIN collets with integral ER or other standard, integral tapered shanks. The conventional, thermal shrink chucking unit can be used only for solid carbide tools, clamped into SRK ER collets. The induction thermal unit can be used for steel, HSS and solid carbide tools. It can be used for both SRK and SRKIN collets with ER or other integral tapered shanks. Features Slim design with various projections Flexible - fits into standard ER chucks High torque transfer Rigid clamping of carbide tools Low runout Perfect repeatability Vibration damping Internal coolant Coolant Jet2 available Symmetrical design for high speed machining Quick and easy tool changing Unique SHRINKIN thermal heating and induction units L (mm) Max T.I.R. 35 7pm 60 9pm 85 10pm 951 ER, SC & SHRINK Collets
