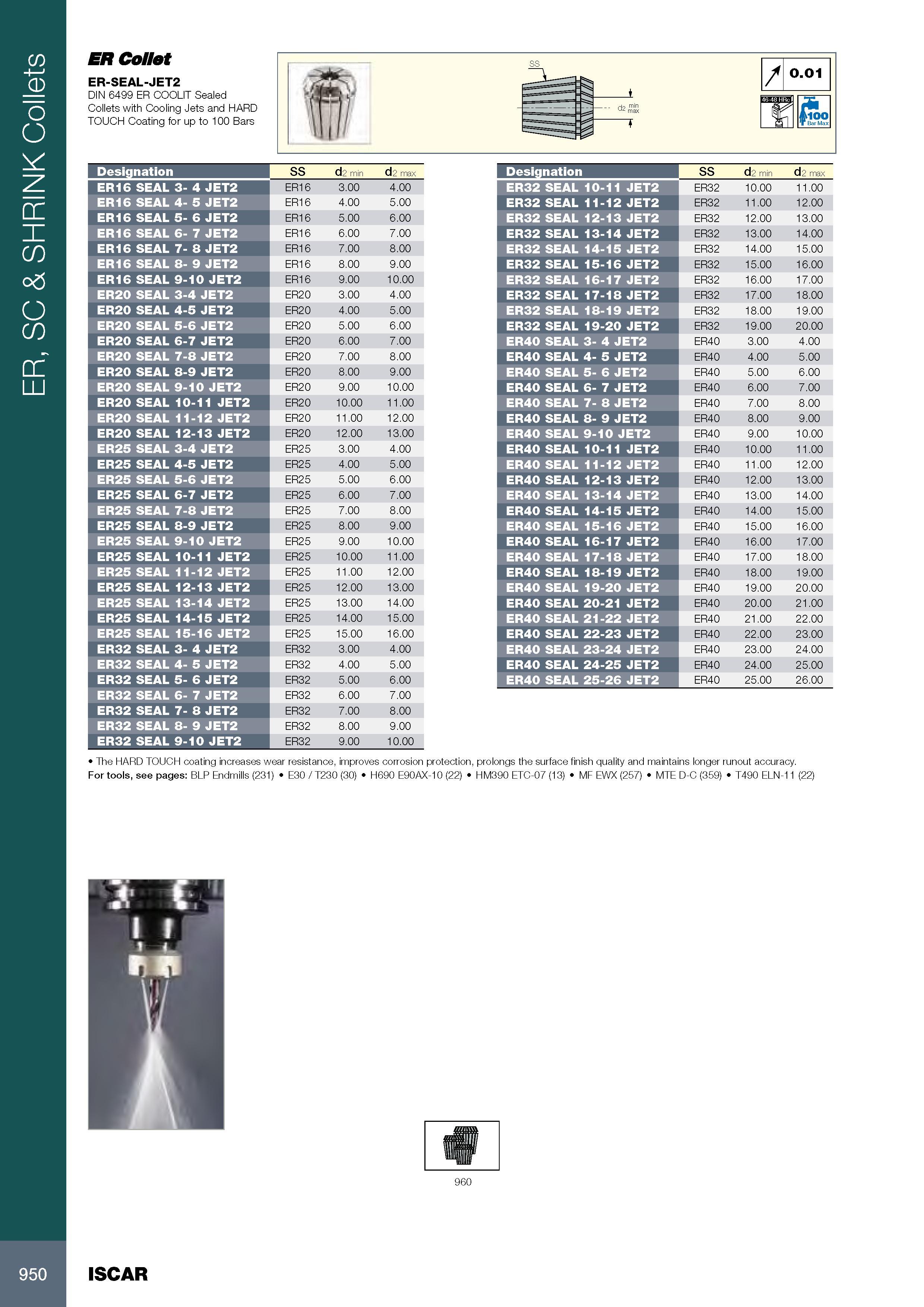

ER, SC & SHRINK Collets ER Collet ER-SEAL-JET2 DIN 6499 ER COOLIT Sealed Collets with Cooling Jets and HARD TOUCH Coating for up to 100 Bars Обозначение Designation SS d2 min d2 max Обозначение Designation SS d2 min d2 max ER16 SEAL 3- 4 JET2 ER16 3.00 4.00 ER32 SEAL 10-11 JET2 ER32 10.00 11.00 ER16 SEAL 4- 5 JET2 ER16 4.00 5.00 ER32 SEAL 11-12 JET2 ER32 11.00 12.00 ER16 SEAL 5- 6 JET2 ER16 5.00 6.00 ER32 SEAL 12-13 JET2 ER32 12.00 13.00 ER16 SEAL 6- 7 JET2 ER16 6.00 7.00 ER32 SEAL 13-14 JET2 ER32 13.00 14.00 ER16 SEAL 7- 8 JET2 ER16 7.00 8.00 ER32 SEAL 14-15 JET2 ER32 14.00 15.00 ER16 SEAL 8- 9 JET2 ER16 8.00 9.00 ER32 SEAL 15-16 JET2 ER32 15.00 16.00 ER16 SEAL 9-10 JET2 ER16 9.00 10.00 ER32 SEAL 16-17 JET2 ER32 16.00 17.00 ER20 SEAL 3-4 JET2 ER20 3.00 4.00 ER32 SEAL 17-18 JET2 ER32 17.00 18.00 ER20 SEAL 4-5 JET2 ER20 4.00 5.00 ER32 SEAL 18-19 JET2 ER32 18.00 19.00 ER20 SEAL 5-6 JET2 ER20 5.00 6.00 ER32 SEAL 19-20 JET2 ER32 19.00 20.00 ER20 SEAL 6-7 JET2 ER20 6.00 7.00 ER40 SEAL 3- 4 JET2 ER40 3.00 4.00 ER20 SEAL 7-8 JET2 ER20 7.00 8.00 ER40 SEAL 4- 5 JET2 ER40 4.00 5.00 ER20 SEAL 8-9 JET2 ER20 8.00 9.00 ER40 SEAL 5- 6 JET2 ER40 5.00 6.00 ER20 SEAL 9-10 JET2 ER20 9.00 10.00 ER40 SEAL 6- 7 JET2 ER40 6.00 7.00 ER20 SEAL 10-11 JET2 ER20 10.00 11.00 ER40 SEAL 7- 8 JET2 ER40 7.00 8.00 ER20 SEAL 11-12 JET2 ER20 11.00 12.00 ER40 SEAL 8- 9 JET2 ER40 8.00 9.00 ER20 SEAL 12-13 JET2 ER20 12.00 13.00 ER40 SEAL 9-10 JET2 ER40 9.00 10.00 ER25 SEAL 3-4 JET2 ER25 3.00 4.00 ER40 SEAL 10-11 JET2 ER40 10.00 11.00 ER25 SEAL 4-5 JET2 ER25 4.00 5.00 ER40 SEAL 11-12 JET2 ER40 11.00 12.00 ER25 SEAL 5-6 JET2 ER25 5.00 6.00 ER40 SEAL 12-13 JET2 ER40 12.00 13.00 ER25 SEAL 6-7 JET2 ER25 6.00 7.00 ER40 SEAL 13-14 JET2 ER40 13.00 14.00 ER25 SEAL 7-8 JET2 ER25 7.00 8.00 ER40 SEAL 14-15 JET2 ER40 14.00 15.00 ER25 SEAL 8-9 JET2 ER25 8.00 9.00 ER40 SEAL 15-16 JET2 ER40 15.00 16.00 ER25 SEAL 9-10 JET2 ER25 9.00 10.00 ER40 SEAL 16-17 JET2 ER40 16.00 17.00 ER25 SEAL 10-11 JET2 ER25 10.00 11.00 ER40 SEAL 17-18 JET2 ER40 17.00 18.00 ER25 SEAL 11-12 JET2 ER25 11.00 12.00 ER40 SEAL 18-19 JET2 ER40 18.00 19.00 ER25 SEAL 12-13 JET2 ER25 12.00 13.00 ER40 SEAL 19-20 JET2 ER40 19.00 20.00 ER25 SEAL 13-14 JET2 ER25 13.00 14.00 ER40 SEAL 20-21 JET2 ER40 20.00 21.00 ER25 SEAL 14-15 JET2 ER25 14.00 15.00 ER40 SEAL 21-22 JET2 ER40 21.00 22.00 ER25 SEAL 15-16 JET2 ER25 15.00 16.00 ER40 SEAL 22-23 JET2 ER40 22.00 23.00 ER32 SEAL 3- 4 JET2 ER32 3.00 4.00 ER40 SEAL 23-24 JET2 ER40 23.00 24.00 ER32 SEAL 4- 5 JET2 ER32 4.00 5.00 ER40 SEAL 24-25 JET2 ER40 24.00 25.00 ER32 SEAL 5- 6 JET2 ER32 5.00 6.00 ER40 SEAL 25-26 JET2 ER40 25.00 26.00 ER32 SEAL 6- 7 JET2 ER32 6.00 7.00 ER32 SEAL 7- 8 JET2 ER32 7.00 8.00 ER32 SEAL 8- 9 JET2 ER32 8.00 9.00 ER32 SEAL 9-10 JET2 ER32 9.00 10.00 The HARD TOUCH coating increases wear resistance, improves corrosion protection, prolongs the surface finish quality and maintains longer runout accuracy. For tools, see pages: BLP Endmills (231) E30 / T230 (30) H690 E90AX-10 (22) HM390 ETC-07 (13) MF EWX (257) MTE D-C (359) T490 ELN-11 (22) 960 950 ISCAR
