951 Каталог ISCAR 2017 Вращающийся режущий инструмент и инструментальная оснастка Стр.947

Каталог ISCAR 2017 Ротационный инструмент Стр. 947 0951 ENG Lab2u

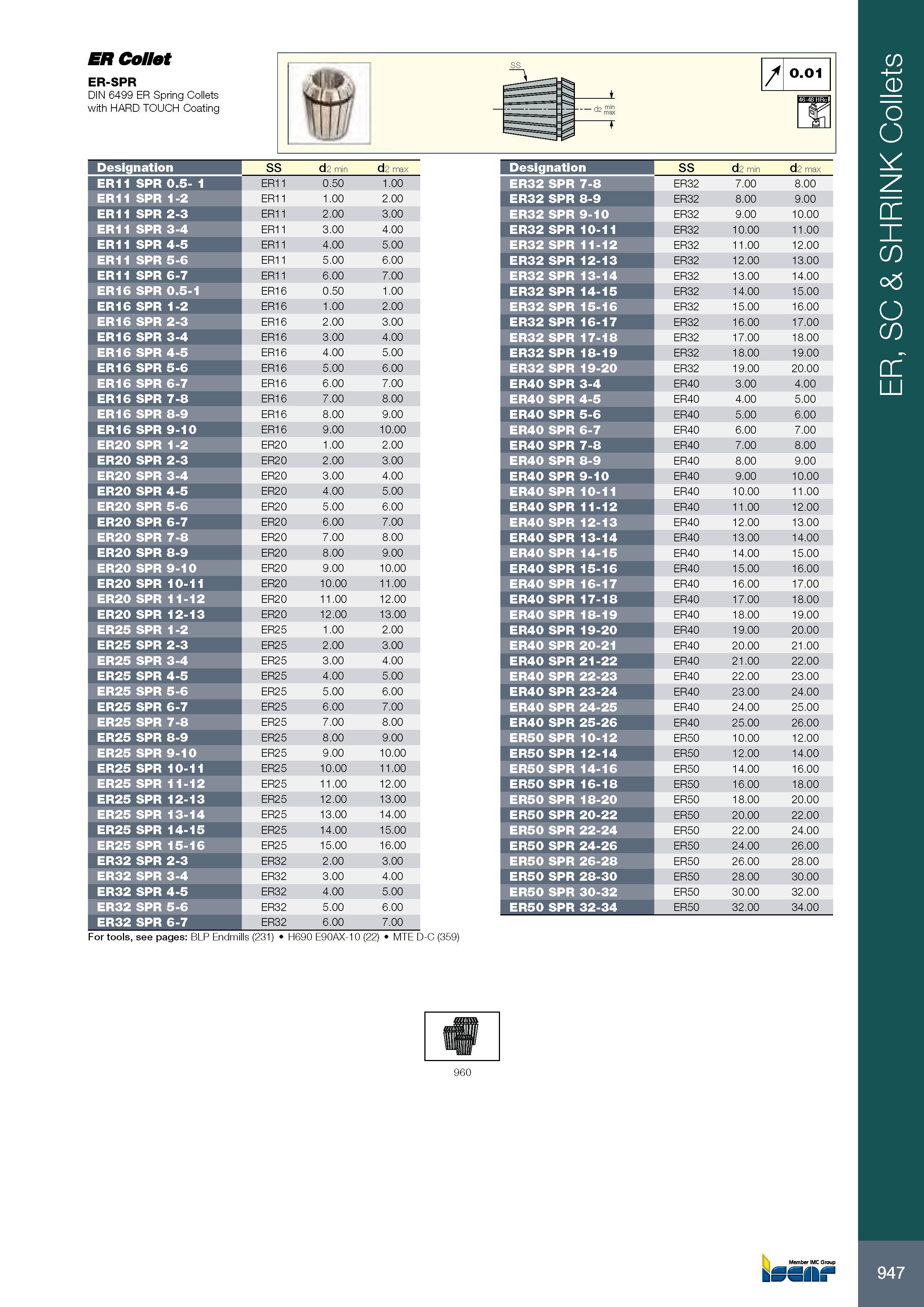

947 ER Collet ER-SPR DIN 6499 ER Spring Collets with HARD TOUCH Coating Обозначение Designation SS d2 min d2 max Обозначение Designation SS d2 min d2 max ER11 SPR 0.5- 1 ER11 0.50 1.00 ER32 SPR 7-8 ER32 7.00 8.00 ER11 SPR 1-2 ER11 1.00 2.00 ER32 SPR 8-9 ER32 8.00 9.00 ER11 SPR 2-3 ER11 2.00 3.00 ER32 SPR 9-10 ER32 9.00 10.00 ER11 SPR 3-4 ER11 3.00 4.00 ER32 SPR 10-11 ER32 10.00 11.00 ER11 SPR 4-5 ER11 4.00 5.00 ER32 SPR 11-12 ER32 11.00 12.00 ER11 SPR 5-6 ER11 5.00 6.00 ER32 SPR 12-13 ER32 12.00 13.00 ER11 SPR 6-7 ER11 6.00 7.00 ER32 SPR 13-14 ER32 13.00 14.00 ER16 SPR 0.5-1 ER16 0.50 1.00 ER32 SPR 14-15 ER32 14.00 15.00 ER16 SPR 1-2 ER16 1.00 2.00 ER32 SPR 15-16 ER32 15.00 16.00 ER16 SPR 2-3 ER16 2.00 3.00 ER32 SPR 16-17 ER32 16.00 17.00 ER16 SPR 3-4 ER16 3.00 4.00 ER32 SPR 17-18 ER32 17.00 18.00 ER16 SPR 4-5 ER16 4.00 5.00 ER32 SPR 18-19 ER32 18.00 19.00 ER16 SPR 5-6 ER16 5.00 6.00 ER32 SPR 19-20 ER32 19.00 20.00 ER16 SPR 6-7 ER16 6.00 7.00 ER40 SPR 3-4 ER40 3.00 4.00 ER16 SPR 7-8 ER16 7.00 8.00 ER40 SPR 4-5 ER40 4.00 5.00 ER16 SPR 8-9 ER16 8.00 9.00 ER40 SPR 5-6 ER40 5.00 6.00 ER16 SPR 9-10 ER16 9.00 10.00 ER40 SPR 6-7 ER40 6.00 7.00 ER20 SPR 1-2 ER20 1.00 2.00 ER40 SPR 7-8 ER40 7.00 8.00 ER20 SPR 2-3 ER20 2.00 3.00 ER40 SPR 8-9 ER40 8.00 9.00 ER20 SPR 3-4 ER20 3.00 4.00 ER40 SPR 9-10 ER40 9.00 10.00 ER20 SPR 4-5 ER20 4.00 5.00 ER40 SPR 10-11 ER40 10.00 11.00 ER20 SPR 5-6 ER20 5.00 6.00 ER40 SPR 11-12 ER40 11.00 12.00 ER20 SPR 6-7 ER20 6.00 7.00 ER40 SPR 12-13 ER40 12.00 13.00 ER20 SPR 7-8 ER20 7.00 8.00 ER40 SPR 13-14 ER40 13.00 14.00 ER20 SPR 8-9 ER20 8.00 9.00 ER40 SPR 14-15 ER40 14.00 15.00 ER20 SPR 9-10 ER20 9.00 10.00 ER40 SPR 15-16 ER40 15.00 16.00 ER20 SPR 10-11 ER20 10.00 11.00 ER40 SPR 16-17 ER40 16.00 17.00 ER20 SPR 11-12 ER20 11.00 12.00 ER40 SPR 17-18 ER40 17.00 18.00 ER20 SPR 12-13 ER20 12.00 13.00 ER40 SPR 18-19 ER40 18.00 19.00 ER25 SPR 1-2 ER25 1.00 2.00 ER40 SPR 19-20 ER40 19.00 20.00 ER25 SPR 2-3 ER25 2.00 3.00 ER40 SPR 20-21 ER40 20.00 21.00 ER25 SPR 3-4 ER25 3.00 4.00 ER40 SPR 21-22 ER40 21.00 22.00 ER25 SPR 4-5 ER25 4.00 5.00 ER40 SPR 22-23 ER40 22.00 23.00 ER25 SPR 5-6 ER25 5.00 6.00 ER40 SPR 23-24 ER40 23.00 24.00 ER25 SPR 6-7 ER25 6.00 7.00 ER40 SPR 24-25 ER40 24.00 25.00 ER25 SPR 7-8 ER25 7.00 8.00 ER40 SPR 25-26 ER40 25.00 26.00 ER25 SPR 8-9 ER25 8.00 9.00 ER50 SPR 10-12 ER50 10.00 12.00 ER25 SPR 9-10 ER25 9.00 10.00 ER50 SPR 12-14 ER50 12.00 14.00 ER25 SPR 10-11 ER25 10.00 11.00 ER50 SPR 14-16 ER50 14.00 16.00 ER25 SPR 11-12 ER25 11.00 12.00 ER50 SPR 16-18 ER50 16.00 18.00 ER25 SPR 12-13 ER25 12.00 13.00 ER50 SPR 18-20 ER50 18.00 20.00 ER25 SPR 13-14 ER25 13.00 14.00 ER50 SPR 20-22 ER50 20.00 22.00 ER25 SPR 14-15 ER25 14.00 15.00 ER50 SPR 22-24 ER50 22.00 24.00 ER25 SPR 15-16 ER25 15.00 16.00 ER50 SPR 24-26 ER50 24.00 26.00 ER32 SPR 2-3 ER32 2.00 3.00 ER50 SPR 26-28 ER50 26.00 28.00 ER32 SPR 3-4 ER32 3.00 4.00 ER50 SPR 28-30 ER50 28.00 30.00 ER32 SPR 4-5 ER32 4.00 5.00 ER50 SPR 30-32 ER50 30.00 32.00 ER32 SPR 5-6 ER32 5.00 6.00 ER50 SPR 32-34 ER50 32.00 34.00 ER32 SPR 6-7 ER32 6.00 7.00 For tools, see pages: BLP Endmills (231) H690 E90AX-10 (22) MTE D-C (359) ER, SC & SHRINK Collets
