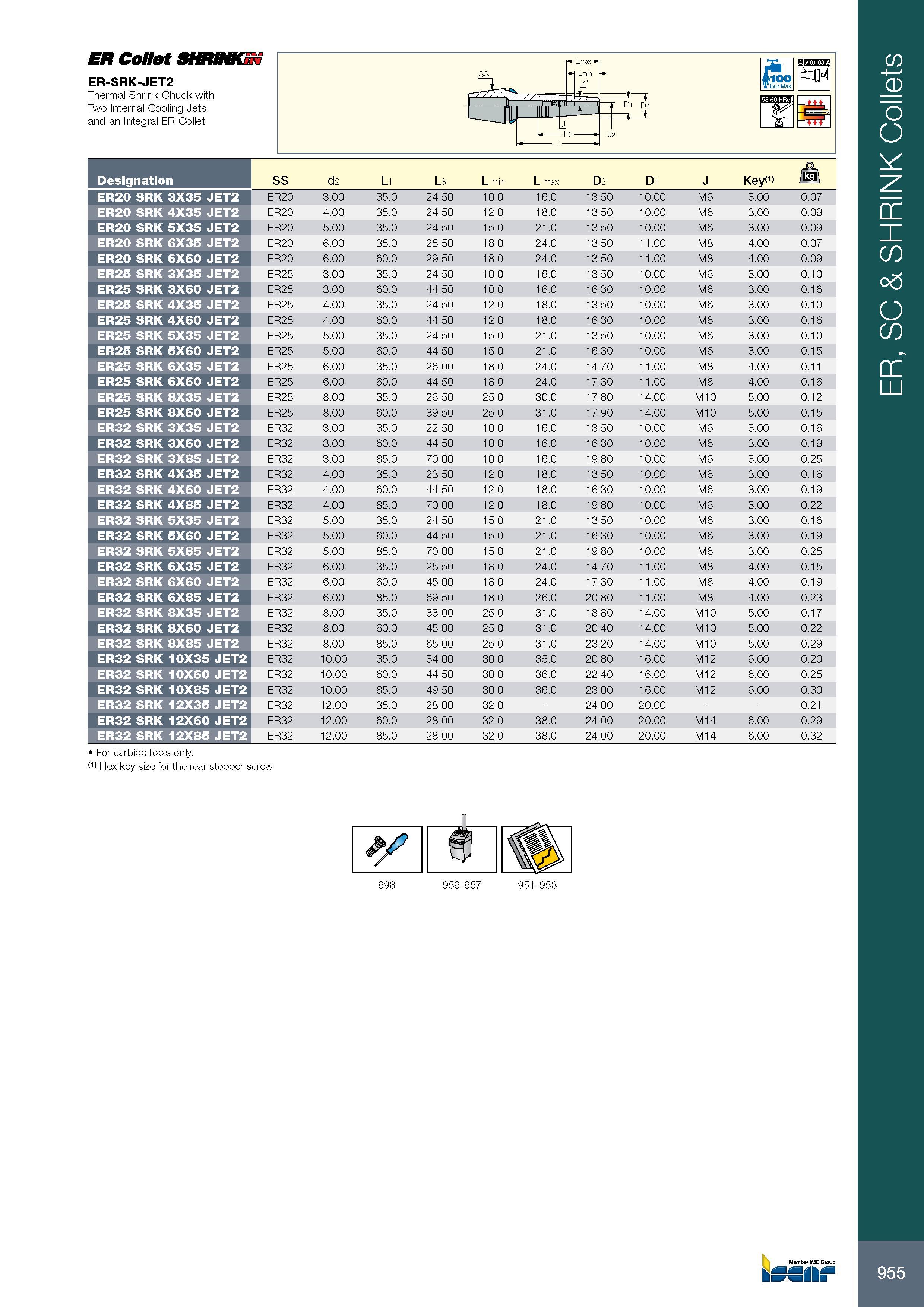

955 ER Collet SHRINK ER-SRK-JET2 Thermal Shrink Chuck with Two Internal Cooling Jets and an Integral ER Collet (&, T Bar Max g 511 Обозначение Designation SS d2 L1 L3 L min L max D2 D1 J Key<1> / g\ ER20 SRK 3X35 JET2 ER20 3.00 35.0 24.50 10.0 16.0 13.50 10.00 M6 3.00 0.07 ER20 SRK 4X35 JET2 ER20 4.00 35.0 24.50 12.0 18.0 13.50 10.00 M6 3.00 0.09 ER20 SRK 5X35 JET2 ER20 5.00 35.0 24.50 15.0 21.0 13.50 10.00 M6 3.00 0.09 ER20 SRK 6X35 JET2 ER20 6.00 35.0 25.50 18.0 24.0 13.50 11.00 M8 4.00 0.07 ER20 SRK 6X60 JET2 ER20 6.00 60.0 29.50 18.0 24.0 13.50 11.00 M8 4.00 0.09 ER25 SRK 3X35 JET2 ER25 3.00 35.0 24.50 10.0 16.0 13.50 10.00 M6 3.00 0.10 ER25 SRK 3X60 JET2 ER25 3.00 60.0 44.50 10.0 16.0 16.30 10.00 M6 3.00 0.16 ER25 SRK 4X35 JET2 ER25 4.00 35.0 24.50 12.0 18.0 13.50 10.00 M6 3.00 0.10 ER25 SRK 4X60 JET2 ER25 4.00 60.0 44.50 12.0 18.0 16.30 10.00 M6 3.00 0.16 ER25 SRK 5X35 JET2 ER25 5.00 35.0 24.50 15.0 21.0 13.50 10.00 M6 3.00 0.10 ER25 SRK 5X60 JET2 ER25 5.00 60.0 44.50 15.0 21.0 16.30 10.00 M6 3.00 0.15 ER25 SRK 6X35 JET2 ER25 6.00 35.0 26.00 18.0 24.0 14.70 11.00 M8 4.00 0.11 ER25 SRK 6X60 JET2 ER25 6.00 60.0 44.50 18.0 24.0 17.30 11.00 M8 4.00 0.16 ER25 SRK 8X35 JET2 ER25 8.00 35.0 26.50 25.0 30.0 17.80 14.00 M10 5.00 0.12 ER25 SRK 8X60 JET2 ER25 8.00 60.0 39.50 25.0 31.0 17.90 14.00 M10 5.00 0.15 ER32 SRK 3X35 JET2 ER32 3.00 35.0 22.50 10.0 16.0 13.50 10.00 M6 3.00 0.16 ER32 SRK 3X60 JET2 ER32 3.00 60.0 44.50 10.0 16.0 16.30 10.00 M6 3.00 0.19 ER32 SRK 3X85 JET2 ER32 3.00 85.0 70.00 10.0 16.0 19.80 10.00 M6 3.00 0.25 ER32 SRK 4X35 JET2 ER32 4.00 35.0 23.50 12.0 18.0 13.50 10.00 M6 3.00 0.16 ER32 SRK 4X60 JET2 ER32 4.00 60.0 44.50 12.0 18.0 16.30 10.00 M6 3.00 0.19 ER32 SRK 4X85 JET2 ER32 4.00 85.0 70.00 12.0 18.0 19.80 10.00 M6 3.00 0.22 ER32 SRK 5X35 JET2 ER32 5.00 35.0 24.50 15.0 21.0 13.50 10.00 M6 3.00 0.16 ER32 SRK 5X60 JET2 ER32 5.00 60.0 44.50 15.0 21.0 16.30 10.00 M6 3.00 0.19 ER32 SRK 5X85 JET2 ER32 5.00 85.0 70.00 15.0 21.0 19.80 10.00 M6 3.00 0.25 ER32 SRK 6X35 JET2 ER32 6.00 35.0 25.50 18.0 24.0 14.70 11.00 M8 4.00 0.15 ER32 SRK 6X60 JET2 ER32 6.00 60.0 45.00 18.0 24.0 17.30 11.00 M8 4.00 0.19 ER32 SRK 6X85 JET2 ER32 6.00 85.0 69.50 18.0 26.0 20.80 11.00 M8 4.00 0.23 ER32 SRK 8X35 JET2 ER32 8.00 35.0 33.00 25.0 31.0 18.80 14.00 M10 5.00 0.17 ER32 SRK 8X60 JET2 ER32 8.00 60.0 45.00 25.0 31.0 20.40 14.00 M10 5.00 0.22 ER32 SRK 8X85 JET2 ER32 8.00 85.0 65.00 25.0 31.0 23.20 14.00 M10 5.00 0.29 ER32 SRK 10X35 JET2 ER32 10.00 35.0 34.00 30.0 35.0 20.80 16.00 M12 6.00 0.20 ER32 SRK 10X60 JET2 ER32 10.00 60.0 44.50 30.0 36.0 22.40 16.00 M12 6.00 0.25 ER32 SRK 10X85 JET2 ER32 10.00 85.0 49.50 30.0 36.0 23.00 16.00 M12 6.00 0.30 ER32 SRK 12X35 JET2 ER32 12.00 35.0 28.00 32.0 - 24.00 20.00 0.21 ER32 SRK 12X60 JET2 ER32 12.00 60.0 28.00 32.0 38.0 24.00 20.00 M14 6.00 0.29 ER32 SRK 12X85 JET2 ER32 12.00 85.0 28.00 32.0 38.0 24.00 20.00 M14 6.00 0.32 For carbide tools only. (1) Hex key size for the rear stopper screw ER, SC & SHRINK Collets
