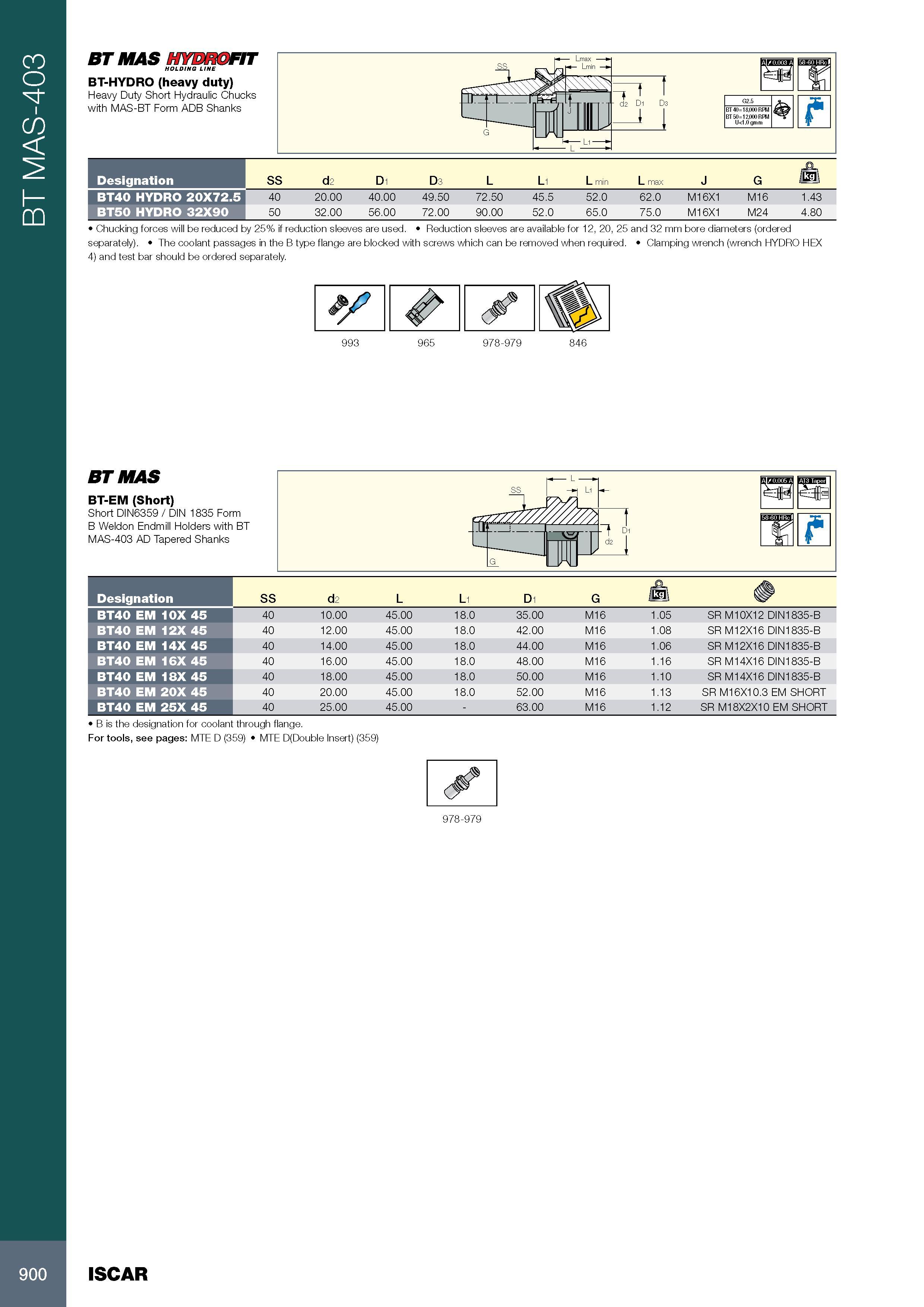

BT MAS-403 BT MAS HYDROFIT HOLDING LINE BT-HYDRO (heavy duty) Heavy Duty Short Hydraulic Chucks with MAS-BT Form ADB Shanks BT 40=18,000 RPM < BT 50=12,000 RPM Обозначение Designation BT40 HYDRO 20X72.5 BT50 HYDRO 32X90 SS d2 D1 D3 L L1 L min L max J G O /kg\ 40 20.00 40.00 49.50 72.50 45.5 52.0 62.0 M16X1 M16 1.43 50 32.00 56.00 72.00 90.00 52.0 65.0 75.0 M16X1 M24 4.80 Chucking forces will be reduced by 25% if reduction sleeves are used. Reduction sleeves are available for 12, 20, 25 and 32 mm bore diameters (ordered separately). The coolant passages in the B type flange are blocked with screws which can be removed when required. Clamping wrench (wrench HYDRO HEX 4) and test bar should be ordered separately. BT MAS BT-EM (Short) Short DIN6359 / DIN 1835 Form B Weldon Endmill Holders with BT MAS-403 AD Tapered Shanks Обозначение Designation SS d2 L L1 D1 G / kgi\ BT40 EM 10X 45 40 10.00 45.00 18.0 35.00 M16 1.05 SR M10X12 DIN1835-B BT40 EM 12X 45 40 12.00 45.00 18.0 42.00 M16 1.08 SR M12X16 DIN1835-B BT40 EM 14X 45 40 14.00 45.00 18.0 44.00 M16 1.06 SR M12X16 DIN1835-B BT40 EM 16X 45 40 16.00 45.00 18.0 48.00 M16 1.16 SR M14X16 DIN1835-B BT40 EM 18X 45 40 18.00 45.00 18.0 50.00 M16 1.10 SR M14X16 DIN1835-B BT40 EM 20X 45 40 20.00 45.00 18.0 52.00 M16 1.13 SR M16X10.3 EM SHORT BT40 EM 25X 45 40 25.00 45.00 - 63.00 M16 1.12 SR M18X2X10 EM SHORT B is the designation for coolant through flange. For tools, see pages: MTE D (359) MTE D(Double Insert) (359) 978-979 900 ISCAR
