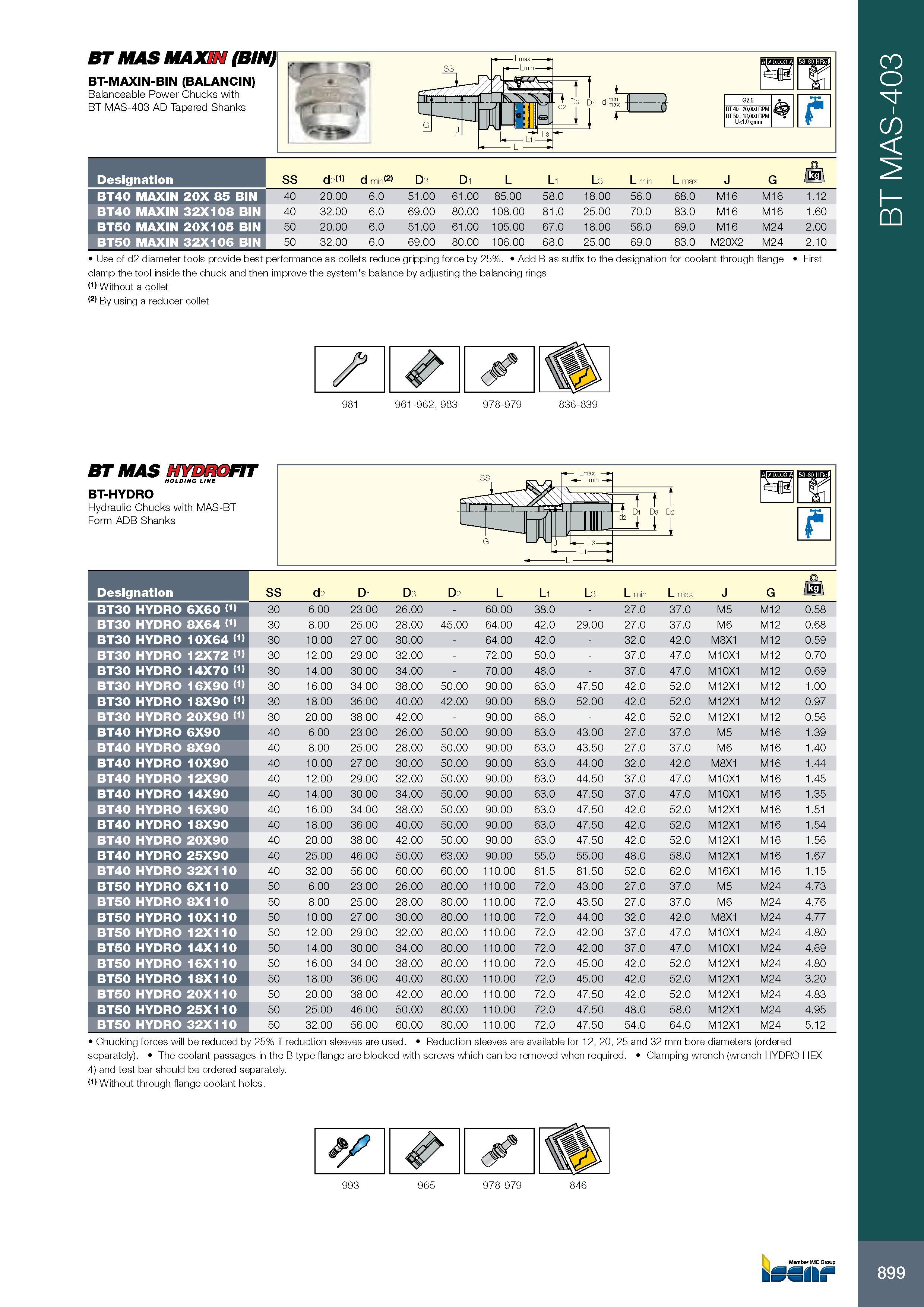

903 Каталог ISCAR 2017 Вращающийся режущий инструмент и инструментальная оснастка Стр.899

Каталог ISCAR 2017 Ротационный инструмент Стр. 899 0903 ENG Lab2u

899 BT MAS MAXIN (BIN) BT-MAXIN-BIN (BALANCIN) Balanceable Power Chucks with BT MAS-403 AD Tapered Shanks Обозначение Designation BT40 MAXIN 20X 85 BIN BT40 MAXIN 32X108 BIN BT50 MAXIN 20X105 BIN BT50 MAXIN 32X106 BIN SS d2<1> d min(2) D3 D1 L L1 L3 L min L max J G i ra 40 20.00 6.0 51.00 61.00 85.00 58.0 18.00 56.0 68.0 M16 M16 1.12 40 32.00 6.0 69.00 80.00 108.00 81.0 25.00 70.0 83.0 M16 M16 1.60 50 20.00 6.0 51.00 61.00 105.00 67.0 18.00 56.0 69.0 M16 M24 2.00 50 32.00 6.0 69.00 80.00 106.00 68.0 25.00 69.0 83.0 M20X2 M24 2.10 Use of d2 diameter tools provide best performance as collets reduce gripping force by 25%. Add B as suffix to the designation for coolant through flange First clamp the tool inside the chuck and then improve the system's balance by adjusting the balancing rings (1) Without a collet (2) By using a reducer collet BT MAS HYDROFIT HOLDING LINE BT-HYDRO Hydraulic Chucks with MAS-BT Form ADB Shanks Обозначение Designation SS d2 D1 D3 D2 L L1 L3 L min L max J G M BT30 HYDRO 6X60 (1) 30 6.00 23.00 26.00 - 60.00 38.0 - 27.0 37.0 M5 M12 0.58 BT30 HYDRO 8X64 (1) 30 8.00 25.00 28.00 45.00 64.00 42.0 29.00 27.0 37.0 M6 M12 0.68 BT30 HYDRO 10X64 (1) 30 10.00 27.00 30.00 - 64.00 42.0 - 32.0 42.0 M8X1 M12 0.59 BT30 HYDRO 12X72 (1) 30 12.00 29.00 32.00 - 72.00 50.0 - 37.0 47.0 M10X1 M12 0.70 BT30 HYDRO 14X70 (1) 30 14.00 30.00 34.00 - 70.00 48.0 - 37.0 47.0 M10X1 M12 0.69 BT30 HYDRO 16X90 (1) 30 16.00 34.00 38.00 50.00 90.00 63.0 47.50 42.0 52.0 M12X1 M12 1.00 BT30 HYDRO 18X90 (1) 30 18.00 36.00 40.00 42.00 90.00 68.0 52.00 42.0 52.0 M12X1 M12 0.97 BT30 HYDRO 20X90 (1) 30 20.00 38.00 42.00 - 90.00 68.0 - 42.0 52.0 M12X1 M12 0.56 BT40 HYDRO 6X90 40 6.00 23.00 26.00 50.00 90.00 63.0 43.00 27.0 37.0 M5 M16 1.39 BT40 HYDRO 8X90 40 8.00 25.00 28.00 50.00 90.00 63.0 43.50 27.0 37.0 M6 M16 1.40 BT40 HYDRO 10X90 40 10.00 27.00 30.00 50.00 90.00 63.0 44.00 32.0 42.0 M8X1 M16 1.44 BT40 HYDRO 12X90 40 12.00 29.00 32.00 50.00 90.00 63.0 44.50 37.0 47.0 M10X1 M16 1.45 BT40 HYDRO 14X90 40 14.00 30.00 34.00 50.00 90.00 63.0 47.50 37.0 47.0 M10X1 M16 1.35 BT40 HYDRO 16X90 40 16.00 34.00 38.00 50.00 90.00 63.0 47.50 42.0 52.0 M12X1 M16 1.51 BT40 HYDRO 18X90 40 18.00 36.00 40.00 50.00 90.00 63.0 47.50 42.0 52.0 M12X1 M16 1.54 BT40 HYDRO 20X90 40 20.00 38.00 42.00 50.00 90.00 63.0 47.50 42.0 52.0 M12X1 M16 1.56 BT40 HYDRO 25X90 40 25.00 46.00 50.00 63.00 90.00 55.0 55.00 48.0 58.0 M12X1 M16 1.67 BT40 HYDRO 32X110 40 32.00 56.00 60.00 60.00 110.00 81.5 81.50 52.0 62.0 M16X1 M16 1.15 BT50 HYDRO 6X110 50 6.00 23.00 26.00 80.00 110.00 72.0 43.00 27.0 37.0 M5 M24 4.73 BT50 HYDRO 8X110 50 8.00 25.00 28.00 80.00 110.00 72.0 43.50 27.0 37.0 M6 M24 4.76 BT50 HYDRO 10X110 50 10.00 27.00 30.00 80.00 110.00 72.0 44.00 32.0 42.0 M8X1 M24 4.77 BT50 HYDRO 12X110 50 12.00 29.00 32.00 80.00 110.00 72.0 42.00 37.0 47.0 M10X1 M24 4.80 BT50 HYDRO 14X110 50 14.00 30.00 34.00 80.00 110.00 72.0 42.00 37.0 47.0 M10X1 M24 4.69 BT50 HYDRO 16X110 50 16.00 34.00 38.00 80.00 110.00 72.0 45.00 42.0 52.0 M12X1 M24 4.80 BT50 HYDRO 18X110 50 18.00 36.00 40.00 80.00 110.00 72.0 45.00 42.0 52.0 M12X1 M24 3.20 BT50 HYDRO 20X110 50 20.00 38.00 42.00 80.00 110.00 72.0 47.50 42.0 52.0 M12X1 M24 4.83 BT50 HYDRO 25X110 50 25.00 46.00 50.00 80.00 110.00 72.0 47.50 48.0 58.0 M12X1 M24 4.95 BT50 HYDRO 32X110 50 32.00 56.00 60.00 80.00 110.00 72.0 47.50 54.0 64.0 M12X1 M24 5.12 Chucking forces will be reduced by 25% if reduction sleeves are used. Reduction sleeves are available for 12, 20, 25 and 32 mm bore diameters (ordered separately). The coolant passages in the B type flange are blocked with screws which can be removed when required. Clamping wrench (wrench HYDRO HEX 4) and test bar should be ordered separately. (1) Without through flange coolant holes. BT MAS-403
