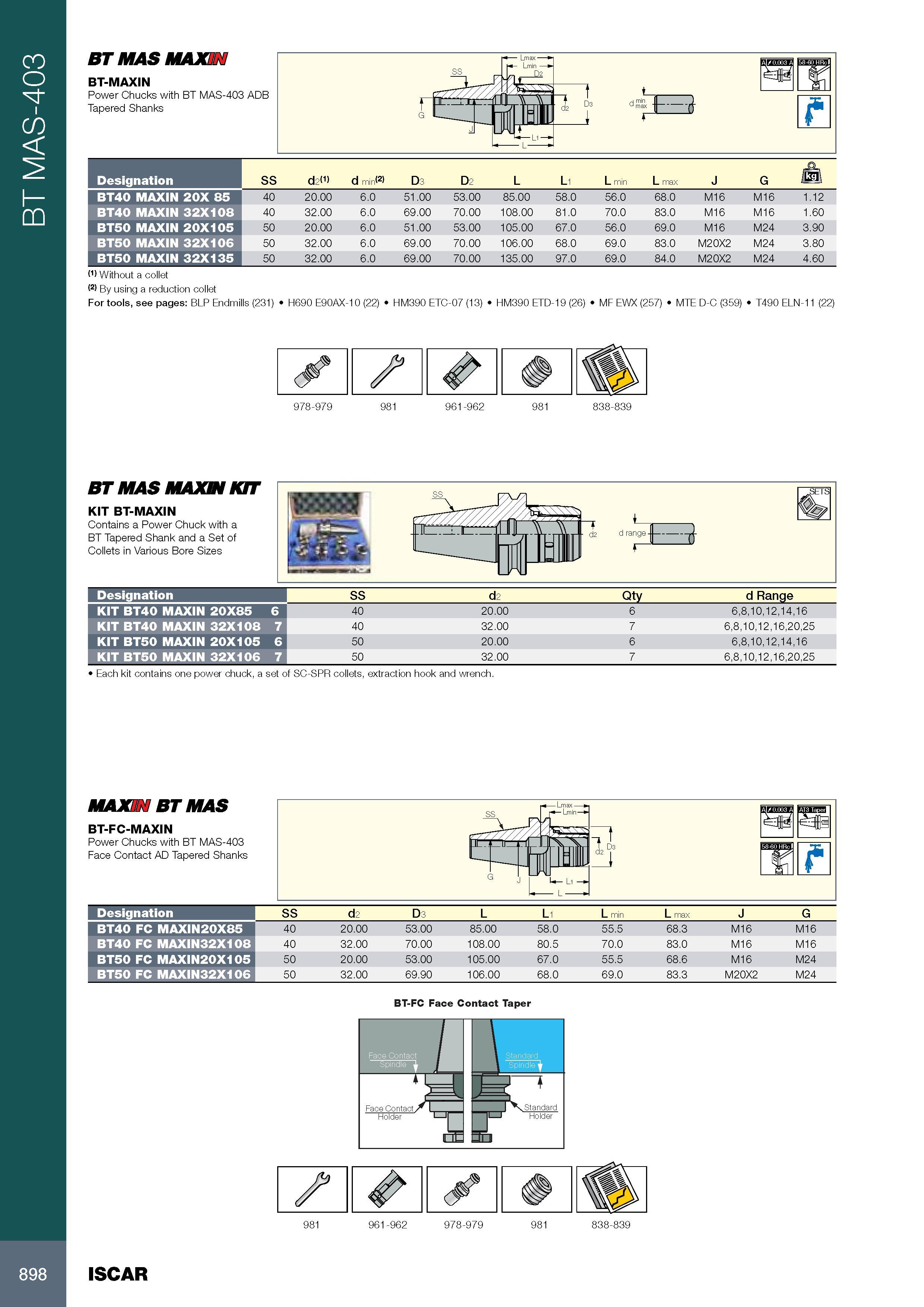

BT MAS-403 BT MAS MAXIM BT-MAXIN Power Chucks with BT MAS-403 ADB Tapered Shanks SS ,-F Lmax BS 4-, t t n Hi w I'd2 D3 dm, F J T Обозначение Designation SS d2<1> d min(2) D3 D2 L L1 L min L max J G /k l\ BT40 MAXIN 20X 85 40 20.00 6.0 51.00 53.00 85.00 58.0 56.0 68.0 M16 M16 1.12 BT40 MAXIN 32X108 40 32.00 6.0 69.00 70.00 108.00 81.0 70.0 83.0 M16 M16 1.60 BT50 MAXIN 20X105 50 20.00 6.0 51.00 53.00 105.00 67.0 56.0 69.0 M16 M24 3.90 BT50 MAXIN 32X106 50 32.00 6.0 69.00 70.00 106.00 68.0 69.0 83.0 M20X2 M24 3.80 BT50 MAXIN 32X135 50 32.00 6.0 69.00 70.00 135.00 97.0 69.0 84.0 M20X2 M24 4.60 (1> Without a collet (2> By using a reduction collet For tools, see pages: BLP Endmills (231) H690 E90AX-10 (22) HM390 ETC-07 (13) HM390 ETD-19 (26) MF EWX (257) MTE D-C (359) T490 ELN-11 (22) 978-979 981 961-962 981 838-839 BT MAS MAXM KTT KIT BT-MAXIN Contains a Power Chuck with a BT Tapered Shank and a Set of Collets in Various Bore Sizes Обозначение Designation SS d2 Qty d Range KIT BT40 MAXIN 20X85 6 40 20.00 6 6,8,10,12,14,16 KIT BT40 MAXIN 32X108 7 40 32.00 7 6,8,10,12,16,20,25 KIT BT50 MAXIN 20X105 6 50 20.00 6 6,8,10,12,14,16 KIT BT50 MAXIN 32X106 7 50 32.00 7 6,8,10,12,16,20,25 Each kit contains one power chuck, a set of SC-SPR collets, extraction hook and wrench. MAXIM BT MAS BT-FC-MAXIN Power Chucks with BT MAS-403 Face Contact AD Tapered Shanks SS d2 D3 L L1 L min L max J G 40 20.00 53.00 85.00 58.0 55.5 68.3 M16 M16 40 32.00 70.00 108.00 80.5 70.0 83.0 M16 M16 50 20.00 53.00 105.00 67.0 55.5 68.6 M16 M24 50 32.00 69.90 106.00 68.0 69.0 83.3 M20X2 M24 BT-FC Face Contact Taper 981 961-962 978-979 981 838-839 Обозначение Designation BT40 FC MAXIN20X85 BT40 FC MAXIN32X108 BT50 FC MAXIN20X105 BT50 FC MAXIN32X106 898 ISCAR
