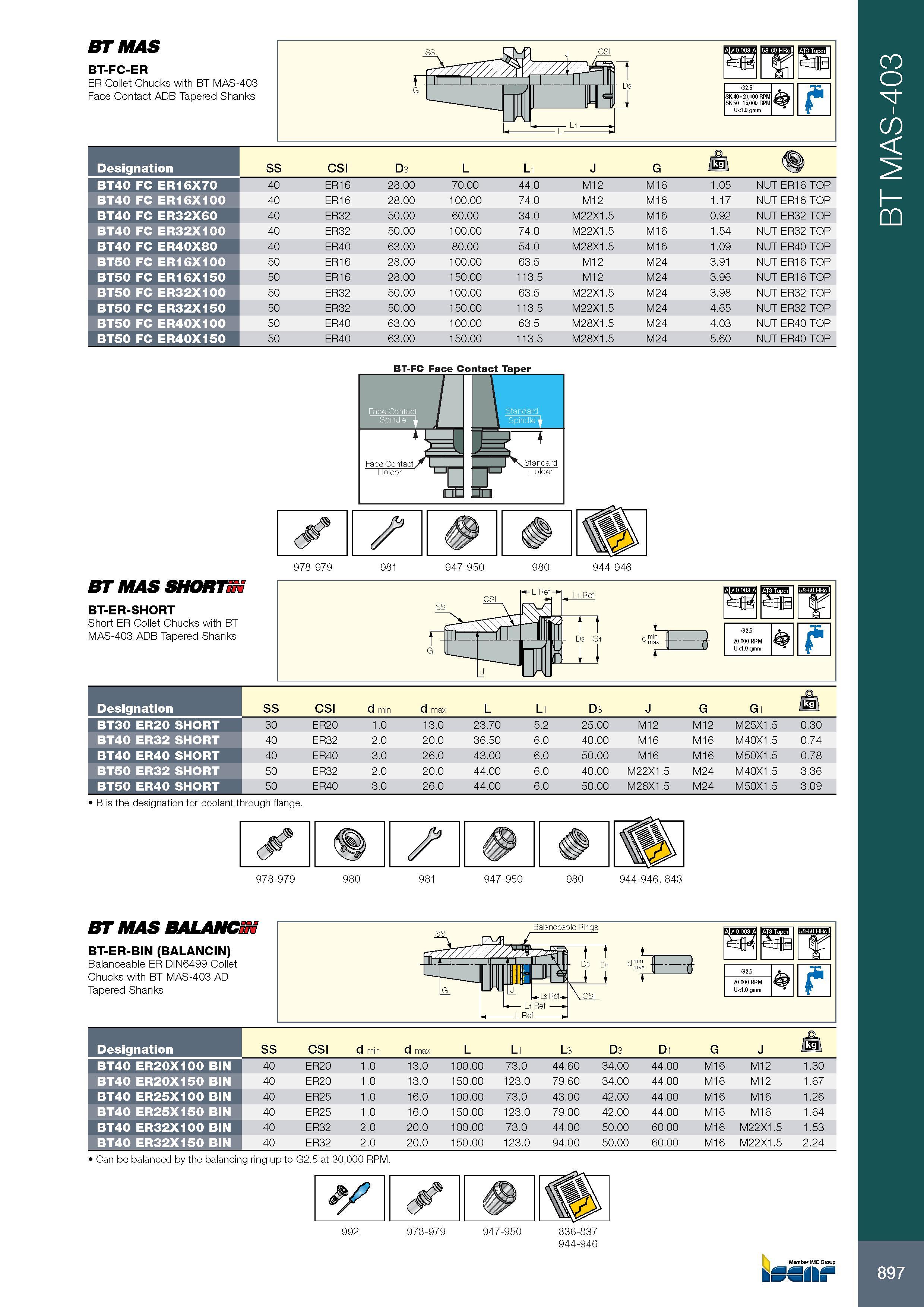

BT MAS BT-FC-ER ER Collet Chucks with BT MAS-403 Face Contact ADB Tapered Shanks Обозначение Designation SS CSI D3 L L1 J G IM BT40 FC ER16X70 40 ER16 28.00 70.00 44.0 M12 M16 1.05 NUT ER16 TOP BT40 FC ER16X100 40 ER16 28.00 100.00 74.0 M12 M16 1.17 NUT ER16 TOP BT40 FC ER32X60 40 ER32 50.00 60.00 34.0 M22X1.5 M16 0.92 NUT ER32 TOP BT40 FC ER32X100 40 ER32 50.00 100.00 74.0 M22X1.5 M16 1.54 NUT ER32 TOP BT40 FC ER40X80 40 ER40 63.00 80.00 54.0 M28X1.5 M16 1.09 NUT ER40 TOP BT50 FC ER16X100 50 ER16 28.00 100.00 63.5 M12 M24 3.91 NUT ER16 TOP BT50 FC ER16X150 50 ER16 28.00 150.00 113.5 M12 M24 3.96 NUT ER16 TOP BT50 FC ER32X100 50 ER32 50.00 100.00 63.5 M22X1.5 M24 3.98 NUT ER32 TOP BT50 FC ER32X150 50 ER32 50.00 150.00 113.5 M22X1.5 M24 4.65 NUT ER32 TOP BT50 FC ER40X100 50 ER40 63.00 100.00 63.5 M28X1.5 M24 4.03 NUT ER40 TOP BT50 FC ER40X150 50 ER40 63.00 150.00 113.5 M28X1.5 M24 5.60 NUT ER40 TOP BT-FC Face Contact Taper BT MAS SHORTiN BT-ER-SHORT Short ER Collet Chucks with BT MAS-403 ADB Tapered Shanks 978-979 981 947-950 980 944-946 G2.I 20,000 RPM U<1.0 gmm Обозначение Designation SS CSI d min d max L L1 D3 J G G1 M BT30 ER20 SHORT 30 ER20 1.0 13.0 23.70 5.2 25.00 M12 M12 M25X1.5 0.30 BT40 ER32 SHORT 40 ER32 2.0 20.0 36.50 6.0 40.00 M16 M16 M40X1.5 0.74 BT40 ER40 SHORT 40 ER40 3.0 26.0 43.00 6.0 50.00 M16 M16 M50X1.5 0.78 BT50 ER32 SHORT 50 ER32 2.0 20.0 44.00 6.0 40.00 M22X1.5 M24 M40X1.5 3.36 BT50 ER40 SHORT 50 ER40 3.0 26.0 44.00 6.0 50.00 M28X1.5 M24 M50X1.5 3.09 B is the designation for coolant through flange. 978-979 980 981 947-950 980 944-946, 843 BT MAS BALANCE BT-ER-BIN (BALANCIN) Balanceable ER DIN6499 Collet Chucks with BT MAS-403 AD Tapered Shanks Обозначение Designation SS CSI d min d max L L1 L3 D3 D1 G J n BT40 ER20X100 BIN 40 ER20 1.0 13.0 100.00 73.0 44.60 34.00 44.00 M16 M12 1.30 BT40 ER20X150 BIN 40 ER20 1.0 13.0 150.00 123.0 79.60 34.00 44.00 M16 M12 1.67 BT40 ER25X100 BIN 40 ER25 1.0 16.0 100.00 73.0 43.00 42.00 44.00 M16 M16 1.26 BT40 ER25X150 BIN 40 ER25 1.0 16.0 150.00 123.0 79.00 42.00 44.00 M16 M16 1.64 BT40 ER32X100 BIN 40 ER32 2.0 20.0 100.00 73.0 44.00 50.00 60.00 M16 M22X1.5 1.53 BT40 ER32X150 BIN 40 ER32 2.0 20.0 150.00 123.0 94.00 50.00 60.00 M16 M22X1.5 2.24 Can be balanced by the balancing ring up to G2.5 at 30,000 RPM. 897 BT MAS-403
